Pan Tilt Zoom (PTZ) Cameras

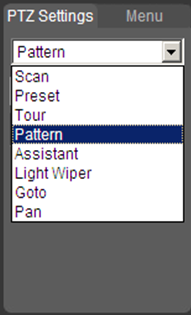

PTZ Features
Name | Description | Instructions |
Scan | It is the function that the speed dome can horizontally scan back and forth to display image with a certain speed in a certain range. The speed dome can scan back and forth with a certain speed in a set range after left and right limit and scan speed are set. The function can be realized via OSD as well. | |
Preset | Preset function is to make the speed dome save the address parameters into the memorizer (such as PTZ pan/tilt, focal length and etc), and it can quickly call these parameters to adjust the PTZ and camera to the location when necessary, the operator can store and call preset via control keyboard conveniently. | |
Tour | It is the built-in function that it can arrange some presets into the auto tour list according to the needed sequence via programming in advance, and then the users can make the speed dome move back and forth at a regular interval according to the preset sequence which is set in advance via control keyboard conveniently. | |
Pattern | Memorize dome operation such as pan, tilt, and zoom to repeat. You can call it to repeat the previous operation. | |
Light Wiper | It is to set wiper mode, enable time, stop time, interval, wiper control etc. | |
Goto | This feature allows the PTZ to travel to a specific location based on coordinates. | |
Pan | The Pan feature allows the PTZ to move between two pre-established points. |
Advanced PTZ Features
Advanced | |
Pre-Set Triggers | How to Set Up a PTZ to Move to a Preset when Motion is Detected by a Stationary Camera |
Auto Tracking | |
- https://imaxcampro.com/PTZ/Instructions/OSD
- https://imaxcampro/PTZ/Instructions/Electronic_Image_Stabilization_EIS
- https://imaxcampro/PTZ/Instructions/Dip_Switch_Settings
- https://imaxcampro/PTZ/Instructions/RS485
- https://imaxcampro/PTZ/Instructions/Predictive_Focus_Algorithm_PFA
- https://imaxcampro/PTZ/Instructions/Preset_Trigger_from_Fixed_Camera
IVS
IVS | ||||||
Name | Icon | Type | Description | Instructions | ||
Auto Tracking |
| Advanced IVS | PTZ tracking is an innovative feature that transforms manually controlled PTZ cameras into automated tracking systems that keep an moving object in focus and centered in the frame. It follows the object where stationary cameras would lose the object once out of the fixed cameras field of view. | |||
Smart Tracking |
| Premium IVS | Smart tracking is the linked monitoring between the PTZ camera and other devices, such as Radar and Thermal camera. When the camera detects the target, it sends signals to the PTZ camera for tracking. | |||
Products
- IP PTZs
- HD-CVI Cameras
Modelsâ–¼ | Image â–¼ | Resolution â–¼ | Optical Zoom â–¼ | Specifications â–¼ | Manual â–¼ | Main Firmware â–¼ | PTZ Firmware â–¼ | EOL â–¼ |
1A404DBNR â–¼ |
| 4MP â–¼ | 4x â–¼ | â–¼ | â–¼ | â–¼ | â–¼ | Active â–¼ |
| 4MP | 45x | Build Date: 10-19-2022 | Active | ||||
| 4MP | 25x | Active | |||||
| 4MP | 25x | Active | |||||
| 8MP | 25x | Build Date: 5-19-2022 | Build Date: 09-06-2022 | Active | |||
| 4MP | 25x | Build Date: 12-27-2022 | Build Date: 03-18-2023 | Active | |||
| 8MP | 40x | Build Date: 08-18-2022 | Build Date: 06-16-2022 | Active | |||
| 4MP | 32x | Build Date: 8-4-2022 | Build Date: 8-16-2021 | Active | |||
| 4MP | 32x | Build Date: 8-4-2022 | Build Date: 8-16-2021 | Active | |||
| 2MP | 32x | Build Date: 8-4-2022 | Build Date: 8-16-2021 | Active | |||
| 2MP | 30x | Build Date: 8-4-2022 | Build Date: 8-16-2021 | Active | |||
| 2MP | 30x | Build Date: 8-23-2017 | Build Date: 8-21-2017 | EOL | |||
| 2MP | 30x | Build Date: 8-23-2017 | Build Date: 8-21-2017 | EOL | |||
| 2MP | 12x | Build Date: 1-16-2018 | Build Date: 1-9-2018 | EOL | |||
| 2MP | 12x | Build Date: 1-16-2018 | Build Date: 1-9-2018 | EOL | |||
m | 2MP | 12x | Build Date: 1-16-2018 | Build Date: 1-9-2018 | EOL | |||
| 2MP | 30x | Build Date: 6-1-2017 | Build Date: 12-6-2015 | EOL | |||
DH-SD6CA230TN-HNI |
| 2MP | 30x | Build Date: 6-1-2017 | Build Date: 11-21-2015 | EOL | ||
| 2MP | 30x | Build Date: 6-1-2017 | Build Date: 11-28-2015 | EOL | |||
| 4MP | 30x | Build Date: 10-11-2021 | Build Date: 3-3-2020 | No | |||
| 4MP | 30x | Build Date: 10-11-2021 | Build Date: 3-3-2020 | No | |||
| 4MP | 30x | Build Date: 10-11-2021 | Build Date: 9-23-2019 | No | |||
| 5MP | 30x | Build Date: 10-11-2021 | Build Date: 12-24-2019 | EOL | |||
| 4MP | 30x | Build Date: 10-11-2021 | Build Date: 8-14-2017 | Yes | |||
| 2MP | 30x | Build Date: 10-11-2021 | Build Date: 9-23-2019 | Yes | |||
| 2MP | 30x | Build Date: 10-11-2021 | Build Date: 3-3-2020 | No | |||
| 2MP | 45x | Build Date: 10-11-2021 | Build Date: 12-24-2019 | No | |||
| 2MP | 30x | Build Date: 7-6-2021 | Build Date: 9-23-2019 | No | |||
| 2MP | 30x | Build Date: 7-6-2021 | Build Date: 9-23-2019 | Yes | |||
| 8MP | 30x | Build Date: 10-30-2019 | Build Date: 12-24-2019 | EOL | |||
| 2MP | 40x | Build Date: 10-30-2019 | Build Date: 5-29-2019 | No | |||
| 2MP | 3x | Build Date: 7-5-2021 | N/A | No | |||
| 2MP | 3x | Build Date: 7-5-2021 | N/A | No | |||
| 2MP | 4x | Build Date: 7-5-2021 | N/A | No | |||
| 2MP | 4x | Build Date: 6-1-2017 | Build Date: 4-10-2017 | No | |||
| 2MP | 4x | Build Date: 10-14-2021 | N/A | No | |||
| 2MP | 25x | Build Date: 7-5-2021 | Build Date: 9-23-2019 | No | |||
| 2MP | 25x | Build Date: 7-10-2021 | Build Date: 12-13-2019 | No | |||
| 2MP | 30x | Build Date: 8-4-2022 | Build Date: 2-19-2020 | No | |||
| 4MP | 45x | Build Date: 8-4-2022 | Build Date: 09-03-2021 | No | |||
| 2MP | 32x | Build Date: 8-4-2022 | Build Date: 12-13-2022 | No | |||
| 2 x 2MP | 25x | Build Date: 5-14-2020 | Build Date: 12-13-2019 | No | |||
| 4MP | 25x | Build Date: 8-4-2022 | Build Date: 2-19-2020 | No | |||
| 4MP | 45x | Build Date: 8-4-2022 | Build Date: 12-13-2022 | No | |||
| 4MP | 4x | Build Date: 8-4-2022 | N/A | No |
Pelco Users
For PELCO protocol user, please refer to the following special functions:
- Call preset: Call preset 28 or preset 95 to go to dome menu. Call preset 29 or preset 99 to go to scan. Call preset 24 or preset 81 to go to pattern. Call preset 25 or preset 82 to go to tour. Call preset 30 or preset 96 to stop scan or pattern. Call preset 31 or preset 83 to begin rotation. Call preset 33 to enable PTZ 180 degrees rotation. Call preset 34 to set dome position as 0.
- Set preset: Set preset 26 or 92 to set scan left limit. Set preset 27 or 93 to set scan right limit. Set preset 22 or 79 to begin record. Set preset 23 or 80 to stop record.
Old Docs
Table
Interface | WebUI | SmartPSS 2.0 |
Scan | ||
Preset | ||
Tour | ||
Pattern | ||
Light Wiper | Use WebUI | |
Goto | Use WebUI | |
Pan |
Advanced | |
Pre-Set Triggers | How to Set Up a PTZ to Move to a Preset when Motion is Detected by a Stationary Camera |
Auto Tracking | |
