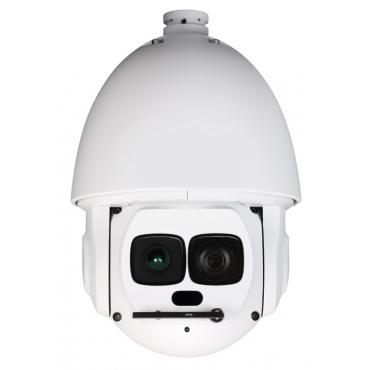

DH-SD6ALA230FN-HNI

Specifications

Manual

Firmware

PTZ Firmware

Build Date: 8-23-2017

Build Date: 8-21-2017

Image Sensor:

1/1.9-in. Exmor CMOS

Resolution:

1944 H x 1092 V

Angle of View:

Horizontal: 61.2° to 2.1°

Lens Type:

Motorized/ Auto Iris

Focal Length:

6 mm to 180 mm

Optical Zoom:

30x

Min. Illumination:

Color: 0.002 Lux at F1.6;
 B/W: 0.0002 Lux at F1.6;
 0 Lux (IR on)

Day/Night:

Auto (ICR), Color, B/W

Max. IR Range:

Up to 500 m (1640 ft)

WDR:

120dB

Video Compression:

Smart H.265+ / MJPEG

Audio Compression:

G.711a / G.711Mu (32 kbps)/ PCM (128 kbps)

Frame Rate:

1080p, D1 at 30 fps, 720p at 60 fps

Multi-Streaming:

3 Streams

Pan/Tilt Range:

Pan: 0° to 360° Endless
 Tilt: -20° to 90°, Auto Flip 180°

Preset Speed:

300 Presets
 Pan: 240° /s
 Tilt: 200° /s

IVS:

Motion, Tripwire, Intrusion,
 Scene Change, Abandoned/Missing Object,
 Facial Detection, Heat Map, Auto-tracking

ONVIF:

Yes

Audio In:

One (1) Channel

Audio Out:

One (1) Channel

Memory Slot:

Micro SD Slot, maximum 128 GB

Alarm In:

Seven (7) Channels

Alarm Out:

Two (2) Channels

IP Rating:

67

IK Rating:

-

Operating Temp:

–40° C to +70° C (–40° F to +158° F)
 Less than 90% RH

Power:

24 VAC, 3 A (± 25%), Hi-PoE
 < 38 W

ePoE:

No

Products with H.264

Products with H.265

Products with H.265 Plus

WebUI Old

SmartPSS

DSS Express S

Camera Height: 10m
 Focal Length: 6mm
 Target Horizontal Dist: 82.7m

Camera Height: 10m
 Focal Length: 180mm
 Target Horizontal Dist: 2500m

PFB303W

 PFA111

PFB300C

PFA111

PFA120

PFB303W

PFA111

PFA140

PFB303W

PFA111

PFA150

PFB303W

PFA111

PFA150

PFB300C

PFA111

PFA150

PFA120

PFB303W

PFA111

PFA150

PFA140

PFB303W

PFA111

PFA151

PFB303W

PFA111

PFA151

PFB300C

PFA111

PFA151

PFA120

PFB303W

PFA111

PFA151

PFA140

PFB303W

PFA111

PFA111

PFB303S

PFA112

PFA113
