How to Set Up a PTZ to Move to a Preset when Motion is Detected by a Stationary Camera


:
from
to
Clear all

PTZ Activation Setup


Description

This article will explain setting up a fixed camera on motion detection to trigger a NVR to move a PTZ to a preset.

Prerequisites

  • Imaxcampro IP camera (motion detection capability)
  • Imaxcampro  NVR or HDCVI DVR (both cameras added)
  • Imaxcampro  Network PTZ (with at least 1 preset)



Step by Step Instructions

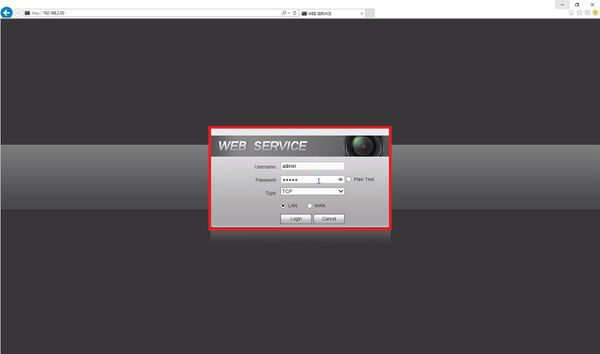

1. Log into the NVR.

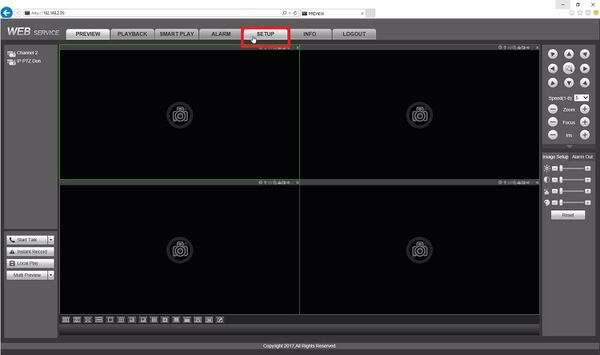

2. Select setup.


3. Select Event -> Video Detection then select the Enable checkbox. Make sure period and region are set up correctly and trigger appropriately. Now check PTZ Activation and then select setup.

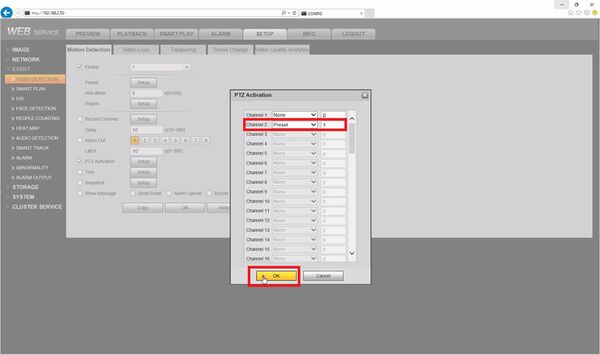

4. On the channel with the PTZ select the preset function and then type in the preset and then select OK.


5. Now select OK to Successfully saved! and wait 1 minute.

6. Go ahead and test this solution!
