52C430UNI


USA/IPCamera/PTZ/Pro/52C430UNI


52C430UNI

52C430UNI

Specifications

Manual

Firmware

PTZ Firmware



arrow down.png

Build Date: 10-11-2021


Build Date: 3-3-2020


FOV

https://dahuawiki.com/images/thumb/1/17/2.0MP%2C1.2.8%2C4.5mm%2C80.2m.JPG/200px-2.0MP%2C1.2.8%2C4.5mm%2C80.2m.JPG

Camera Height: 10m
 Focal Length: 4.5mm
 Target Horizontal Dist: 80.2m


https://dahuawiki.com/images/thumb/3/30/2.0MP%2C1.2.8%2C135mm%2C2424.5m.JPG/200px-2.0MP%2C1.2.8%2C135mm%2C2424.5m.JPG

Camera Height: 10m
 Focal Length: 135mm
 Target Horizontal Dist: 2424.5m



Hardware Reset Instructions

In order to access the hardware reset button on the camera you must remove the outer casing and shell.

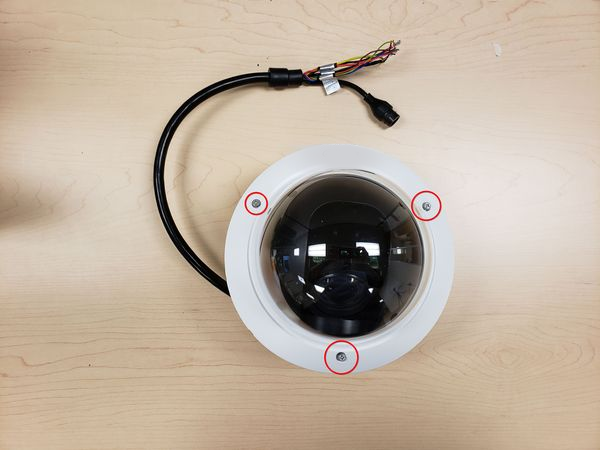

Remove the three (3) screws in the outer casing

Ptz reset 52c430uni - 1.jpg

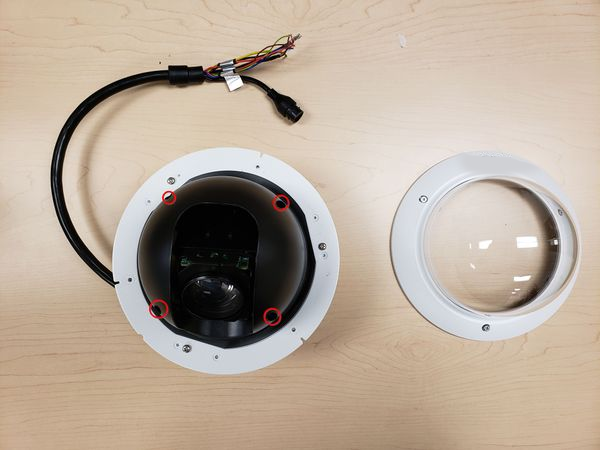

Remove the four (4) screws in the dome covering

Ptz reset 52c430uni - 2.jpg

Remove the shell covering the camera

Ptz reset 52c430uni - 4.jpg

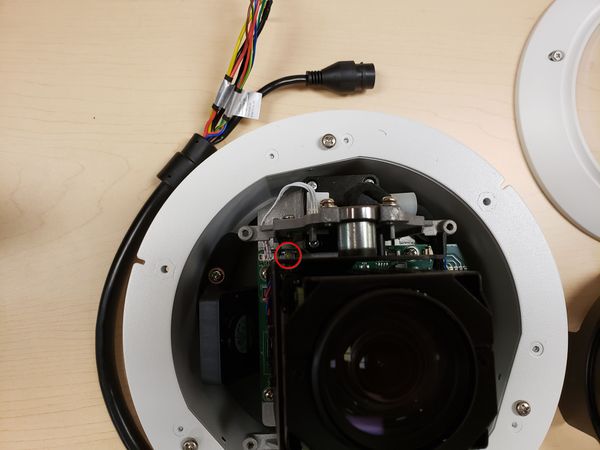

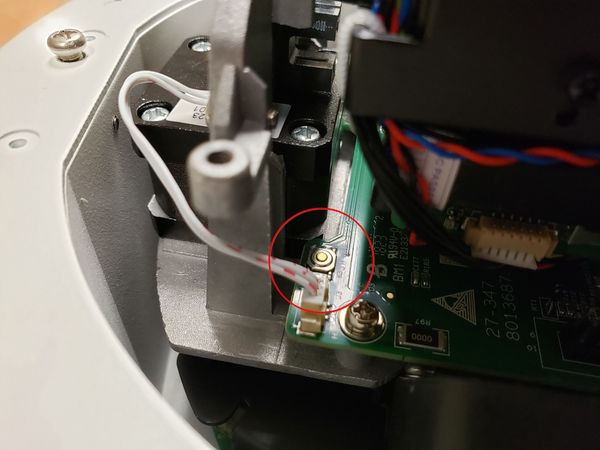

The hardware reset button is circled

Ptz reset 52c430uni - 5.jpg


 Press and hold the reset button down for 30 seconds with the camera powered on.

After releasing the button the camera should be reset.
