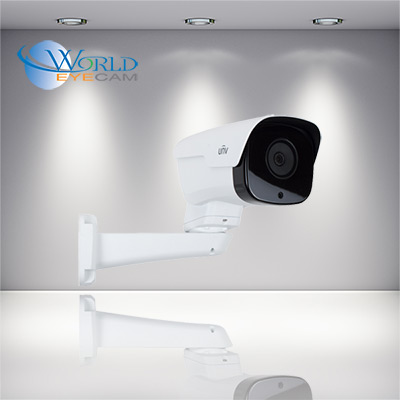

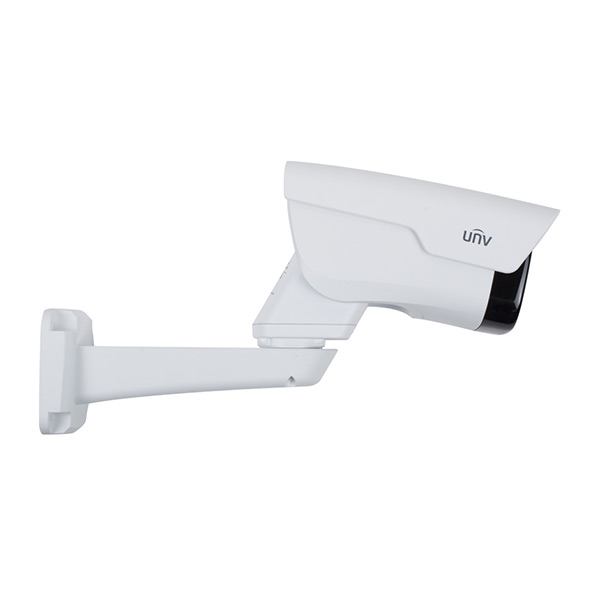

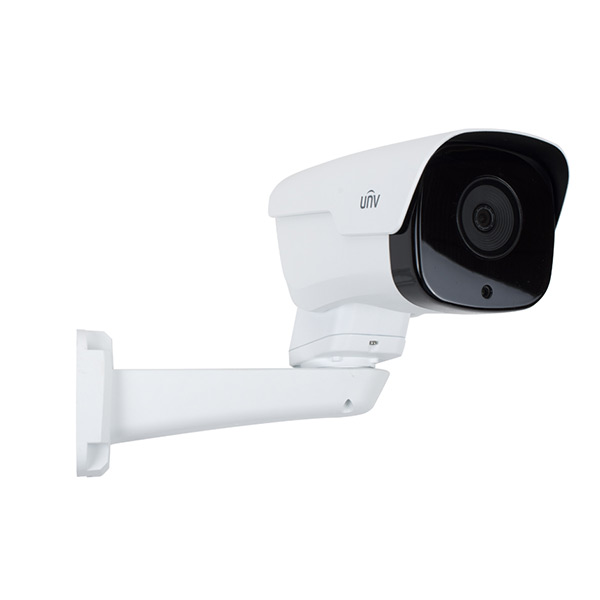

IPC744SR5-PF40-32G- 4MP Fixed Lens IP Pan/Tilt Bullet Camera w/ Audio
SKU: WEC-IPC744SR5-PF40-32G
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
This UNV (Uniview) 4MP Fixed Lens IR PT (Pan/Tilt) camera has multiple golden features that are direly needed for your professional / residential adobes. It can provide up to a 4 megapixel resolution and comes with a 4mm fixed lens, which provides a wide horizontal view. With infrared night vision as well as an added feature called Smart IR, the camera allows you to maintain perfect vision in total darkness at distances of up to 164ft (50m). With a Pan and Tilt head mechanism, you have the ability to pan 250° and tilt up and down up to 50°. The structure is built in a sturdy manner to bear bad weather such as dust or rain storms thanks to its IP66 protection.
The H.264 compression greatly reduces the size of your digital video files without compromising the image quality and saving your hard drive storage space. With the intelligent technology this security camera was created with you can control the movement and direction of it simply by using your mobile’s applications or monitor prefixes. With the pan/tilt/zoom feature of this camera it will be easy for you to keep an eye on all your surroundings.
The UNV Uniview - 4MP Fixed Lens IR PT Camera
Product Features
PTZ
- Precision motor with accuracy deviation less than 0.1 degree
- Pan range 250°, tilt range -50° to 50°
- Pan speed up to 30°/s, tilt speed up to 10°/s
Optics
- Smart IR, up to 50m (164 ft) IR distance
- IR anti-reflection window to increase the infrared transmittance
- Day/night functionality
Compression
- H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- Customized OSD
Network
- ONVIF Conformance
Structure
- Support PoE power supply
- Wide temperature range: -35°C to +60°C (-31°F to +140°F)
- Wide voltage range of ±25%
- IP66
Infrared
Smart IR Technology: This item comes with infrared technology, meaning not only can you see a longer distance in the dark but to bump up the ante, it also has "Smart IR" which will adjust based off of the situation to give you an optimal image.
PTZ Control
3D Intelligent Positioning: This features let you digitally control your PTZ cameras (move up, move down, move left, move right, zoom in and zoom out) from your monitor and mobile applications.
H.264 Compression
H.264 Real-time Recording and Playback: Its H.264 compression greatly reduces the size of your digital video files without compromising the image quality (compared to other compression standards, such as M-JPEG and MPEG-4). H.264 is a stable, proven compression technology, which offers unbeatable recording picture quality while at the same time saving you valuable hard drive storage space.
Custom System Design
Worldeyecam offers free consultations and system designs, so if the bundled kits don't have what you need, please do not hesitate to call us (1-888-211-2288) or send in a sales request or e-mail. We are open Monday through Friday at 8AM to 5PM Pacific time.
| SPECIFICATIONS | |
|---|---|
| Model | IPC744SR5-PF40-32G |
| Camera: | |
| Sensor | 1/3", 4 megapixel, progressive scan CMOS |
| Lens | 4.0mm@F1.8 |
| Shutter | Auto/Manual, 1/6s ~ 1/8000s |
| Minimum Illumination | Color: 0.02 Lu× (F1.8, AGC ON) 0 Lux with IR on |
| Day / Night | IR-cut filter with auto switch (ICR) |
| IR | 50m (164 ft) IR range |
| S/N Ratio | >55dB |
| WDR | Digital |
| Noise Reduction | 2D/3D |
| Video | |
| Max. Resolution | 2592 × 1520 |
| Compression | H.265, H.264, MJPEG |
| Frame Rate | 4MP (2592 × 1520): Max. 20 fps; 4MP (2560 × 1440): Max. 25 fps 3MP (2048 × 1520): Max. 30 fps; 1080P (1920 × 1080): Max. 30 fps |
| Video Streaming | Triple Streams |
| OSD | Up to 8 OSDs |
| ROI | Supported |
| Privacy Mask | Supported |
| Smart | |
| Behavior Detection | Intrusion, crossing line, motion detection |
| Exception Detection | Audio detection |
| Intelligent Identification | Face detection |
| Statistical Analysis | People counting |
| Audio | |
| Audio Compression | G.711 |
| Two-way audio | Supported |
| Storage | |
| Edge Storage | Built-in 32 GB eMMC |
| Network | |
| Protocols | L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x |
| Compatible Integration | ONVIF, API |
| Pan & Tilt | |
| Pan Range | 250° |
| Pan Speed | 0.1°/s ~ 30°/s Preset speed: 30°/s |
| Tilt Range | -50° ~ 50° |
| Tilt Speed | 0.1°/s ~10°/s Preset speed: 10°/s |
| Number of Presets | 400 |
| Patrol | Up to 16 patrols, up to 32 presets per patrol (Note: The total number of patrols and patterns is 16.) |

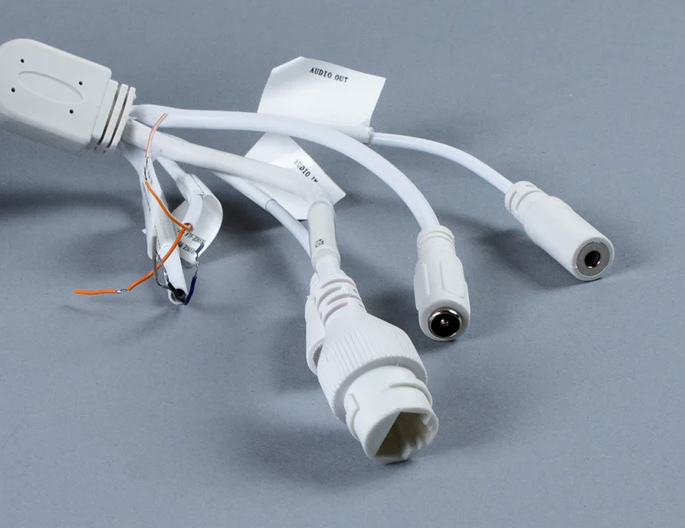

| Interface | |
| Audio I/O | 3.5 mm connector 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] 1 Output: impedance 600 Ω; amplitude 2 V [p-p] |
| Alarm I/O | 2 / 1 |
| Network | 10M/100M Base-TX Ethernet |
| General | |
| Power | 12 V DC±25%, PoE (IEEE802.3at) Power consumption: Max. 17.23 W |
| Dimensions (Ø x H) | 357 mm × 106 mm × 194 mm (14.1" × 4.2" × 7.7") |
| Weight | 1.16 kg (2.6 lb) |
| Working Environment | –35°C to +60°C (-31°F to 140°F), ≤ 95% RH |
| Ingress Protection | IP66 |
Camera Installation Guide-V1.00
Network Cameras User Manual-V2.03
