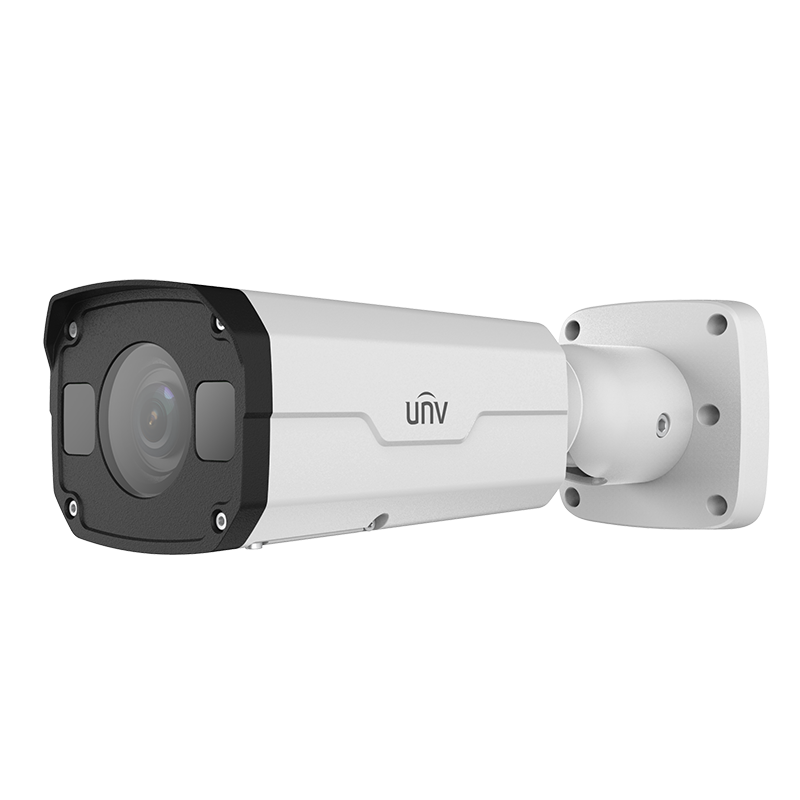

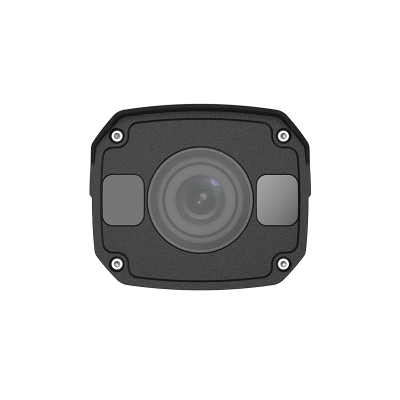

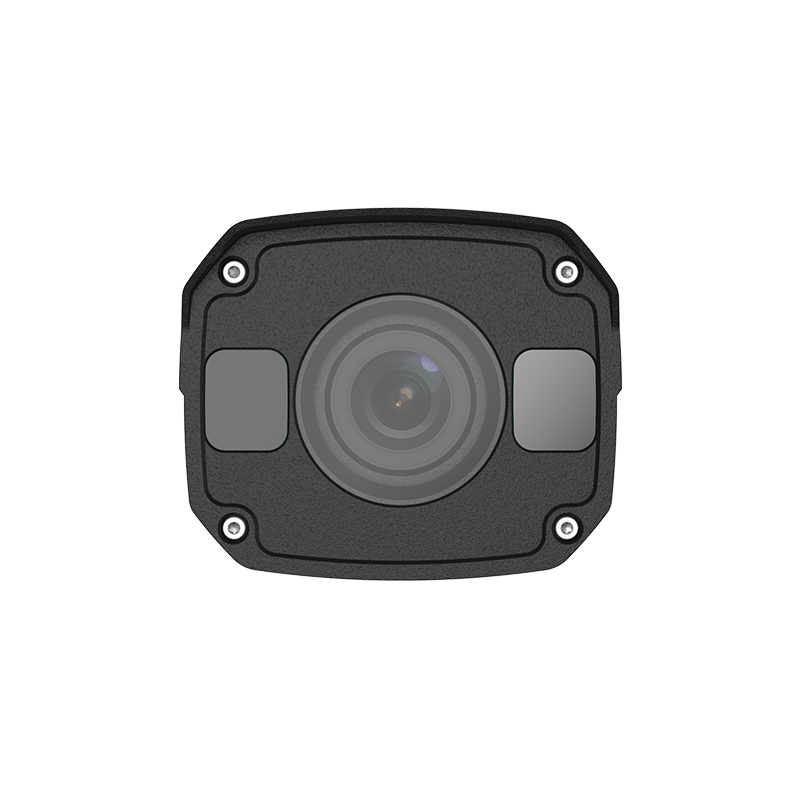

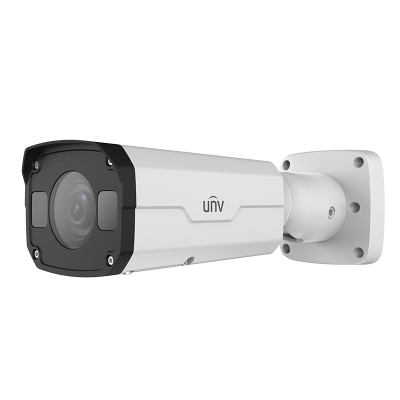

        IPC2325EBR5-DUPZ - UNV Uniview - 5 MP Starlight Bullet IP Camera True 120dB Wide Dynamic Range 2.7-13.5mm Motorized Lens

        SKU: IPC2325EBR5-DUPZ
        Uniview
        SKU: IPC2325EBR5-DUPZ

        This is a 5 megapixel resolution IP bullet camera. It has a 2.7-13.5mm motorized lens. Starlight Infrared night vision allows the security camera to see color up to 98 feet in total darkness. The surveillance camera also comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant.



        Product Features

        Optics

        • Day/night functionality
        • Smart IR , up to 50 m (164 ft) IR distance
        • Up to 120 dB WDR (Wide Dynamic Range)
        • 2D/3D DNR (Digital Noise Reduction)

        Compression

        • Ultra 265, H.265, H.264, MJPEG
        • Embedded smart algorithm
        • Triple streams
        • ROI (Region of Interest)
        • 9:16 corridor mode
        • Customized OSD
          • 11% less
          Market price:$537.00 save $58.00
        • $479.00

        OR

        Log-in or REGISTER HERE to view EXCLUSIVE pricing.


        The UNV (Uniview) 5MP Motorized VF Network IR Bullet Camera is a 5 megapixel resolution IP bullet camera. It has a 2.7-13.5mm motorized lens. Starlight Infrared night vision allows the security camera to see up to 164 feet in total darkness. The surveillance camera also comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant.



        Product Features

        Optics

        • Day/night functionality
        • Starlight Illumination - 0.001 Low Lux Rating
        • Smart IR , up to 50 m (164 ft) IR distance
        • Up to 120 dB WDR (Wide Dynamic Range)
        • 2D/3D DNR (Digital Noise Reduction)

        Compression

        • Ultra 265, H.265, H.264, MJPEG
        • Embedded smart algorithm
        • Triple streams
        • ROI (Region of Interest)
        • 9:16 corridor mode
        • Customized OSD

        Network

        • ONVIF Conformance

        Structure

        • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
        • Wide voltage range of ±25%
        • IP67

        STARLIGHT



        Uniview 1080P starlight camera provides crisp color image even under 0.002 Lux (F1.2) low light condition.

        Ability to produce clear colored image even in star light condition and without any supplementary lighting. As the definition of camera improves, the sensor area corresponds to single pixel reduces, making low light imaging, especially low light color imaging, more and more difficulty





        Long-Range POE - 928 ft.


        Even though the camera’s location is hundreds of feet away from NVR, you can still easily connect cameras directly to NVR for both power supply and video streaming because UNV NVR supports up to 928 Ft long rang PoE. It helps to make your store under protection 24/7 with only a few steps during installation.









        Cloud Upgrade



        If your camera is connected to a network with Internet access, you may utilize the Internet cloud update feature to check online to see if a new version is available and to perform the update.

        Bring up the main menu on your Uniview NVR by right-clicking with the mouse or left-clicking on the Home icon on the menu bar (if available). Using the mouse, left-click on Maintain and then Upgrade and then select the tab entitled Upgrade by Cloud. You will be shown the current version of firmware installed on the camera and can click on the Check button at the bottom to see if a more recent version is available. If a new version is available, you need only to click on the Upgrade button at the bottom and the download and upgrade process will begin. After updating, the camera will automatically reboot.







        Wide Temperature Range


        Uniview' s cameras can function well under -40 ℃ ~ 70 ℃ , adapting to all harsh environment condition.







        U.265 Compression



        By combining U-Code and H.265, Ultra 265 can squeeze up to 95% bandwidth and storage space.

        Unlike conventional video compression technologies which tries to reduce storage costs by sacrificing resolution and frame rate indiscriminately, U-Code chooses to use "IRP" (Intelligent Region Perception) to detect motion in each frame. Hence, scenes containing interesting information could be preserved while the other relatively static area such as lawns, white walls could be squeezed to save storage.












        UNV Customer System Kit Builder



        Designing a unique surveillance system for your home or business is as easy as clicking your mouse with our new Custom Kit Builder. With intuitive prompts that guide you along the way, you are in control of your camera styles, NVR or DVR size, power accessories and hard drive space. Still have questions, give us a call, our expert technicians are here to help. Your brand new system is only a few clicks away.

        UNV IP System Builder
        Click Here








        SPECIFICATIONS
        ModelIPC2325EBR-DUPZ
        Camera:
        Sensor1/2.7” progressive scan, 5 megapixel, CMOS
        Lens2.7mm~13.5mm @F1.2; (Angle of view(H): 93.38°~28.56°)
        Zoom/FocusMotor drive
        Minimum IlluminationColour: 0.002 Lux (F1.2, AGC ON)
        0 Lux with IR on
        Day / NightIR-cut filter with auto switch (ICR)
        S/N>55 dB
        IRUp to 30m (98 ft) IR range
        Video
        Max. Resolution2592 × 1520
        CompressionUltra 265/H.265/H.264/MJPEG
        Frame Rate5MP (2592×1944): Max. 20 fps; 4MP (2560×1440): Max. 30 fps
        Video StreamingTriple
        9:16 Corridor ModeSupported
        ROISupported
        OSDUp to 8 OSDs
        Privacy MaskUp to 4 areas
        Smart
        Behavior DetectionIntrusion, crossing line, motion detection
        Intelligent IdentificationFace detection
        Statistical AnalysisPeople counting
        Exception DetectionAudio detection
        Audio
        Audio CompressionG.711
        Two-way audioSupported
        Storage
        Edge StorageMicro SD, up to 128GB
        Network
        ProtocolsL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
        Compatible IntegrationONVIF, API
        Interface
        Audio I/Oaudio cable
        1 Input: impedance 35 kΩ; amplitude 2 V [p-p]
        1 Output: impedance 600 Ω; amplitude 2 V [p-p]
        Alarm I/O1 / 1
        Network10M/100M Base-TX Ethernet
        General
        Power12 V DC, or PoE (IEEE802.3 af)
        Power consumption: Max9W
        Dimensions (L × W × H)
        Power consumption: Max 5.5 W
        253.4 × 86.4 × 78.7 mm (10” × 3.4” × 3.”)
        Weight0.58kg (1.28lb)
        Working Environment-35℃~60℃ (-31℉ ~ 140℉), Humidity ≤ 95% RH (non-condensing)
        Vandal ResistantN/A
        Ingress ProtectionIP67
