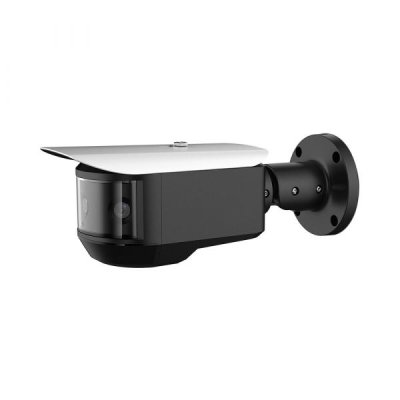

iMaxCamPro HCC7761-IRM1 | 3X2MP Multi-Sensor Panoramic HDCVI IR-Bullet Camera

iMaxCamPro
SKU: WECIHCC7761-IRM1

Features



  • Three 1/2" 8Megapixel progressive scan CMOS
  • 1 panoramic view &3 individual 2MP video output simultaneously
  • Max. 15fps@4K, 25fps@4M
  • 120dB true WDR, 2D&3D NR
  • HDCVI starlight technology
  • Max.20m IR distance
  • IP67&IK10 ingress protection
  • Up to 500m transmission with RG59 coaxial cable



Image SensorThree 1/2.8" 2MP STARVIS TM CMOS
Image Size4K(3840x832)/4M(2560x554)
Electronic ShutterPAL:1/4s~1/100,000s NTSC:1/3s~1/100,000s
Minimum Illumination0.005Lux/F1.8( Color), 30IRE,0Lux/F1.8(IR on)
S/N RatioMore then 65dB
IR LEDs6
Smart IRSupport
IR Distance20m
IR On/Off ControlAuto / Manual
Focal Length3.6mm
Angle of ViewH: 180°
Max. ApertureF1.8
Optical ZoomN/A
Close Focus Distance500mm (19.7")
DORI Distance
 DORI DefinitionDistance
Detec25px/m (8px/ft)50m(163ft)
Observe63px/m (19px/ft)20m(65ft)
Recognize125px/m (38px/ft)10m(33ft)
Identify250ppm (76px/ft)5m(16ft)
Pan / Tilt / RotationPan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotation: 0° ~360°
Video CompressionN/A
Video Resolution4K (3840X2160)/4MP(2560×1440)
Video Frame RatePAL: 3840x2160@12.5fps, 2560x1440@25fps; NTSC: 3840x2160@15fps, 2560x1440@30fps
Day / NightAuto (ICR) / Manual
BLC ModeBLC / HLC / WDR
White BalanceAuto / Manual
Gain ControlAGC
Digital Noise Reduction2D/3D
Motion DetectionN/A
Audio CompressionN/A
Video Output1-channel BNC HDCVI panoramic video output & 3-channels BNC 2MP HDCVI video output
CertificationsCE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Audio Interface1-channel audio in
RS485N/A
Alarm In2
Alarm Out1
Power Supply24V AC ±25%
Power Consumption22W
Operating Temperature-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH; Start up should be done at above -40°C (-40°F)
Storage Temperature-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress ProtectionIP67 & IK10
Dimensions286mm x 119mmx 106mm(11.26"×4.68"×4.19")
WeightNet Weight 2.05kg (4.5lb) Gross Weight 2.43kg (5.36lb)
    • 50% less
    Market price:$476.00 save $238.00
  • $238.00
Qty:
OR

Features



  • Three 1/2" 8Megapixel progressive scan CMOS
  • 1 panoramic view &3 individual 2MP video output simultaneously
  • Max. 15fps@4K, 25fps@4M
  • 120dB true WDR, 2D&3D NR
  • HDCVI starlight technology
  • Max.20m IR distance
  • IP67&IK10 ingress protection
  • Up to 500m transmission with RG59 coaxial cable



Image SensorThree 1/2.8" 2MP STARVIS TM CMOS
Image Size4K(3840x832)/4M(2560x554)
Electronic ShutterPAL:1/4s~1/100,000s NTSC:1/3s~1/100,000s
Minimum Illumination0.005Lux/F1.8( Color), 30IRE,0Lux/F1.8(IR on)
S/N RatioMore then 65dB
IR LEDs6
Smart IRSupport
IR Distance20m
IR On/Off ControlAuto / Manual
Focal Length3.6mm
Angle of ViewH: 180°
Max. ApertureF1.8
Optical ZoomN/A
Close Focus Distance500mm (19.7")
DORI Distance
 DORI DefinitionDistance
Detec25px/m (8px/ft)50m(163ft)
Observe63px/m (19px/ft)20m(65ft)
Recognize125px/m (38px/ft)10m(33ft)
Identify250ppm (76px/ft)5m(16ft)
Pan / Tilt / RotationPan: 0° ~ 360°; Tilt: 0° ~ 90°; Rotation: 0° ~360°
Video CompressionN/A
Video Resolution4K (3840X2160)/4MP(2560×1440)
Video Frame RatePAL: 3840x2160@12.5fps, 2560x1440@25fps; NTSC: 3840x2160@15fps, 2560x1440@30fps
Day / NightAuto (ICR) / Manual
BLC ModeBLC / HLC / WDR
White BalanceAuto / Manual
Gain ControlAGC
Digital Noise Reduction2D/3D
Motion DetectionN/A
Audio CompressionN/A
Video Output1-channel BNC HDCVI panoramic video output & 3-channels BNC 2MP HDCVI video output
CertificationsCE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Audio Interface1-channel audio in
RS485N/A
Alarm In2
Alarm Out1
Power Supply24V AC ±25%
Power Consumption22W
Operating Temperature-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH; Start up should be done at above -40°C (-40°F)
Storage Temperature-30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress ProtectionIP67 & IK10
Dimensions286mm x 119mmx 106mm(11.26"×4.68"×4.19")
WeightNet Weight 2.05kg (4.5lb) Gross Weight 2.43kg (5.36lb)
    • SKU
      WECIHCC7761-IRM1
  • Manufacturer
    iMaxCamPro
  • Camera Type
    Bullet
  • Camera Signal
    IP
  • Camera Resolution
    4K
  • Shipping Lead Time
    Ships Same Day
