        • 4MP Fixed Vandal Dome Network Camera
        • 4MP Fixed Vandal Dome Network Camera

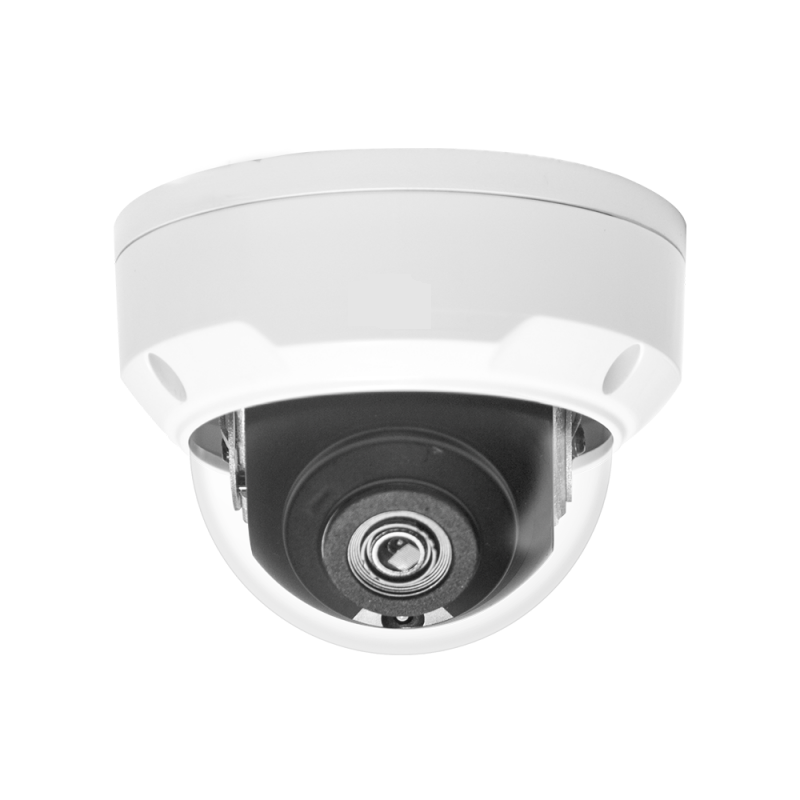

        4MP Fixed Vandal Dome Network Camera

        SKU: WEC-IPC324LR3VSPF28D
        WEC
        SKU: WEC-IPC324LR3VSPF28D

        Features

        • Day/night functionality
        • Smart IR , up to 30 m (98 ft) IR distance
        • Car-grade LEDs, brighter and uniform light compensation
        • 2D/3D DNR (Digital Noise Reduction)
        • Ultra 265,H.265, H.264, MJPEG
        • Triple streams
        • ROI (Region of Interest)
        • Customized OSD
        • ONVIF Conformance
        • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
        • Wide input voltage range of ±25%
        • 2-Axis
        • IK10 vandal resistant
        • IP66
          • 50% less
          Market price:$228.00 save $114.00
        • $114.00

        OR

        Features

        • Day/night functionality
        • Smart IR , up to 30 m (98 ft) IR distance
        • Car-grade LEDs, brighter and uniform light compensation
        • 2D/3D DNR (Digital Noise Reduction)
        • Ultra 265,H.265, H.264, MJPEG
        • Triple streams
        • ROI (Region of Interest)
        • Customized OSD
        • ONVIF Conformance
        • Wide temperature range: -30°C to 60°C (-22°F to 140°F)
        • Wide input voltage range of ±25%
        • 2-Axis
        • IK10 vandal resistant
        • IP66
        More Information
        Image Sensor1/3", progressive scan ,4 megapixel, CMOS
        Image Size2592×1520
        Electronic ShutterAuto/Manual, 1/6~1/100000 s
        Minimum Illumination

        Color: 0.02Lux (F1.8, AGC ON)
        B/W: 0 Lux with IR on

        Focal Length2.8mm@F1.8
        DORI Distance
        LensDetect(m)Observe(m)Recognize(m)Identify(m)
        2.8mm6325.212.66.3
        IR LEDsSmart IR
        IR DistanceUp to 30m (98 ft) IR range
        S/N Ratio> 52dB
        Angle of View(H): 104.4° , (V): 54.4°, (O): 135.7°
        Angle AdjustmentPan: 0°~360° Tilt: 0°~ 75° Rotation: 0°~ 360°
        DefogDigital Defog
        Wide Dynamic RangeUp to 120dB WDR
        OSDYes
        Video CompressionUltra 265,H.265, H.264,MJPEG
        Video Resolution4MP
        Video Frame Rate

        Main Stream: 4MP (2592×1520): Max. 20 fps, 4MP (2560×1440): Max. 25 fps, 3MP (2048×1520): Max. 30fps, 2MP(1920×1080) : Max. 30;
        Sub Stream: 1080P (1920*1080): Max. 30 fps;
        Third Stream: D1(720*576) : Max. 30 fps

        9:16 Corridor ModeSupported
        Day / NightIR-cut filter with auto switch (ICR)
        BLC ModeSupported
        HLCSupported
        ROIUp to 8 areas
        Digital Noise Reduction2D / 3D DNR
        Motion DetectionUp to 4 areas
        Privacy MaskingUp to 8 areas
        Behavior DetectionN/A
        Exception DetectionN/A
        Intelligent IdentificationN/A
        Statistical AnalysisN/A
        General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
        Audio CompressionN/A
        Audio InN/A
        Audio OutN/A
        IPC AlarmN/A
        Alarm InN/A
        Alarm OutN/A
        EthernetRJ45 x 1, 10M/100M Base-TX Ethernet
        Network ProtocolIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP
        Network InteroperabilityONVIF(Profile S), API
        Streaming MethodN/A
        Network Max. UsersN/A
        StorageN/A
        Storage CardN/A
        Web ViewerIE web browser
        MobileiPhone, Android
        Video OutputN/A
        CertificationsN/A
        RS485N/A
        Power Supply12 V DC±25%, PoE (IEEE802.3 af)
        Power ConsumptionMax 5.0W
        Operating Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
        Storage Temperature-30°C ~ +60°C (-22°F ~ 140°F), Humidity :10%~95% RH(non-condensing)
        Ingress ProtectionIP66
        Dimensions108.5 x 81 mm (4.28” x 3.2”)
        Weight0.3 kg (0.66 lb)
