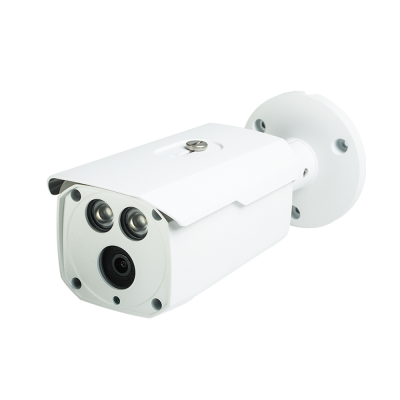

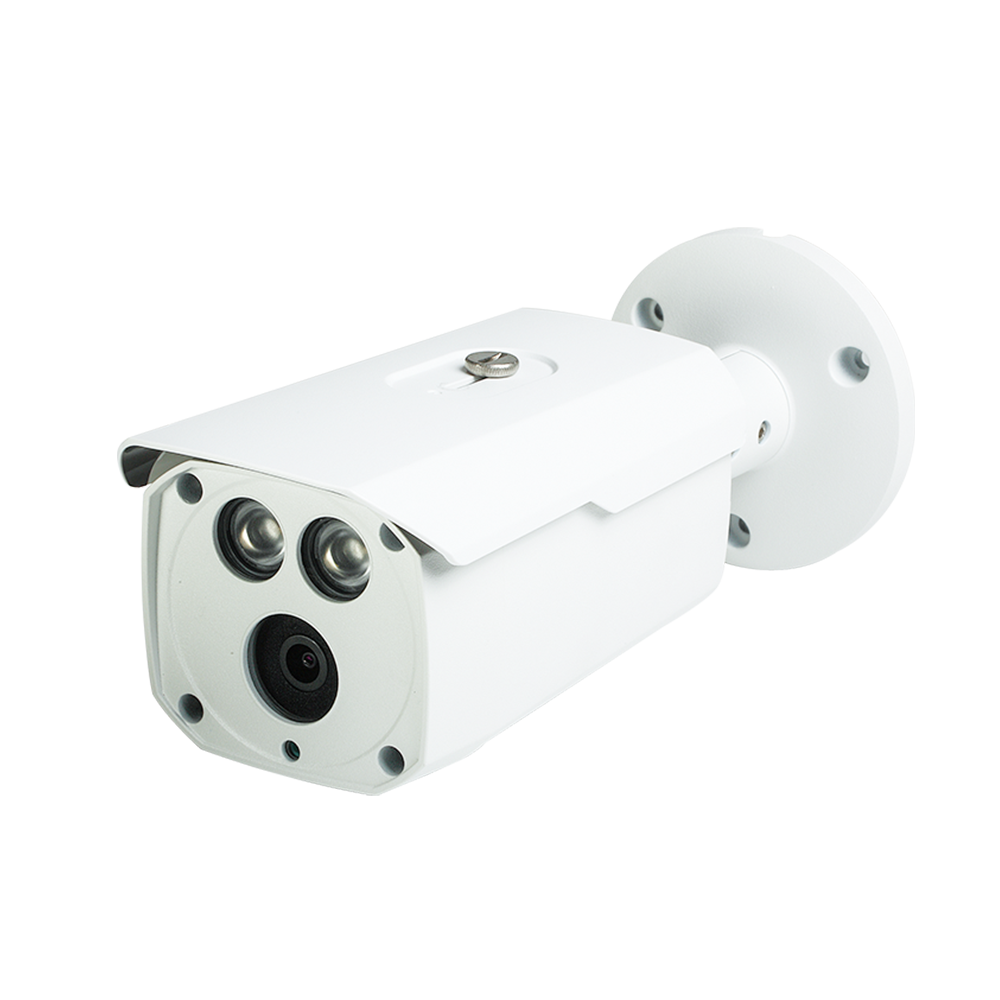

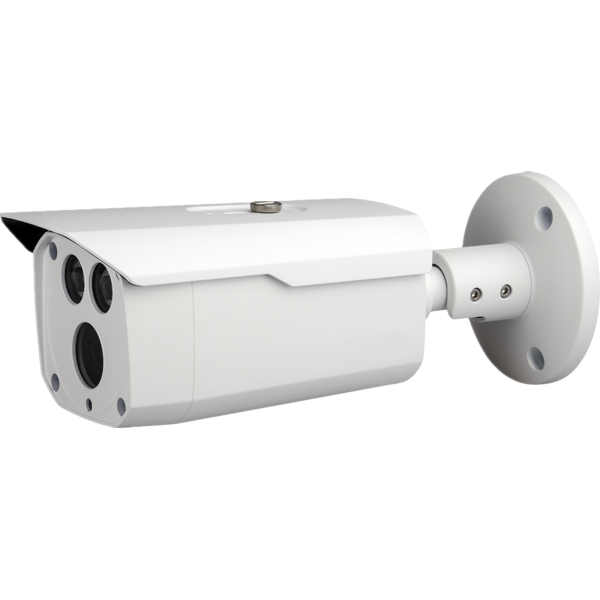

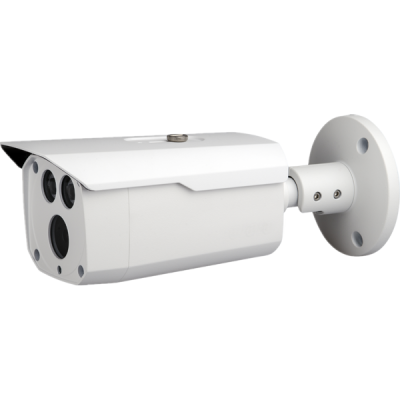

4MP WDR 3.6mm Fixed Lens Matrix IR Bullet Camera


$325.00


Availability: In Stock
Ships Same Day
List Price: $499.00
SKU: WEC-IP5141D
Product #: 86939
Manufacturer:
Camera Type: Bullet
Camera Resolution: 4 Megapixel
Shipping Lead Time: Ships Same Day
Lens Size: 3.6mm
Optical Zoom: Fixed Lens

Lens Type:
Remote Login Support:
Quantity

This bullet camera can provide 20 fps video at 4MP resolution or full 30fps at 3MP resolution. It also provides 260ft of nighttime IR distance.


4MP WDR 3.6mm Fixed Lens Matrix IR Bullet Camera


Features:

  • 1/3” 4Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • Max 20fps@4M(2688×1520) & 25/30fps@3M(2304×1296)
  • 3.6mm Fixed Lens
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & iMaxCamPro
  • 1/1 Alarm in/out, 1/1 audio in/out(only for -AS)
  • DC12V and PoE Power Capable
  • IP67 Ingress Protection Rating
  • Maximum IR LED Distance 260ft/80m

Specifications
Model WEC-IP5141D
Image Sensor 1/3” 4Megapixel progressive scan CMOS
Effective Pixels 2688(H)x1520(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3(4)~1/100000s
Min. Illumination 0.01 Lux/F2.0 (color); 0 Lux/F2.0 (IR On)
S/N Ratio >50dB
Video Output N/A
Max IR LED Distance 260 ft. / 80m
S/N Ratio More than 50dB
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / WDR (120dB)
White Balance Auto / Manual
Gain Control Auto / Manual
Noise Reduction 3DNR
Privacy Masking Up to 24 areas
Lens 3.6mm Fixed
Field of View Horizontal: 84°
Lens Type Fixed
Mount Type Board-in Type
Video
Compression H.264 / H.264H / H.264B / MJPEG
Image Resolution 4MP (2560 x 1440) / 3MP (2304 x 1296) / 1080p (1920 x 1080) / 1.3MP (1280 x 960) / 720p (1280 x 720) / D1 (704 x 480) / CIF (352 x 240)
Frame Rate Main Stream 4MP @ 20fps; 3MP / 1080p / 1.3MP / 720p @ 30fps
Extra Stream D1/CIF (1 ~ 25/30fps)
Third Stream 720p@8fps (WDR on); 720p@12fps (WDR off)
Bit Rate H.264: 32Kbps ~ 10Mbps
Audio
Compression G.711a/ G.711u/ AAC(only for -AS)
Interface 1/1 channel In/Out(only for -AS)
Network
Network Interface RJ-45 (10/100M)
Wi-Fi N/A
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP filter, QoS, Bonjour
ONVIF Compliance ONVIF Profile S
Max. User Access 20 users
Auxiliary Interface
Memory Slot Micro SD Max 128GB(only for -AS)
RS485 N/A
Alarm 1/1 channel In/Out(only for -AS)
General
Power Supply DC12V, PoE (802.3af)
Power Consumption Max 4.9W
Working Environment -30°C~+60°C, Less than 95% RH
Protection Rating IP67
Dimensions Φ90.4mm×241.8mm
Weight 0.61Kg(with package 0.80kg)

Average Customer Rating:


1 Most useful customer reviews
Brown Hall
Feb 9, 2015
This customer purchased the item at our site.
To say I love this camera is an understatement. One of the best security cameras I have ever purchased and I have bought a lot since the past 3 years. The price range is pretty cheap for a camera with such specs and it impressed me a lot. The feature that caught my attention most was the IR night time distance this security cam can capture. I can easily scope my entire neighborhood with this high quality camera. It does not only capture HD quality photos but also the video footage it takes is of top notch quality.

I like the appearance as well as it is quite unique for a security camera. It is always a great idea for you guys to go for the 20 frames per second of 4 megapixel resolution instead of the other choice. I always like to choose this option for the quality is perfect and it is just fine without too much clutter. But it entirely depends whatever you guys choose.
Loading...Was the above review useful to you? Yes (0) / No (0)

Support


iMaxCamPro Support
iMaxCamPro Support | Remote Access Guides | Support Home

iMaxCamPro Quick Links

iMaxCamPro Remote Access Guides


Note! To Download Software Enter The Following Information:
Username: wec
Password: WEC1234$

Software Downloads


Networking

 Network Setup Overview  Network Integration (locally)  Web Service Walkthrough (remote access through ie or Mozilla)  How to view cameras (remotely)  Setting up DVR with No-IP DDNS (locally)  Setting Up DDNS [DynDNS.com] (locally)
 Testing DynDNS DDNS  How to Access your iMaxCamPro DVR's through Internet Explorer 8 (remotely)  Using Mozilla Firefox with iMaxCamPro DVR's  How to View cameras via iPhone & iPad  How to View cameras via cell phone Blackberry  How to View cameras via cell phone Android  How to View cameras via cell phone Windows Mobile  How to View cameras via cell phone Symbian  How to Setup Your Surveillance Kit  iMaxCamPro Drive Compatibility List  Video Codec Pack 7.1.0 (Win)  How to Playback Recorded Video (locally)  How to Playback Recorded Video (remotely)  How to do a Digital Zoom on Playbacks (locally)  How to Setup Recording (locally)  How to Default Configurations (locally)  How to Default Configurations (remotely)  How to Set DVR to Never Log Out from Your Current User (locally)  How to setup Motion Detection (locally)  How to setup email notification (remotely)  How to reset your remote control  How to backup video files (locally)  How to setup a PTZ (remotely)  How to Format Hard Drive (locally)  How to Setup Redundancy (locally)  How to Add/Modify User Accounts (locally)  How to Add/Modify User Accounts (remotely)  How to enable audio (locally)  How to Change Channel Names (locally)  How to Setup Alarm Based Recording (locally)  How to access the Log File (locally)  How to access the Log File (remotely)

SmartPSS Client



We are Authorized Manufacturer Distributors for many main stream CCTV manufactures. Our support technicians are factory trained with strong emphasis on advanced networking and configurations of NVRs and DVRs from across multiple networks. We offer hourly support plans to help your facilities maintain system stability and optimal configuration settings.



In addition to our on-call technical support, we offer a selection of System Implementation Plans to every client.

free-tech-support

Free Technical Support

Complimentary technical support includes:

  • Basic System Implementation (one-time event, 30 minutes max)
  • Break/Fix support under manufacturer warranty
  • Basic camera, network, and NVR/DVR troubleshooting

Out of scope, additional setup, and advanced support is available at $80/ hour.


 Call us at: 888-211-2288

Email: support@worldeyecam.com

Business hours: Monday - Friday, 8:00am-5:00pm PST

    Premium Technical Support Offerings


  • End User Training
  • Available at $80 / hour
  • Must be scheduled in advance
  • View our Training Options

Advanced Training


Support for advanced configuration, out of scope troubleshooting, and other technical issues is available. In some cases “smart hands” may need to be present on-site before Advanced Support can begin. For many support tasks we require access to your high speed internet router/modem.

We require appointment scheduling with a minimum of 24-hour notice for Advanced Support.

Advanced Support can be purchased at $80/ hour.






 Technical Support Scope

Support
Activity
Free
Support
Advanced
Support
Basic System Setup - 30 minutes max.
Break/Fix Issues - Including RMA's and DOA
Basic camera, network,
and NVR/DVR troubleshooting
Advanced Support
Configuration for Remote Access
Mobile App Configuration
Camera / NVR Time Settings
Motion Detection
Setup Recording Schedules
Email/SMS Alert Configuration
Configure VMS/NVR Camera Matrix View
NVR/VMS Muliple User Setup
Archive to NAS
Camera Image Settings Configuration
License Plate Capture - Day/Night
Setup Router/ Modems /4G Hotspots
Third Party Mobile App Configuration
IP Reconfiguration
Cameras without Networks
Advanced Networking
MAC Client Setup
Other Advanced Configurations

System Implementation Plans

Bronze Silver Gold
Pricing: $30
Device
$60
Device
$80
Device
Basic Setup
Questions-limited
to 30 Min Max

Add Cameras
to NVR Server
/ DVR

Enable Continuous
Recording
Camera / NVR
/ DVR Time Settings
IP Assignment **
Device Firmware Update **
Configuration for
Remote Access
(Port Forwarding & DDNS) ***
Mobile App
Configuration for
Single User
Verification that
Cameras are Recording to
NVR / DVR
Wireless Network
Configuration

Motion Detection
Configuration

Email / SMS Alert
Configuration

Configure VMS /
NVR Camera Matrix View

NVR / VMS Muliple
User Setup

Archive to NAS
Evaluate Camera
Field of View (FOV)

Camera Image
Settings Configuration
(Focus, Exposure, D / N Settings, etc)

System Training
Max 1hr.

License Plate Capture
Day / Night

Setup Router / Modems / 4G Hotspots
Third Party
Mobile App
Configuration

IP Reconfiguration
Cameras without
Networks
(No internet access available)

Advanced Networking
MAC Client Setup
Other Advanced Camera
or NVR /
VMS Configuration

Multi User and
Advanced User Training


Dealers and Installer Sign-up


Worldeyecam Dealers and CCTV Installers




Let's Get Started!

  • You must provide Worldeyecam, Inc with the Confidential Dealer / Reseller Application Form information.
  • Dealer LOGIN account will be created to display special discounted prices as an Worldeyecam Dealer/Distributor. You will be able to login and create quotes or simply order products at your discounted rate.
  • WorldEyeCAM, Inc. will add your business into our database of nationwide integrators and installers.
  • WorldEyeCAM, Inc will provide 1st Class Factory Trained technicians to provide fanatical technical support.
  • WorldEyeCAM, Inc. will advertise and promote your company on that we are partnered with installers that work in the area (cities and counties) that you service and cover.
  • When we get request for installation services in the area that you service, we will refer the customer to you for installation and sales.

Dealer Application
Click Here



Looking for a Quote from a local Installer? Click here



Custom System Builder


Camera System Design

Designing a unique surveillance system for your home or business is as easy as clicking your mouse with our new Custom Kit Builder. With intuitive prompts that guide you along the way, you are in control of your camera styles, NVR or DVR size, power accessories and hard drive space. Still have questions, give us a call, our expert technicians are here to help. Your brand new system is only a few clicks away.

IP System Builder
Click Here

Mobile APPs


HOW TO ACCESS SYSTEM USING P2P VIA MOBILE APPLICATION

View your recorder and cameras on the go. The Mobile Application IDMSS (IOS) / GDMSS (Android) allows you to add IMAXPRO recorders and cameras to the mobile app using P2P.

PREREQUISITES

- Smartphone (IOS device or Android)

- IDMSS/GDMSS already downloadedin your mobile device.

- P2P must be turned on from the recorder and connected to a network with internet access.



STEP BY STEP INSTRUCTION

(VERSION 4.50.000)



1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.



2. Select the "Device" button/icon on the bottom to add the recorder/camera.

3. Select the "+" sign then select "Scan" to add the device.

4. Select the Device you want to Connect (If you have a wired Camera, Please choose Wired Camera).





5. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.
