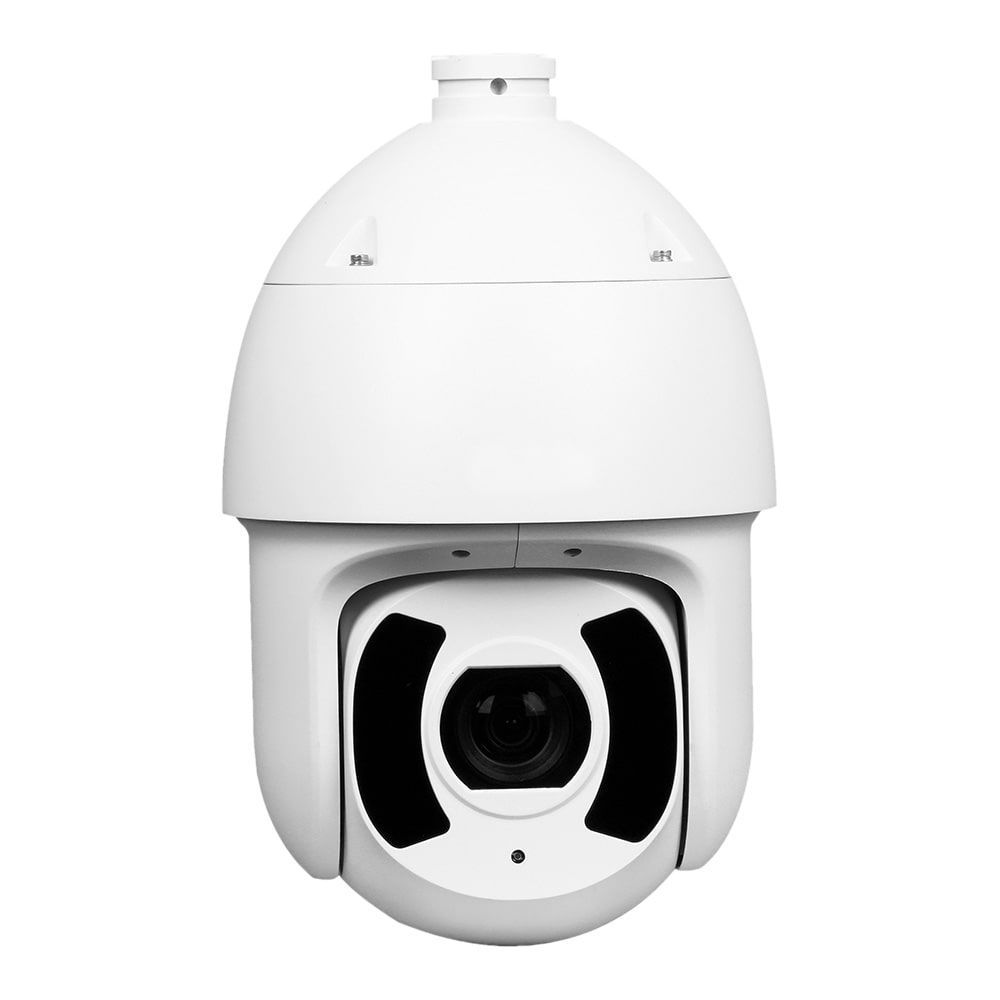

WEC PDN6CEI445H-XR | 4MP 45X Starlight IR PTZ Network Camera

iMaxCamPro
SKU: WEC6CEI445H-XR

1/2.8" 2MP 30x Starlight IR PTZ Network Camera, Smart H.265+, 50/60fps@1080P, Auto-Tracking, Surveillance Storage: Micro SD Card, also known as a TF (Trans Flash) Card, is a small flash memory card used in security cameras. (SD) up to 256GB, IP67, IK10, IVS, UL Listed professional surveillance products.

Features

  • 1/2.8” 4Megapixel STARVISTM CMOS
  • Powerful 45x optical zoom, Digital Zoom 16x
  • Starlight technology
  • Max. 25/30fps@4MP
  • Deep-learning-based auto tracking and Perimeter Protection: Tripwire, Intrusion. Support alarm triggering by target types(human and vehicle) Filtering out false alarms caused by animals, rustling leaves, bright lights, etc
  • Video Structuralization: Support human, motor vehicle and non-motor vehicle image capture
  • Event Trigger: Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly.
  • General Intelligence Object Abandoned/Missing
  • Speed Setup: Human-oriented focal Length/ speed adaptation
  • Power up Action: Auto restore to previous PTZ and lens status after power failure
  • Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
  • IR distance up to to 250m (820ft)
  • IP67, IK10



More Information
Image Sensor1/2.8" STARVIS™ CMOS
Image Size2560(H) x 1440(V), 4 Megapixels
Electronic Shutter1/1s~1/30,000s
Minimum Illumination

Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6;
0Lux@F1.6 (IR on)

Video OutputN/A
Day / NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Digital Noise ReductionUltra DNR (2D/3D)
Privacy MaskingUp to 24 areas
Optical Zoom45x
Digital Zoom16x
Electronic Image Stabilization (EIS)Support
DefogSupport
Wide Dynamic Range120dB
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

3176m(10420ft)

1271m(4170ft)

635m(2083ft)

318m(1043ft)

Focal Length3.9mm~177.75mm
Max. ApertureF1.6~ F4.95
Focus ControlAuto / Manual
Angle of ViewH: 70.3°~1.8° / V: 37°~1° / D: 69.3°~2°
Close Focus Distance10mm~ 3000mm
Laser Light ControlNA
IR LEDs6
IR DistanceDistance up to 250m (820ft)
IR On/Off ControlAuto/Manual
Angle of Laser LightNA
Pan Range0° ~ 360° endless
Pan Speed300° /s
Tilt Range-20°~90°; auto flip: 180°
Tilt Speed200° /s
Number of Preset300
PTZ Mode5 Pattern, 8 Tour (up to 32 preset per tour), Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power Up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Time TaskAuto activation of Preset / Pan / Scan / Tour / Pattern by preset-time
Video CompressionH.265+/H.265/H.264+/H.264
Video Resolution

4MP(2560x1440) / 3MP (2048x1536) / 1080P(1920×1080) / 1.3M(1280×960) / 720P(1280× 720) / D1(704×576/704×480) / CIF(352×288/352×240)

Video Frame Rate

Main stream:
4MP/3MP (1~25/30fps)
2MP/1.3MP/1MP (1~25/30fps)

Sub stream1:
D1/CIF(1 ~ 25/30fps)

Sub stream2:
1080P/1.3M/720P/D1/CIF (1~25/30fps)

Video Bitrate

H.265/H.264: 3K ~ 20480Kbps

Smart TrackingSupport
AI Perimeter ProtectionTripwire, Intrusion,Abandoned/Missing, Face Detection , Heat Map
Tracking Trigger ModeN/A
Tracking Trigger EventN/A
Audio CompressionG.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2
Audio In1
Audio Out1
IPC AlarmYes
Alarm In7
Alarm Out2
EthernetRJ-45 (10XBase-T/100Base-TX)
Network ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Network InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Network Max. Users20 users
StorageNAS (Network Attached Storage),Local PC for instant recording
Storage CardMicro SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS
MobileiPhone, Android
CertificationsCE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
RS4851
Power SupplyAC24V/3A(±25%), PoE+(802.3at)
Power Consumption13W, 26W (IR on)
Operating Temperature-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress ProtectionIP67, IK10
Dimensions209mm×337.4mm
WeightNet Weight 5.8kg(13lb) Gross Weight 9.6kg(21.16lb)
    • 17% less
    Market price:$3129.00 save $531.00
  • $2598.00
Qty:
OR

1/2.8" 2MP 30x Starlight IR PTZ Network Camera, Smart H.265+, 50/60fps@1080P, Auto-Tracking, Surveillance Storage: Micro SD Card, also known as a TF (Trans Flash) Card, is a small flash memory card used in security cameras. (SD) up to 256GB, IP67, IK10, IVS, UL Listed professional surveillance products.

Features

  • 1/2.8” 4Megapixel STARVISTM CMOS
  • Powerful 45x optical zoom, Digital Zoom 16x
  • Starlight technology
  • Max. 25/30fps@4MP
  • Deep-learning-based auto tracking and Perimeter Protection: Tripwire, Intrusion. Support alarm triggering by target types(human and vehicle) Filtering out false alarms caused by animals, rustling leaves, bright lights, etc
  • Video Structuralization: Support human, motor vehicle and non-motor vehicle image capture
  • Event Trigger: Motion detection, Video tampering , Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly.
  • General Intelligence Object Abandoned/Missing
  • Speed Setup: Human-oriented focal Length/ speed adaptation
  • Power up Action: Auto restore to previous PTZ and lens status after power failure
  • Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
  • IR distance up to to 250m (820ft)
  • IP67, IK10



More Information
Image Sensor1/2.8" STARVIS™ CMOS
Image Size2560(H) x 1440(V), 4 Megapixels
Electronic Shutter1/1s~1/30,000s
Minimum Illumination

Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6;
0Lux@F1.6 (IR on)

Video OutputN/A
Day / NightAuto(ICR) / Color / B/W
BLC ModeBLC / HLC / WDR(120dB)
White BalanceAuto, ATW, Indoor, Outdoor, Manual
Gain ControlAuto / Manual
Digital Noise ReductionUltra DNR (2D/3D)
Privacy MaskingUp to 24 areas
Optical Zoom45x
Digital Zoom16x
Electronic Image Stabilization (EIS)Support
DefogSupport
Wide Dynamic Range120dB
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.

Detect

Observe

Recognize

Identify

3176m(10420ft)

1271m(4170ft)

635m(2083ft)

318m(1043ft)

Focal Length3.9mm~177.75mm
Max. ApertureF1.6~ F4.95
Focus ControlAuto / Manual
Angle of ViewH: 70.3°~1.8° / V: 37°~1° / D: 69.3°~2°
Close Focus Distance10mm~ 3000mm
Laser Light ControlNA
IR LEDs6
IR DistanceDistance up to 250m (820ft)
IR On/Off ControlAuto/Manual
Angle of Laser LightNA
Pan Range0° ~ 360° endless
Pan Speed300° /s
Tilt Range-20°~90°; auto flip: 180°
Tilt Speed200° /s
Number of Preset300
PTZ Mode5 Pattern, 8 Tour (up to 32 preset per tour), Auto Pan ,Auto Scan
Speed SetupHuman-oriented focal Length/ speed adaptation
Power Up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Time TaskAuto activation of Preset / Pan / Scan / Tour / Pattern by preset-time
Video CompressionH.265+/H.265/H.264+/H.264
Video Resolution

4MP(2560x1440) / 3MP (2048x1536) / 1080P(1920×1080) / 1.3M(1280×960) / 720P(1280× 720) / D1(704×576/704×480) / CIF(352×288/352×240)

Video Frame Rate

Main stream:
4MP/3MP (1~25/30fps)
2MP/1.3MP/1MP (1~25/30fps)

Sub stream1:
D1/CIF(1 ~ 25/30fps)

Sub stream2:
1080P/1.3M/720P/D1/CIF (1~25/30fps)

Video Bitrate

H.265/H.264: 3K ~ 20480Kbps

Smart TrackingSupport
AI Perimeter ProtectionTripwire, Intrusion,Abandoned/Missing, Face Detection , Heat Map
Tracking Trigger ModeN/A
Tracking Trigger EventN/A
Audio CompressionG.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2
Audio In1
Audio Out1
IPC AlarmYes
Alarm In7
Alarm Out2
EthernetRJ-45 (10XBase-T/100Base-TX)
Network ProtocolIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Network InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast / Multicast
Network Max. Users20 users
StorageNAS (Network Attached Storage),Local PC for instant recording
Storage CardMicro SD card 128GB
Web ViewerIE, Chrome, Firefox, Safari
Management SoftwareSmart PSS, DSS
MobileiPhone, Android
CertificationsCE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
RS4851
Power SupplyAC24V/3A(±25%), PoE+(802.3at)
Power Consumption13W, 26W (IR on)
Operating Temperature-40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress ProtectionIP67, IK10
Dimensions209mm×337.4mm
WeightNet Weight 5.8kg(13lb) Gross Weight 9.6kg(21.16lb)
    • SKU
      WEC6CEI445H-XR
    • Weight
      15 lbs
  • Manufacturer
    iMaxCamPro
  • Camera Type
    PTZ
  • Camera Signal
    IP
  • Camera Resolution
    4 Megapixel
  • Lens Size
    3.95 ~ 177.75 mm focal lens
  • Shipping Lead Time
    Ships Same Day
