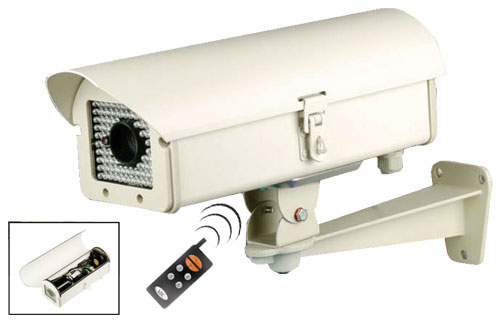

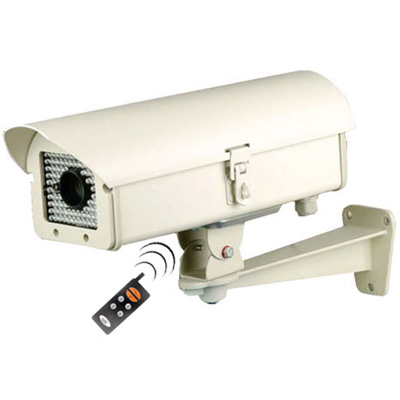

WEC-22X-IRZOOM Outdoor Heater / Blower IR Camera


Availability: Out of Stock
Product #: 17298

Power Supply:

This durable surveillance camera has a 22x optical zoom and auto focus. It records both day and night with 84 LEDs providing illumination. The security camera records images with a 520TVL resolution and automatic grain control. It has a wireless remote control and is powered by 24V AC.

The WEC-22X-IRZOOM Outdoor Heater / Blower IR Camera features:

  • Sony CCD 520 TVL 0LUX
  • Heater Blower Outdoor Camera w/Housing
  • 84 high intensity LEDs
  • 22x optical zoom auto focus day and night
  • OSD Setup
  • wireless remote control
  • Built-in RS485 Compatible
  • AC 24v
Type Color Camera
Pick-Up Device Sony Super HAD High Resolution CCD
Picture Elements H x V NTSC: 512 x 492 - PAL: 512 x 582
Horizontal Resolution 520 Lines
Vertical Frequency NTSC: 59.94Hz - PAL: 50Hz
Scanning System 2:1 Interlace
Mini Illumination 0 Lux With 84 IR LED's ON
Synchronization Internal
S/N Ratio >48dB
Electronic Shutter up to 1/100,000sec
White Balance Auto White Balance
IR Ray 880~940 nM infrared Wave Length
Lens 22x optical zoom 3.9-85.8mm Lens
Gamma 0.45
Video Output 1Vp-p, 75 Ohms
Auto Gain Control AUTO
Power Supply 24V AC (+/-10%)
Power Consumption 200AH (+/-10%)
Color Beige
Weight 1.5lb - 500g
Storage Temperature -30 degrees C to +60 degrees C
Operating Temperature -10 degrees C to +50 degrees C

See spec sheet
