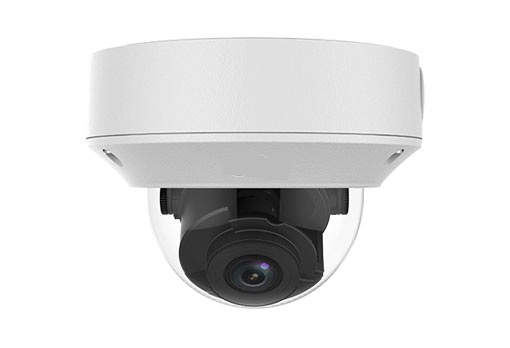

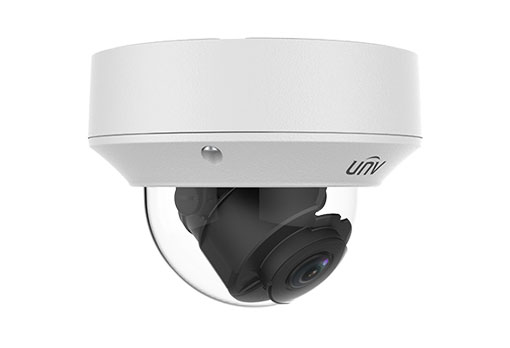

5MP VF Vandal-resistant Network IR Fixed Dome Camera

SKU: WEC3235LR3-VSP(Z28)-D
Uniview
SKU: WEC3235LR3-VSP(Z28)-D

Optics

* Day/night functionality

* Smart IR , up to 30 m (98 ft) IR distance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265,H.265, H.264, MJPEG

* ROI (Region of Interest)

Network

* ONVIF Conformance

Structure

* Wide temperature range: -40°C to 60°C (-40°F to 140°F)

* Wide voltage range of ±25%

* IK10 vandal resistant

* IP67

* 3-Axis

    • 84% less
    Market price:$1716.00 save $1437.00
  • $279.00

OR

Optics

* Day/night functionality

* Smart IR , up to 30 m (98 ft) IR distance

* IR anti-reflection window to increase the infrared transmittance

* 2D/3D DNR (Digital Noise Reduction)

Compression

* Ultra 265,H.265, H.264, MJPEG

* ROI (Region of Interest)

Network

* ONVIF Conformance

Structure

* Wide temperature range: -40°C to 60°C (-40°F to 140°F)

* Wide voltage range of ±25%

* IK10 vandal resistant

* IP67

* 3-Axis

  IPC3235LR3-VSP-DIPC3235LR3-VSPZ28-D
Camera
Sensor1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens2.8 ~ 12mm, manual zoom lens2.8 ~ 12mm, motorized zoom lens
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.86325.212.66.3
122701085427
Angle of View (H)105.3° ~ 25.4°
Angle of View (V)69.5° ~ 18.4°
Angle of View (O)136.9° ~ 31.2°
Adjustment anglePan: 0° ~ 360°Tilt: 0° ~ 80°Rotate: 0° ~ 360°
ShutterAuto/Manual, 1 ~ 1/100000s
Minimum IlluminationColour: 0.005Lux (F1.6, AGC ON)
0Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
IR RangeUp to 30m (98ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile
Frame RateMain Stream: 5MP (2592*1944), Max 20fps;
Sub Stream: 720P (1280*720), Max 20fps
HLCSupported
BLCSupported
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 2 areas
Motion DetectionUp to 4 areas
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
Edge StorageMicroSD, up to 256GB
General
PowerDC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.7W
Dimensions (Ø x H)Φ148 x 111.3mm (Ø5.8” x 4.4”)
Weight0.92kg (2.0lb)
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Ingress ProtectionIP67
Vandal ResistantIK10
Reset ButtonSupported
