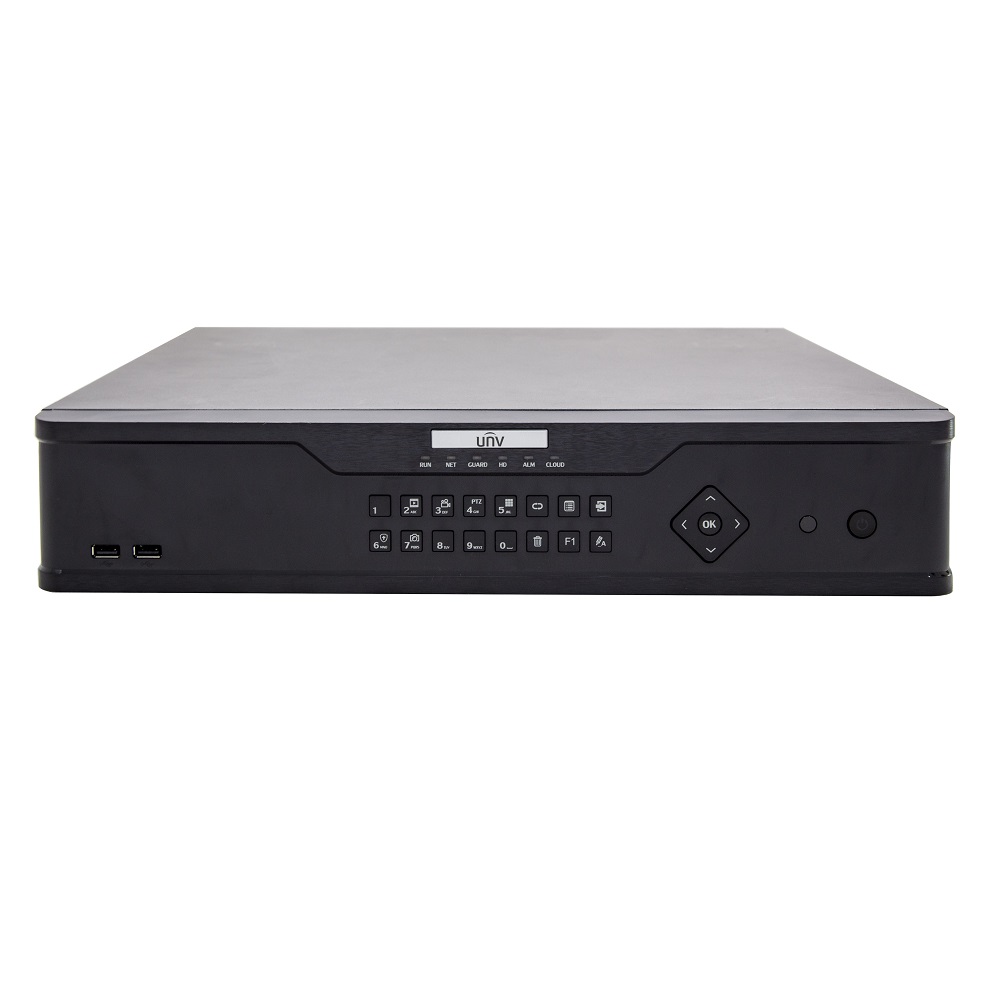

Uniview NVR308-64X| 2U 64CH NVR ULTRA H.265 UP TO 12MP Resolution 320MBPS


Please login or register to see price
Availability: In Stock
Ships Same Day
SKU: WEC-NVR308-64X
Product #: 99664
Manufacturer:
Shipping Lead Time: Ships Same Day
Number of Channels: 64 Channels
Recorder Type: NVR


PRODUCT FEATURES

• Support Ultra 265/H.265/H.264 video formats

• 64-channel input

• Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile C, Profile Q, Profile A, Profile T

• Support 2-ch HDMI, 1-ch VGA, HDMI2 at up to 4K(3840x2160) resolution

• HDMI/VGA and HDMI2 simultaneous output

• Up to 12 Megapixels resolution recording

• 8 SATA HDD up to 8 TB each

• ANR technology to enhance the storage reliability when the network is disconnected

• Support cloud upgrade

• Support for P2P, UPnP, NTP, DHCP, PPPoE

• Support for mobile client access

• Mac compatible via EZPlugin software for Safari

Model NVR308-16E-B NVR308-32E-B NVR308-64E-B
Video/Audio Input
IP Video Input 16-ch 32-ch 64-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 160Mbps 320Mbps
Outgoing Bandwidth 320Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output HDMI1/VGA:
1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
HDMI2:
4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
CVBS Output 1-ch, BNC
Recording Resolution 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 16-ch
Corridor Mode Screen 3/4/5/7/9/10/12/16 3/4/5/7/9/10/12/16/32
Decoding
Decoding format Ultra 265, H.265, H.264
Live view/ Playback 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
Hard Disk
SATA 8 SATA interfaces
Capacity up to 8TB for each HDD
eSATA 1 eSATA interface
Smart
VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search
Statistical Analysis People counting
Disk Array
Array Type RAID 0, 1, 5, 6, 10
External Interface
Network Interface 2 RJ45 10M/100M/1000M self-adaptive Ethernet Interfaces
Serial Interface 1 x RS232, 1 x RS485
USB Interface Front panel: 2 x USB2.0,Rear panel: 1 x USB3.0
Alarm In 16-ch
Alarm Out 4-ch
General
Power Supply 100 ~ 240 VAC Power Consumption: ≤ 20 W( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H) 442mm ×425mm× 86mm (17.4" × 16.7"× 3.4")
Weight ( without HDD ) ≤ 5.13 Kg (11.31 lb )
