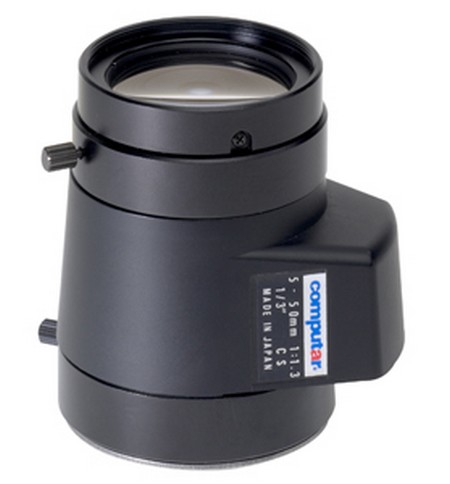

TG10Z0513FCS 1/3" 5-50mm Varifocal, DC Auto Iris Lens


Availability: In Stock
Product #: 33337


TG10Z0513FCS 1/3" 5-50mm Varifocal, DC Auto Iris Lens. TG10Z0513FCS is an all purpose varifocal with a 10X zoom ratio suitable for a wide range of viewing angles including long distance surveillance. Used on a 1/3" format camera, it has a 51.8 - 5.6 degree horizontal angle of view. It has an overall length of only 2.3 inches and a fast F1.3 f-stop. Lens is CS-Mount, comprised of all glass optics, come with locking set screws and a durable metal barrel and mount, no amplifier, pre-wired connector included. DC Auto Iris Lenses are used for indoor or outdoor applications where large variation in lighting occurs. The TG10Z0513FCS has a focal length 5-50mm, an Iris range of F1.3 - F16C, and 1/3" Format. Aperture Ratio : 1:1.3. This models Down Angle View : 64 – 6.9 degrees and Horizontal View : 51.8 – 5.6 degrees with Vertical View : 39.2 – 4.3 degrees. Its Max. Image Format : 4.8mm x 3.6mm. Its dimension W68.5mm x H76.3mm x D82.5mm and weight is 480g. The high performance Ganz Thermal Imaging Cameras capture high-quality video in all lighting conditions. The cost-effective IP and analog thermal solutions outperform conventional surveillance technologies and are ideal for even the most challenging surveillance environments. The fixed and pan/tilt configurations are available in two resolutions. For greater versatility, the Ganz Thermal line is equipped with multiple lens options, both IP and Analog connectivity and Image Contrast Enhancement capabilities for additional local area processing and edge enhancement. CBC AMERICAS Corp. is part of a multi-billion dollar global network of Import Export, Trading and Distribution companies strategically located throughout the world with headquarters in Tokyo, Japan. Their main areas of business are importation and distribution of, CCTV Security Products, Chemicals and Pharmaceuticals and Commercial Flooring. They manufacture plastic molded and metal coated automotive parts for the North American automotive industry.

There have been no reviews
