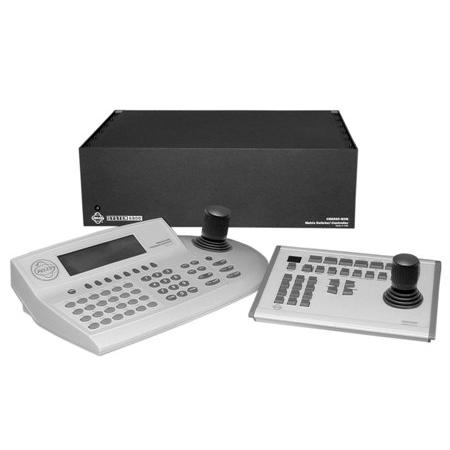

Pelco CM6800-96X16 96 Input 16 Output Expanded Matrix System
SKU: CM6800-96X16
The Pelco CM6800-96X16 matrix system consists of (2) CM6800E-48x8 switchers and (1) CM6800E-KIT containing cables and instructions for setup and use. This system provides switching and control for up to 96 video inputs and sixteen monitor outputs from any one of up to 18 keyboards, PCs and other devices. Each camera can be individually selected for terminating or looping video input by setting switches on the rear panel. When used with Genex multiplexers, multiple images can be displayed on a single monitor. A user-friendly on-screen menu system offers programming in eight different languages which can be accessed directly from the switcher via a local or remote keyboard or by using an external Windows based computer.
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
Pelco CM6800-96X16 96 Input 16 Output Expanded Matrix System
The Pelco CM6800-96X16 matrix system consists of (2) CM6800E-48x8 switchers and (1) CM6800E-KIT containing cables and instructions for setup and use. This system provides switching and control for up to 96 video inputs and sixteen monitor outputs from any one of up to 18 keyboards, PCs and other devices. Each camera can be individually selected for terminating or looping video input by setting switches on the rear panel. When used with Genex multiplexers, multiple images can be displayed on a single monitor. A user-friendly on-screen menu system offers programming in eight different languages which can be accessed directly from the switcher via a local or remote keyboard or by using an external Windows based computer.
Switcher System
This system consists of (2) CM6800E-48X8 switchers and (1) CM6800E-KIT containing cables and instructions for connecting and operating this system.
96 Inputs, 16 Outputs
This system Provides switching and control for up to 48 video inputs and eight monitor outputs from any one of up to 18 keyboards, PCs and other devices.
Remote Operation
Multiple ports offer local and remote control using optional keyboards, PCs and other devices via Coaxitron and RS-422 control protocols. This unit can also be accessed for viewing and control over a TCP/IP network using Pelco's PelcoNet protocol.
Looping Inputs
Each camera input can be individually selected for terminating or looping input by setting jumpers on the rear panel.
Alarm
In addition to a built-in video loss function for alerting the operator to possible camera tampering, this unit accepts a number of alarm inputs for triggering a macro, preset or pattern and displaying it on single or multiple monitors.
On-Screen Menu
An easy to use on-screen menu offers programming in eight different languages with time and date, operation mode, camera number and 20-character title identification for each camera. The display can be located anywhere on the screen and can be turned on and off.
Password Protection
Employs a password authentication system with system partitioning for protection from unauthorized use.
Mounting Options
Factory configured with rack ears for EIA (3 RUs) rack mounting. These rack ears are removable for wall or desk placement.
Specifications :
| Signal System | NTSC |
| Channels | 96 |
| Connectors | Video In: BNC x80 Video Out (loop through): BNC x80 Alternate Video Input: x16 Video Output to Monitor: BNC x16 Keyboard Capacity: x18 Data Ports: x8 PTZ Control Port: x4 Data Port for Keyboard: x2 |
| Alarm | Sixteen, individually programmable for N.O. or N.C. on rear panel |
| Languages | Programming menus and onscreen text are provided in English, French, German, Italian, Polish, Portuguese, Russian, and Spanish. |
| Power Requirements | 120 VAC |
| Power Consumption | 25W |
| Operating Temperature | 20 - 120 F -70 ~ +49 C |
| Dimensions (WxHxD) | 17.4 x 5.25 x 12.25" 44.20 x 13.34 x 31.12cm |
| Weight | 11.6 lb (each 48X8 switcher) 5.22 kg |
