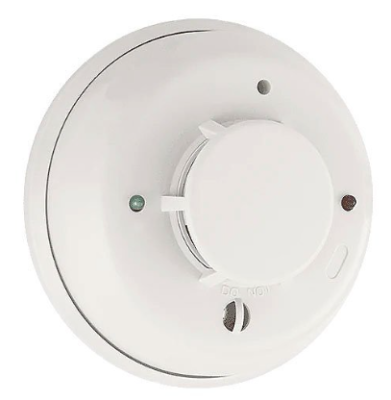

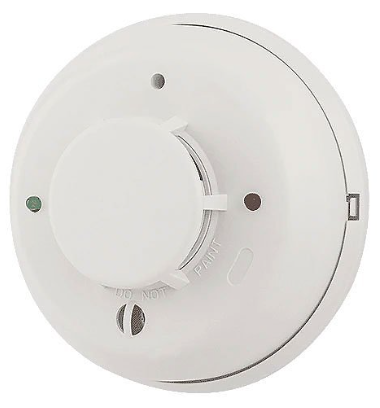

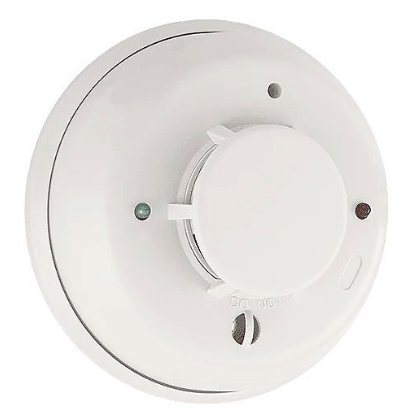

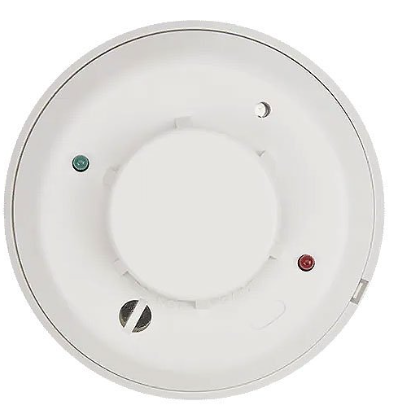

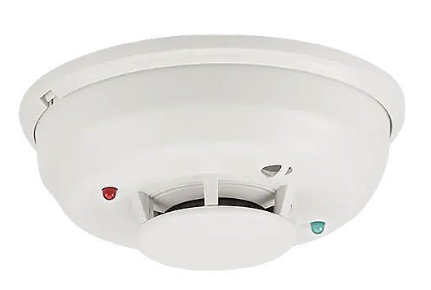

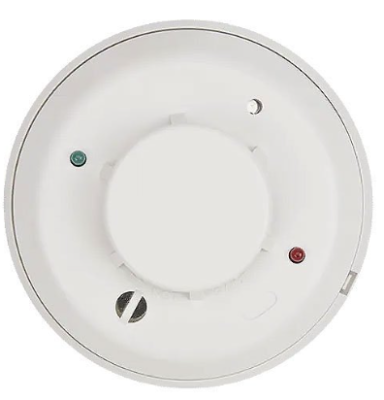

System Sensor 2WTA-B Photoelectric i3 Series Smoke Detector, 2-Wire with Thermal Sensor and Built-In Sounder, White

SKU: 2WTA-B
SYSTEM SENSOR
SKU: 2WTA-B
    • 58% less
    Market price:$235.55 save $136.52
  • $99.03

OR

Product Overview


The System Sensor 2WTA-B is a 2-wire, photoelectric i3 smoke detector with thermal sensor and built-in sounder.

System Sensor i3 series smoke detectors represent significant advancement in conventional detection. The i3 family is founded on three principles: installation ease, intelligence, and instant inspection.The i3 line redefines installation ease with its plug-in design. This allows an installer to pre-wire bases (included with heads). The large wire entry port and in-line terminals provide ample room for neatly routing the wiring inside the base. The base accommodates a variety of back box mounting methods as well as direct mounting with drywall anchors. To complete the installation, i3 heads plug into the base with a simple Stop-Drop 'N Lock action.

i3 detectors offer a number of intelligent features to simplify testing and maintenance. Drift compensation and smoothing algorithms are standard with the i3 line to minimize nuisance alarms. 2-wire i3 detectors can generate a remote LED indicated maintenance signal when connected to the 2W-MOD2 loop test/maintenance module or a panel equipped with the i3 protocol. The SENS-RDR, a wireless device, displays the sensitivity of i3 detectors in terms of percent-per-foot obscuration.


Main Features

  • 85 dB sounder
  • Form C relay
  • Isolated thermal sensor
  • Plug-in design (base included)
  • In-line terminals
  • Simplified sensitivity measurement
  • Stop-Drop 'N Lock attachment to the base
  • Removable cover and chamber
  • Remote maintenance signaling
  • Drift compensation and smoothing algorithms

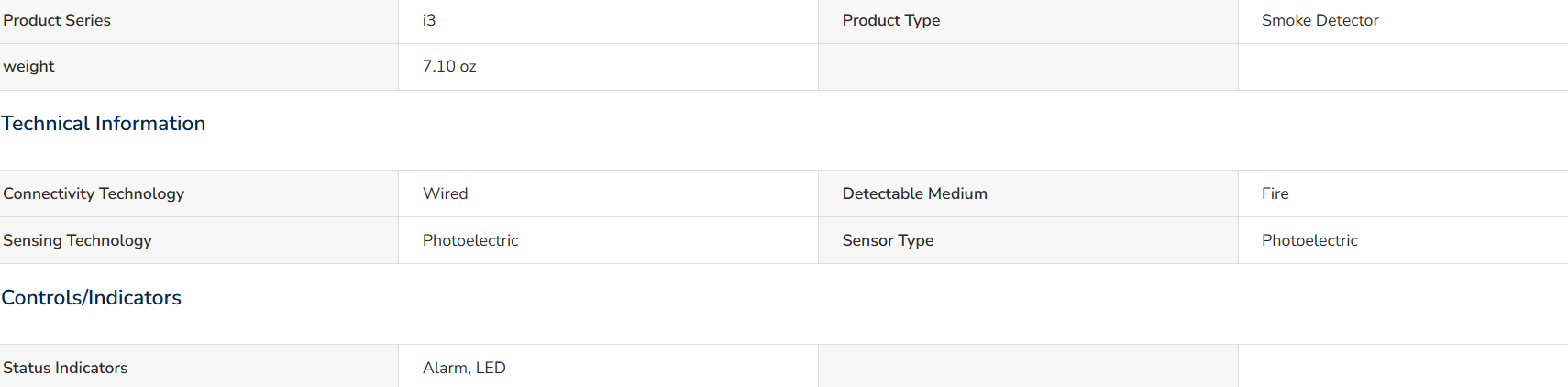

Specifications
