SQP-110T Signage Display 11" Monitor V:1.1A (Touchscreen Panel, Networkable, White)  710-SQP11-0T...

        SQP-110T Signage Display 11" Monitor V:1.1A (Touchscreen Panel, Networkable, White) 710-SQP11-0T0

        SKU: 89-ST11W0-11AB
        Geovision
        SKU: 89-ST11W0-11AB
        • 11-inch touch / non-touch panel (800 × 480 ;16 :10)
        • Multimedia support
        • SD card and USB storage
        • Network access
        • Content management system (CMS Server and CMS Lite)
        • Automatic slideshow display with multiple transition effects
        • IR remote control
        • Built-in speakers
          • 28% less
          Market price:$394.00 save $109.00
        • $285.00

        OR
        Camera packaging contents:

        • SQP110 device × 1
        • AC/DC adapter × 1
        • IR remote control × 1
        • Software DVD × 1
        • Magnetic rear rack × 1
        • 11-inch touch / non-touch panel (800 × 480 ;16 :10)
        • Multimedia support
        • SD card and USB storage
        • Network access
        • Content management system (CMS Server and CMS Lite)
        • Automatic slideshow display with multiple transition effects
        • IR remote control
        • Built-in speakers
        Introduction

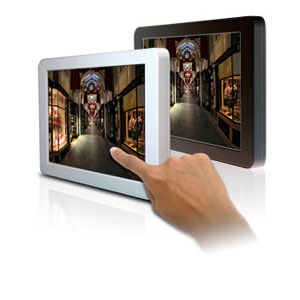

        SQP110 series (Square Plastic 110 series) is a dynamic digital signage with an 11-inch monitor. It is designed to display slideshows made of images and videos. This device is built in an USB port and a SD card slot for connection to storage devices used for storing slideshow files. SQP110 series can be used for any application that requires showing information and messages, such as advertising.

        SQP110 series comes in two models, SQP110T with a touchscreen and SQP110P with a non-touch screen. With the touchscreen, users can interactively access the information displayed on the screen. The device is available in black or white color.

        SQP110 series support content management system CMS Server and CMS Lite for remote slideshows and firmware upgrade. An additional USB to RJ-45 cable is required to allow the SQP110 series connect to the network.



        Firmware

        Software Download & Upgrading

        Version History

        Datasheet_SignSQP110.pdf

        Item No. (Sales Part No.)Description
        710-SQP11-0T0SQP110T (White) EU
        710-SQP11-0T0SQP110T (White) US
        710-SQP11-0P0SQP110P (White) EU
        710-SQP11-0P0SQP110P (White) US
        710-URJ45-000USB to RJ-45 Cable for SQP110 series

        NameDetails
        USB to RJ-45 cableYou can use the USB to RJ-45 cable to connect the SQP110 series to the CMS Lite for remotely uploading media files or firmware to the SQP110 series.

        ModelSQP110 series
        Panel Size (inch)11" touch (SQP110T) 11" non-touch (SQP110P)
        Aspect Ratio16:10
        Pixel Pitch (mm)0.1 x 0.3
        Video FormatMultimedia Support
        Audio FormatMultimedia Support
        Photo FormatJPEG, PNG
        Color262 K
        Contrast250 :1
        Brightness (cd/㎡)380
        Response Time (Tr / Tf)30 / 50 ms
        View Angle (H / V)125 ° / 105 °
        Video SystemNTSC / PAL
        SD SlotSD Card (FAT32 Format)
        USBType A, USB 2.0 Backward Compatible (FAT32 Format)
        Speaker2 W x 2
        Power Consumption40 W
        IR Remote ControlYes
        OSDYes
        Function KeysYes
        HousingBlack / White
        Storage Temperature0 °C ~ 60 °C (32 °F ~ 140°F)
        Storage Humidity5 % ~ 95 %
        Operating Temperature0 °C ~ 40 °C (32 °F ~ 104 >°F)
        Operating Humidity20 % ~ 80 %
        Dimension (W x H x D)292 x 186 x 46 mm (11.5 x 7.3 x 1.8 inch )
        Net Weight1.5 kg (3.3 lb)
        LanguageEnglish
