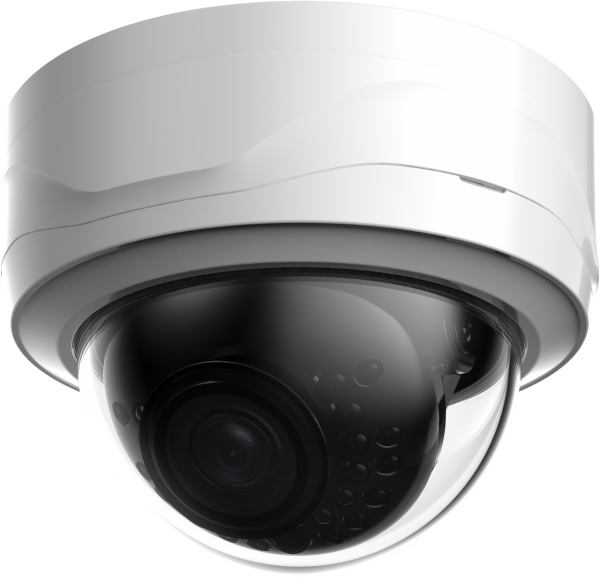

iMaxCamPro HNC3V241E-IRS-S2/28 | 4MP WDR Starlight Fixed Dome Network Security Camera


$150.00


Availability: In Stock
Ships Same Day
List Price: $350.00
SKU: WECHNC3V241EIRSS228
Product #: 117415
Manufacturer:
Camera Type: Dome
Camera Resolution: 4 Megapixel
Camera Signal: IP
Shipping Lead Time: Ships Same Day
Lens Size: 2.8mm
Optical Zoom: Fixed Lens
Lens Type: WDR
Infrared Distance: 30m (98 ft)

Quantity

Fixed Dome,1/3" ,4MP@30fps,2.8mm,IR(98ft),WDR,starlight,VCA,SD Slot

Features

  • 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
  • Outputs 4MP (2560 × 1440)@25/30 fps, max. supports 4MP (2688 × 1520)@20 fps
  • H.265 coding, high compression ration, low bit rate
  • Built-in IR LED, Max IR distance: 30 m
  • ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent detection: Intrusion, tripwire
  • Abnormality detection: Motion detection, video tampering, no SD card,
  • SD card full, SD card error, network disconnected, IP conflict, illegal access, voltage detection
  • Max. 256 GB SD card
  • 12V DC/POE power support
  • IP67, IK10 protection

There have been no reviews

Camera Specs


Image Sensor 1/3” CMOS
Image Size 2688(H) x1520(V)
RAM/ROM 128 MB/128 MB
Electronic Shutter Auto/Manual, 1/3~1/100000s
Minimum Illumination

0.008 Lux@F1.6

IR LEDs 3
Smart IR Support
IR Distance 30 m (98 ft)
IR On/Off Control Auto/Manual
Focal Length 2.8mm
Angle of View Horizonal: 102.0° Vertical: 55.0° Diagonal: 121.0°
Max. Aperture F1.6
Close Focus Distance 0.9 m (2.95 ft)
DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56 m
(183.73 ft)

22.4 m
(73.49 ft)

11.2 m
(36.75 ft)

5.6 m
(18.37 ft)

Pan / Tilt / Rotation Pan:0° ~355° ;Tilt:0° ~65° ;Rotation:0° ~355°
Video Compression H.265; H.264; H.264B; MJPEG
Streaming Capability 2 Streams
Video Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440);2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M
(1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 ×480); VGA (640 ×480); CIF (352 × 288/352 × 240)

Video Frame Rate

50Hz
Main stream (2560 × 1440@25 fps); sub-stream (704 × 576@25 fps)
Main stream (2688 × 1520@20 fps); sub-stream (704 × 576@20 fps)
60Hz
Main stream (2560 × 1440@30 fps); sub-stream (704 × 480@30 fps)
Main stream (2688 × 1520@20 fps); sub-stream (704 × 480@20 fps)



Video Bitrate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day / Night ICR switch
Wide Dynamic Range 120 dB
BLC Mode Yes
HLC Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Auto/Manual
Digital Noise Reduction 3D DNR
Motion Detection Disable/Enable (4 areas, rectangle)
Region of Interest Yes (4 areas)
Flip 0°/90°/180°/270°
Mirror Yes
Privacy Masking 4 areas
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
AI Perimeter Protection Tripwire, Intrusion
Ethernet RJ-45 (10/100Base-T)
Network Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP
Network Interoperability ONVIF (Profile S/Profile G); CGI; Milestone; Genetec
Network Max. Users 20 Users
Storage NAS Local PC for instant recording
Storage Card Micro SD card (max. 256 GB)
Web Viewer IE, Chrome, Firefox
Management Software Smart PSS, DSS, DMSS
Mobile IOS, Android
Certifications CE-LVD: EN60950-1
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL: UL60950-1 CAN
Power Supply 12V DC/POE
Power Consumption < 5W
Operating Temperature -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Temperature -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67,IK10
Dimensions 81 mm × Φ109.9 mm (3.19" × Φ4.33")
Weight Net Weight 0.350 kg (0.77 lb) Gross Weight 0.491 kg (1.08 lb)

Mobile Apps


HOW TO ACCESS SYSTEM USING P2P VIA MOBILE APPLICATION

View your recorder and cameras on the go. The Mobile Application IDMSS (IOS) / GDMSS (Android) allows you to add IMAXPRO recorders and cameras to the mobile app using P2P.

PREREQUISITES

- Smartphone (IOS device or Android)

- IDMSS/GDMSS already downloadedin your mobile device.

- P2P must be turned on from the recorder and connected to a network with internet access.



STEP BY STEP INSTRUCTION

(VERSION 4.50.000)



1. Open iDMSS/gDMSS on the phone, and select the home icon located on the top left corner.



2. Select the "Device" button/icon on the bottom to add the recorder/camera.

3. Select the "+" sign then select "Scan" to add the device.

4. Select the Device you want to Connect (If you have a wired Camera, Please choose Wired Camera).





5. Input the device for easy identification. It's required to input the password for the added device then select the save icon located on the top right corner.
