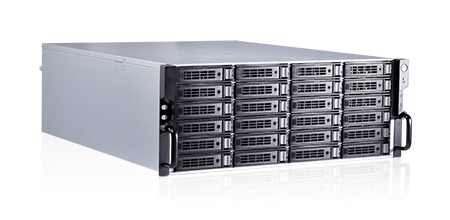

GV-Storage System V2
- 4U 24-bay hot-swap SATA II / III HDD for data storage
- Storage capacity up to 144 TB (with 6 TB HDD)
- Six 1 GbE iSCSI data ports
- RAID levels 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD, and N-way mirror
- Fully redundant & hot pluggable designs: power supplies and fans
- Hardware iSCSI offload engine
- Background logical drive rebuilding
- Automatic rebuilding onto hot spare (Local & Global Hot Spare)
- Web management interface enabled on a specific Ethernet interface
- Multi-path and load-balancing Features
- Storage expendable up to 1152 TB with 192 hard drives by connecting up to 7 GV-Expansion Systems (4U, 24-bay)
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- GV-Storage System V2
- HDD Tray x 24
- Power Cord x 2
- RS-232 Cable (For UPS, phone jack to DB9 male).
- Rail Kit
- Keys, Screws for Drives and Rail Kit (packet)
- Quick Start Guide
- Software Disk
- 4U 24-bay hot-swap SATA II / III HDD for data storage
- Storage capacity up to 144 TB (with 6 TB HDD)
- Six 1 GbE iSCSI data ports
- RAID levels 0, 1, 0+1, 3, 5, 6, 10, 30, 50, 60, JBOD, and N-way mirror
- Fully redundant & hot pluggable designs: power supplies and fans
- Hardware iSCSI offload engine
- Background logical drive rebuilding
- Automatic rebuilding onto hot spare (Local & Global Hot Spare)
- Web management interface enabled on a specific Ethernet interface
- Multi-path and load-balancing Features
- Storage expendable up to 1152 TB with 192 hard drives by connecting up to 7 GV-Expansion Systems (4U, 24-bay)
- GV-Hot Swap System V5 Series
- GV-NVR System Lite V2 Series
- GV-Tower / DVR / NVR / VMS System
- GV-DVR / NVR / VMS / Recording Server / Backup Center / Redundant Server / Failover Server



System | |
CPU | Intel Dual Core processor |
RAM | 4 GB DDR3 ECC |
Management Port | RJ-45, 10 / 100 / 1000 Mbps |
iSCSI Port | 1 GbE iSCSI ports x 6 |
UPS Port | UPS port x 1 (phone jack to DB9 male) |
SAS Port | 6 Gbps SAS port x 1 |
No. of Hot Swap Drive Bays | 24 |
HDD Type | SATA II / III |
Power | Output: 550 W x 2 Input: 100 ~ 230V, 50 ~ 60 Hz |
Fan | Hot pluggable and redundant fan x 3 |
Physical | |
LED Indicator | Yes (Power, HDD, Status, Access) |
Color | Black |
Form Factor | 4U 19 inch rackmount chassis |
Dimensions (W x H x D) | 481 x 176 x 550 mm / 19 x 7 x 22 in |
Weight | 34 kg / 75 lb (Diskless) |
Regulatory | CE / FCC / BSMI / C-Tick / LVD |
Environment | |
Operating Temperature | 0 ~ 40°C / 32 ~ 104 °F |
Humidity | 5 ~ 95% RH (non-condensing) |
Management | |
Management Method | Web UI |
RAID Mode | RAID 0 / 1 / 3 / 5 / 6 / 0+1 / 10 / 30 / 50 / 60 and JBOD, and N-way mirror |
Automatic RAID Creation | Yes |
RAID Migration | Yes |
RAID Expansion | Yes |
Alert | Email, SNMP, Windows Messenger, System Buzzer |
Security | CHAP authentication |
HDD Health Detection | S.M.A.R.T. diagnostics |
Language | English / French / German / Japanese / Russian / Simplified Chinese |
Video Streaming | Complex Scenes | Normal Scenes | |||
Resolution | Frame rate | Bitrate | Record Channels | Bitrate | Record Channels |
1.3 MP | 30 fps | 5 Mbps | 534 ch | 1.73 Mbps | 1560 ch |
2 MP | 30 fps | 7 Mbps | 385 ch | 3.86 Mbps | 699 ch |
3 MP | 20 fps | 10.48 Mbps | 257 ch | 3.38 Mbps | 798 ch |
4 MP | 15 fps | 11.65 Mbps | 231 ch | 8.93 Mbps | 302 ch |
5 MP | 10 fps | 16.48 Mbps | 163 ch | 3.16 Mbps | 854 ch |
- ManufacturerGeovision
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
