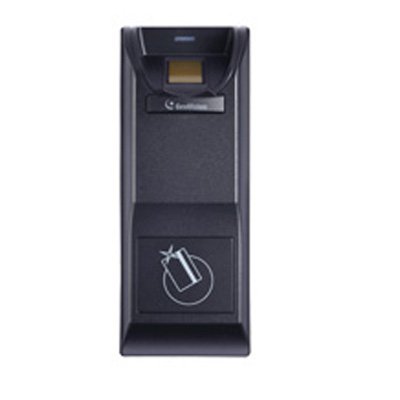

GV-GF1921 GeoFinger, Capacitive sensor, TCP/IP only, 13.56MHz, Standalone function available on Fingerprint Only mode


Availability: In Stock
Ships within 1 to 12 Hours
List Price: $700.00
SKU: GV-GF1921 84-GF19210-1000
Product #: 85614

Remote Login Support:

The fingerprint reader can work with GV-AS / GV-EV Controller and GV-ASManager to create a complete access control system. Three types of operation modes are supported: Card + Fingerprint, Fingerprint Only and Card Only.

  • Work with GV-AS / GV-EV Controller and GV-ASManager
  • Can be a standalone fingerprint reader
  • Three types of access modes: card only, fingerprint only and card plus fingerprint
  • Connect with GV-AS Controller through TCP/IP interface (WAN)
  • Enroll fingerprints through TCP/IP connection with GV-ASManager (Fingerprint Only Mode)
Models GV-GF1921 GV-GF1922
Application Indoor use only
Sensor Capacitive Optical
Sensing Area (H x W) 18 x 13 mm (0.71 x 0.51 in) 20 x 17 mm (0.79 x 0.67 in)
Output Interface DC 30V, 0.3A
Input Interface 2 Ports, dry-contact
Communication Interface TCP/IP (LAN / WLAN)
Supported Card ISO14443A (MIFARE DESFire, MIFARE Plus and MIFARE Classic), 13.56 MHz
Operation Mode Fingerprint Only, Card + Fingerprint, Card Only
Fingerprint Enrollment (Fingerprint Only Mode) TCP/IP
(Fingerprint + Card Mode)
Firmware Upgrade TCP/IP
Number of Fingerprints Stored 1,900 (for Fingerprint Only mode)
Standalone Function Yes (for Fingerprint Only mode)
Operating Temperature 0 ~ 50° C (32 ~ 122° F)
Humidity 10% ~ 90% (no condensation)
Power DC 7 ~ 15V, Max 250mA
Dimensions (H x W x D) 138 x 59 x 48 mm (5.43 x 2.32 x 1.89 in)
Weight 130 g (0.29 lb) 160 g (0.35 lb)
Certification CE, FCC
1. For data synchronization with GV-ASController and GV-ASManager through the Ethernet, it only supports the following controller firmware version and software version:
* GV-ASManager: V4.0 or later
* GV-AS210 / 410 / 810: V1.1 or earlier
2. GV-GF1921 / 1922 do not support third-party controllers.
3. All specifications are subject to change without prior notice.
