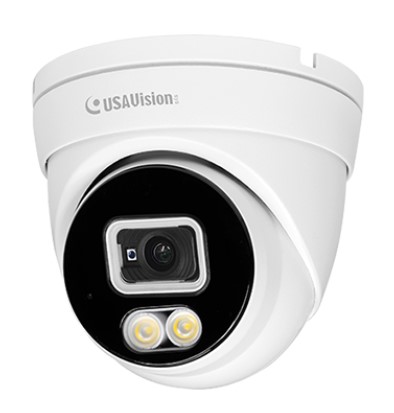

Geovision UA-CR250F2 H.265 Full Color IR Eyeball IP Dome


$43.75


Availability: In Stock
List Price: $100.00
SKU: WEC-CR250F2
Product #: 118625
Manufacturer:
Camera Type: Eyeball Dome
Camera Signal: IP
Lens Size: 2.8mm

Remote Login Support:
Quantity

UA-CR250F2 is an outdoor, 2 MP HD Analog Camera with an automatic IR-cut filter. It is built in 2 IR LEDs and 2 full-color warm LEDs to enhance the accuracy of day and night surveillance. The IR illumination can reach up to 30 m (100 ft) while the warm LED is up to 20 m (65 ft). The camera adheres to IP66 standards and supports a 4-in-1 video output (TVI / AHD / CVI / CVBS). With its WDR, it can process scenes with contrasting intensity of lights and produce a clear image. Integrated with USAVision Standalone Video Recorder (UA‐XVL810, UA‐XVL1610 and UA‐XVR810), it supports real-time alert, event playback and more.

Models

Model UA-CR250F2
Iris Fixed
Focal Length (mm) 2.8mm
Horizontal FOV 95°
Maximum Aperture F/1.0
Image Format 1/3"

Key Features


  • 1/3" progressive scan CMOS sensor
  • Full Color smart warm LED
  • IR distance up to 30 m (100 ft)
  • Built-in microphone
  • Ingress protection (IP66)
  • 4 in 1 (TVI / AHD / CVI / CVBS)

Note:
  • All specifications are subject to change without notice.


Overview


Accessories



Model No Name Details
UA-Mount215 Wall Box Mount Dimensions: 155 x 75 x 132 mm (6.1" x 2.95" x 5.2")
Weight: 0.62 kg (1.37 lb)
UA-Mount505 Wall Mount Bracket Dimensions: Ø 100.5 x 56 mm (Ø 3.96" x 2.2")
Weight: 0.46 kg (1.01 lb)
UA-Mount922 Power Box Mount Bracket Dimensions: Ø 148.00 mm (Ø 5.83")
Weight:180 g (0.4 lb)
