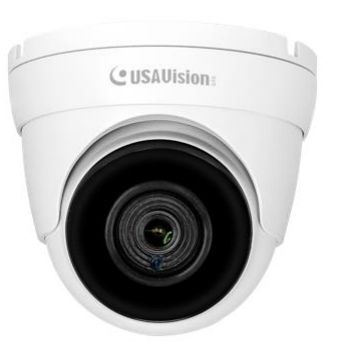

Geovision UA-CR200F2 l 2 MP Super Low Lux WDR IR Eyeball Dome Camera


$33.75


Availability: In Stock
List Price: $86.00
SKU: UA-CR200F2
Product #: 118828
Manufacturer:
Camera Type: Eyeball Dome
Camera Signal: IP
Lens Size: 2.8mm

Remote Login Support:
Quantity

UA-CR200F2 is an outdoor, 2 MP HD Analog Camera with an automatic IR-cut filter. It is built in 18 IR LEDs for day and night surveillance, with IR illumination reaching up to 20 m (65 ft). The camera adheres to IP66 standards and supports a 4-in-1 video output (TVI / AHD / CVI / CVBS). Integrated with USAVision Standalone Video Recorder (UA‐XVL810, UA‐XVL1610 and UA‐XVR810), it supports real-time alert, event playback and more.

Models

Model UA-CR200F2
Iris Fixed
Focal Length (mm) 2.8mm
Horizontal FOV 88.24°
Maximum Aperture F/2.2
Image Format 1/3"

Key Features


  • 1/3" progressive scan CMOS sensor
  • IR distance up to 20 m (65 ft)
  • Built-in microphone
  • Ingress protection (IP66)
  • 4 in 1 (TVI / AHD / CVI / CVBS)

Note:
  • All specifications are subject to change without notice.


Overview


Accessories


  • Model No Name Details
    UA-Mount215 Wall Box Mount Dimensions: 155 x 75 x 132 mm (6.1" x 2.95" x 5.2")
    Weight: 0.62 kg (1.37 lb)
    UA-Mount505 Wall Mount Bracket Dimensions: Ø 100.5 x 56 mm (Ø 3.96" x 2.2")
    Weight: 0.46 kg (1.01 lb)
    UA-Mount922 Power Box Mount Bracket Dimensions: Ø 148.00 mm (Ø 5.83")
    Weight:180 g (0.4 lb)



PACKING LIST:

  • UA-CR200F2
  • Screw Kit
  • Drill Template Paster
  • Download Guide

Note:

  • All specifications are subject to change without notice.
