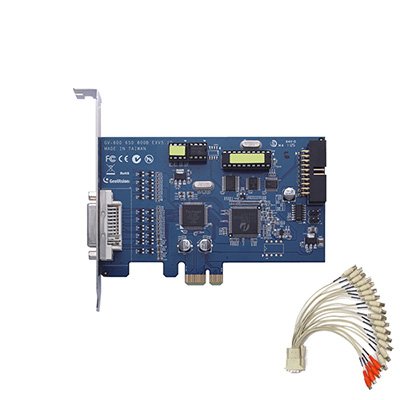

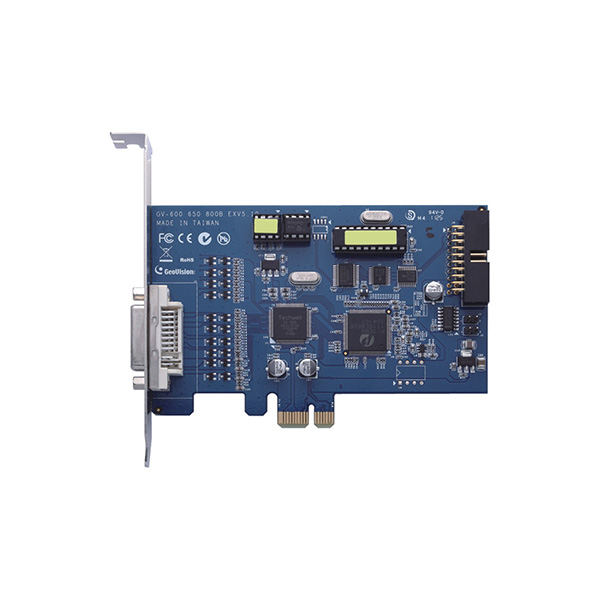

Geovision GV-600B 16 Channel Video Capture DVR Card GV600B with version V8.5 Complete Webcam Software Suite Included

DVR sometimes referred to by the merchandising term personal video recorder  is a consumer electronics device or application software that records video in a digital format to a disk drive, USB flash drive, SD memory card, SSD or other local or networked mass storage device. The term includes set-top boxes (STB) with direct to disk recording facility, portable media players (PMP) with recording,TV gateways with network and local recordings, recorders (PMR) as camcorders that record onto Secure Digitalmemory cards and software for personal computers which enables video capture and playback to and from ahard disk drive.This simple, affordable DVR card will give you the power to record 16 channels of clear video straight to your computer. It has all the necessary software for using your computer as a DVR so you can record and monitor surveillance footage from the comfort of your PC. This card is much more affordable than a 16-channel DVR and it may be more convenient because it will turn your computer into a recorder and monitor in one! FPS or Frames Per Second refers to the speed at which the camera records and plays back video. At 30fps, the live video display and playback is completely fluid just like a television show. Slower speeds mean less fluid video, resulting in "choppier" playback. For a system with a PC Card, the card controls how many FPS can be recorded at once, and these must be split evenly between the number of cameras plugged into the card. For example, if you use a 20fps card and plug 16 cameras into it, each camera only records/plays back at 1.25fps (very choppy). If you use a 480fps card with 16 cameras, each camera gets 30fps and video playback is very smooth.The more FPS, the more powerful the card will be, and the smoother the video will be. For best performance, we recommend selecting the system that has the highest total FPS and trying to get as close to 30fps per camera as your budget will allow.  As consumers have been able to converge increasing amounts of video content on their set-tops, delivered by traditional ‘broadcast’ cable, satellite and terrestrial as well as IP networks, the ability to capture programming and view it whenever they want has become a must-have function for many consumers.

DVR sometimes referred to by the merchandising term personal video recorder  is a consumer electronics device or application software that records video in a digital format to a disk drive, USB flash drive, SD memory card, SSD or other local or networked mass storage device. The term includes set-top boxes (STB) with direct to disk recording facility, portable media players (PMP) with recording,TV gateways with network and local recordings, recorders (PMR) as camcorders that record onto Secure Digitalmemory cards and software for personal computers which enables video capture and playback to and from ahard disk drive.This simple, affordable DVR card will give you the power to record 16 channels of clear video straight to your computer. It has all the necessary software for using your computer as a DVR so you can record and monitor surveillance footage from the comfort of your PC. This card is much more affordable than a 16-channel DVR and it may be more convenient because it will turn your computer into a recorder and monitor in one! FPS or Frames Per Second refers to the speed at which the camera records and plays back video. At 30fps, the live video display and playback is completely fluid just like a television show. Slower speeds mean less fluid video, resulting in "choppier" playback. For a system with a PC Card, the card controls how many FPS can be recorded at once, and these must be split evenly between the number of cameras plugged into the card. For example, if you use a 20fps card and plug 16 cameras into it, each camera only records/plays back at 1.25fps (very choppy). If you use a 480fps card with 16 cameras, each camera gets 30fps and video playback is very smooth.The more FPS, the more powerful the card will be, and the smoother the video will be. For best performance, we recommend selecting the system that has the highest total FPS and trying to get as close to 30fps per camera as your budget will allow.  As consumers have been able to converge increasing amounts of video content on their set-tops, delivered by traditional ‘broadcast’ cable, satellite and terrestrial as well as IP networks, the ability to capture programming and view it whenever they want has become a must-have function for many consumers.

This simple, affordable DVR card will give you the power to record 16 channels of clear video straight to your computer. It has all the necessary software for using your computer as a DVR so you can record and monitor surveillance footage from the comfort of your PC. This card is much more affordable than a 16-channel DVR and it may be more convenient because it will turn your computer into a recorder and monitor in one!

v8.5 Installation Guide	v8.5 New Feature Guide
v8.5 Compatible with Windows XP / Vista / Windows 7 32bit & 64bit

Download Product Brochure

[Click Here for More Geovision Detailed Information]

Our package pricing is unbeatable!
These prices are for the card and software and do not include the PC or cameras.

GV Mobile Phone Applications Download GV-AView V1 for Android (installation guide pdf)   GV-iView V2.11 for iPhone and iPod Touch   GV-Remote View for BlackBerry - BlackBerry OS V4.x.x - BlackBerry OS v5.0   GV-GView V2 for Win PDA Win Mobile 5.0 and 2003 for Pocket PC Win Mobile 6 / 6.1 Classic and Professional   GV-MSView for Win Smartphone - GV-MSView V2 (Win Mobile 5.0) - GV-MSView V3 (Win Mobile 6 / 6.1)   SSView V3 for Symbian Nokia S60 2nd & 3rd Edition

GV-600B GV-600B x 2 Interface PCI, PCI-E (x1) PCI-E (x1) x 2, PCI x 1 + PCI-E (x1) x 1 Input Type DVI Video Input 4, 8, 16 Cams 8, 12, 16, 20, 24, 32 Cams Audio Input 4 Channels 8 Channels Recording Rate CIF NTSC 4-port: 30 fps 16-port: 30 fps 4+4 port: 60 fps 16+16 port: 60 fps PAL 4-port: 25 fps 16-port: 25 fps 4+4 port: 50 fps 16+16 port: 50 fps D1 NTSC 4-port: 30 fps 16-port: 15 fps 4+4 port: 60 fps 16+16 port: 30 fps PAL 4-port: 25 fps 16-port: 12.5 fps 4+4 port: 50 fps 16+16 port: 25 fps Display Rate CIF NTSC 4-port: 30 fps 16-port: 30 fps 4+4 port: 60 fps 16+16 port: 60 fps PAL 4-port: 25 fps 16-port: 25 fps 4+4 port: 50 fps 16+16 port: 50 fps D1 NTSC 4-port: 30 fps 16-port: 15 fps 4+4 port: 60 fps 16+16 port: 30 fps PAL 4-port: 25 fps 16-port: 12.5 fps 4+4 port: 50 fps 16+16 port: 25 fps Video Resolution NTSC 704 x 480, 704 x 480 De-interlace, 640 x 480, 640 x 480 De-interlace, 352 x 240, 320 x 240 PAL 704 x 576, 704 x 576 De-interlace, 640 x 480, 640 x 480 De-interlace, 352 x 288, 320 x 240 Video Compression Format Geo MPEG4, Geo H264 Audio Compression Format AAC (16kHz / 16 bit) GV-NET/IO Card Support Yes Dimensions (W x H) PCI 120 x 65 mm / 4.7 x 2.5 in PCI-E 120 x 82 mm / 4.7 x 3.2 in Installation Guide GV-600B Note: 1. GV-600B is currently not compatible with VIA series and ATI series chipset motherboards. 2. 8-port has the same recording rate and display rate as 16-port. 3. Specifications are subject to change without notice. Minimum System Requirements For One Card OS Supported 32-bit Windows XP / Windows Vista / Windows 7 / Windows Server 2008 64-bit Windows 7 / Windows Server 2008 CPU Pentium 4, 2.0 GHz RAM Windows XP: 2 x 512 MB Dual Channels Windows Vista / 7 / Server 2008 : 2 x 1 GB Dual Channels HDD 80 GB Graphic Card AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended), 32-bit color DirectX 9.0c Minimum System Requirements For Two Cards OS Supported <32-bit Windows XP / Windows Vista / Windows 7 / Windows Server 2008 64-bit Windows 7 / Windows Server 2008 CPU Pentium 4, 2.6 GHz with Hyper Threading RAM 2 x 1 GB Dual Channels HDD 160 GB Graphic Card AGP or PCI-Express, 800 x 600 (1280 x 1024 recommended), 32-bit color DirectX 9.0c

Frames Per Second Captured/Displayed
FPS or Frames Per Second refers to the speed at which the camera records and plays back video. At 30fps, the live video display and playback is completely fluid just like a television show. Slower speeds mean less fluid video, resulting in "choppier" playback. For a system with a PC Card, the card controls how many FPS can be recorded at once, and these must be split evenly between the number of cameras plugged into the card.

For example, if you use a 20fps card and plug 16 cameras into it, each camera only records/plays back at 1.25fps (very choppy). If you use a 480fps card with 16 cameras, each camera gets 30fps and video playback is very smooth.

The more FPS, the more powerful the card will be, and the smoother the video will be. For best performance, we recommend selecting the system that has the highest total FPS and trying to get as close to 30fps per camera as your budget will allow.
