        GV-QSD5730-In Ceiling

        SKU: 84-QSD5730-0010
        Geovision
        SKU: 84-QSD5730-0010
          • 20% less
          Market price:$1986.06 save $397.21
        • $1588.85

        OR

        ORDERING NUMBER:125-QSD5730-000
        SKU:84-QSD5730-0010
        UPC:4712896442067

        Overview

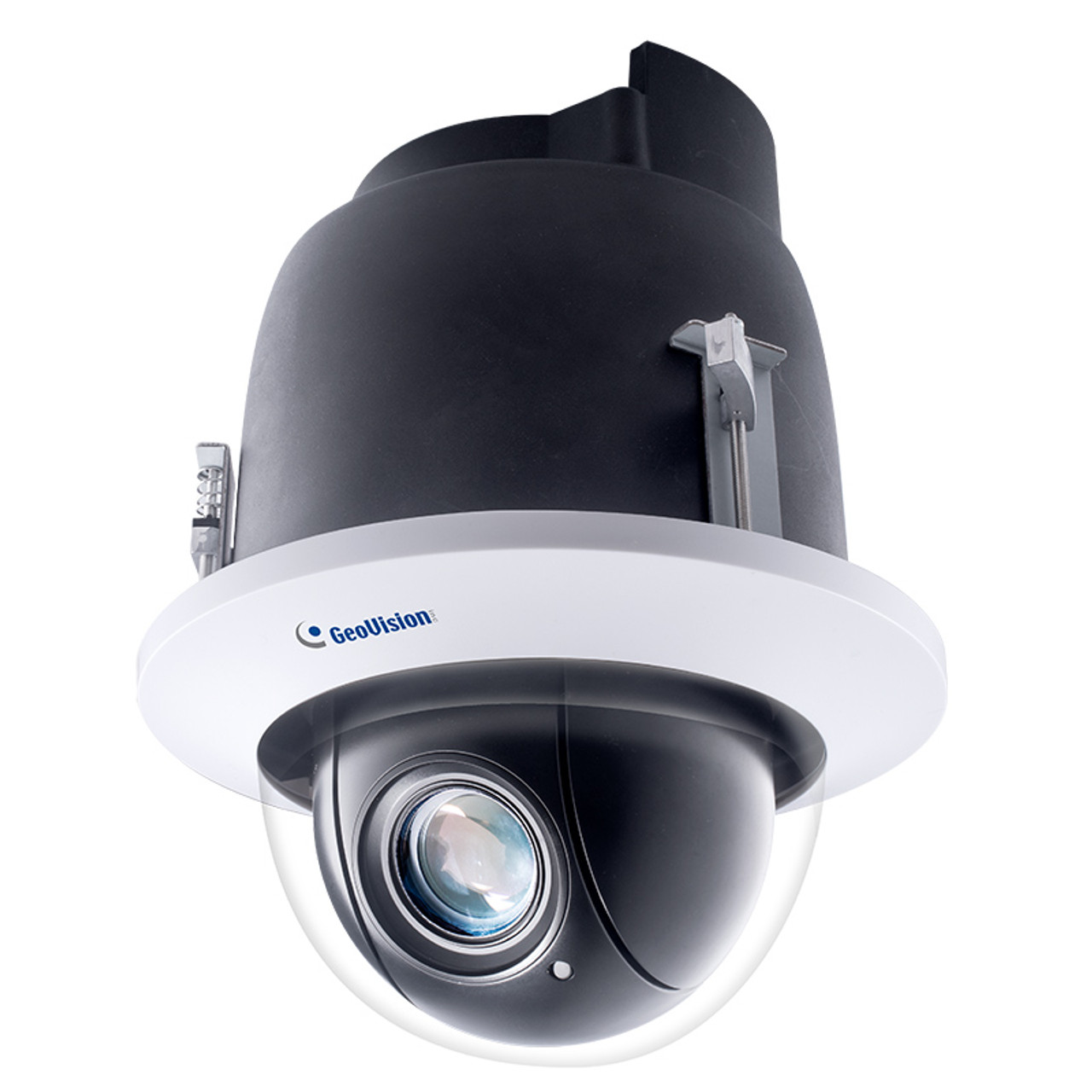

        The GV-QSD5730 is a high-performance indoor PTZ (pan-tilt-zoom) network speed dome camera with 5 MP resolution and a powerful 33× optical zoom. It features 360° endless pan, advanced image stabilization, and flexible streaming capabilities, making it ideal for large indoor areas such as malls, lobbies, casinos, or warehouses.


        Main Specifications

        • Image Sensor: 1/2.8″ progressive-scan low-light CMOS

        • Maximum Resolution: 2592 × 1944 (5 MP) at 30 fps

        • Optical Zoom: 33× (4.6 mm to 152 mm), plus digital zoom

        • Minimum Illumination: 0.02 lux (color), 0.002 lux (B/W)

        • Aperture: F/1.6

        • Field of View: Horizontal FOV from 55.4° to 1.9°

        • Video Compression: H.265, H.264, MJPEG

        • Streams: Supports quad streaming

        • Wide Dynamic Range: WDR Pro


        PTZ Features

        • Pan Range: 360° endless

        • Tilt Range: –10° to 100°

        • Pan Speed: Up to 400°/sec

        • Tilt Speed: Up to 300°/sec

        • Accuracy: 0.1° positioning

        • Preset Positions: Up to 256

        • PTZ Functions: Cruise, patrol, auto pan, auto tracking

        • Servo Feedback: Returns to original position if disrupted

        • EIS (Electronic Image Stabilization): Yes


        Image Enhancements

        • 3D Noise Reduction: Yes

        • Privacy Masking: Configurable zones

        • Day/Night Mode: Mechanical IR-cut filter

        • Backlight Compensation & Defog: Supported


        Audio and Storage

        • Audio: Two-way audio supported (external mic/speaker required)

        • Audio Codecs: G.711, G.726, LPCM, AAC

        • Local Storage: microSDHC / SDXC slot (Class 10)

        • Alarm I/O: 4 sensor inputs, 2 alarm outputs

        • TV-Out: BNC connector


        Networking and Security

        • Ethernet: 10/100 Base-T, RJ-45

        • PoE Support: PoE+ (IEEE 802.3at) or AC 24V

        • Protocols: IPv4, IPv6, SNMP, HTTPS, RTSP, TCP, UDP, FTP, and others

        • Security: SSL, 802.1x authentication

        • ONVIF Compliance: Profiles G, S, and T

        • IoT Security Certification: TAICS Certified


        Environmental and Mechanical

        • Operating Temperature: –25°C to 50°C

        • Humidity: 10% to 90% (non-condensing)

        • Power Consumption: Approx. 25.4W

        • Dimensions: 212 mm (diameter) × 264 mm (height)

        • Weight: Approx. 2.6 kg


        Summary

        The GV-QSD5730 is designed for detailed and wide-area indoor surveillance. With a high-resolution sensor, powerful zoom capabilities, and smooth PTZ controls, it enables advanced tracking and real-time situational awareness. It supports modern network protocols, secure connections, and is built to integrate easily into existing VMS and NVR systems.

          • SKU
            84-QSD5730-0010
          • Barcode
            4712896442067
          • Manufacturer Part #
            125-QSD5730-000
        • Manufacturer
          Geovision
