ORDERING NUMBER: 510-SRK1356-000
SKU: 84-SRK1356-0010
UPC: 4711280522040

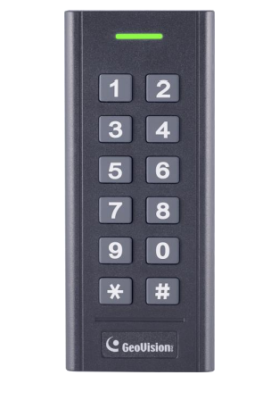

The GV-SRK1356 is a dual-band OSDP keypad reader designed for access control systems. It's capable of reading both PIN codes and access cards, offering flexibility for integrators to address card management challenges in various locations. The reader supports both 125 kHz and 13.56 MHz frequencies, making it compatible with a wide range of cards.
The GV-SRK1356 is built for outdoor use, featuring a weather-sealed and IP66-compliant housing, ensuring its reliability in challenging environments. It operates on a DC 12-18V power supply and draws a maximum current of 50 mA. The reader has a reading range of 2-4 cm for both 125 kHz and 13.56 MHz cards.
The GV-SRK1356 incorporates a Wiegand interface, supporting 26 bits for 125 kHz cards and 26/34 bits for 13.56 MHz cards. This allows for communication and data exchange with other access control components. The reader's operating temperature range is -40°C to 60°C, making it suitable for a variety of climates. It can operate at humidity levels ranging from 0% to 98% RH.

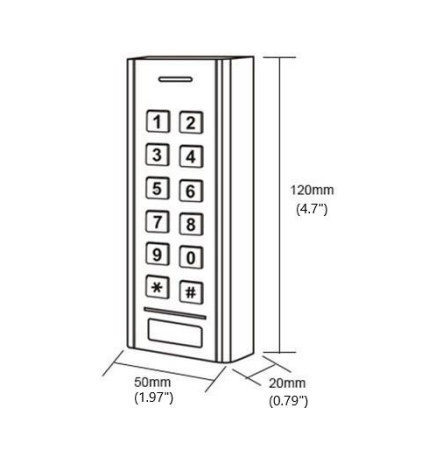

The GV-SRK1356 is a compact reader with dimensions of 120 x 50 x 20 mm and weighs 150 g. It comes in a black color, blending seamlessly with various environments. The reader includes a green LED light for indicating card access and a buzzer for providing audible feedback.
The GV-SRK1356 is a versatile and reliable access control reader designed for both indoor and outdoor applications. Its dual-band capability, weatherproof housing, and comprehensive features make it a suitable choice for various security systems.
Please contact a Worldeyecam representative if you have any further questions or if you need a quotation.
Datasheet_SRK1356.pdf224.6 kB
