Electromagnetic Lock with built-in voltage spike suppressor, can be applied for single-leaf or double leaf doors


Availability: In Stock
Ships within 1 to 12 Hours
List Price: $210.00
Product #: 85609

Remote Login Support:

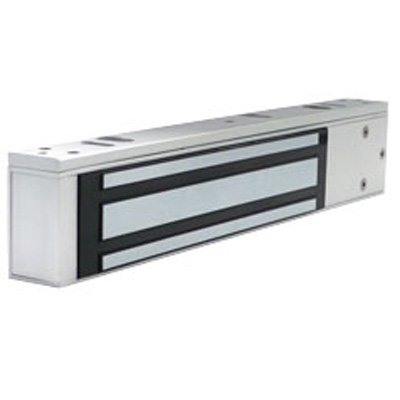

The GV-ML600 is a surface mount electromagnetic lock featured with a built-in voltage spike suppressor. It can be applied for single-leaf or double-leaf doors.


Voltage DC 12V / 24V
Current 500mA at 12V / 250mA at 24V
Holding Force 272.15 kg (600 lb)
Dimensions (L x W x H) 250 x 47.2 x 26.6 mm (9.84" x 1.86" x 1.05")
Armature Plate Dimensions
(L x W x H)
185 x 38 x 12.5 mm (7.28" x 1.50" x 0.49")
Weight 2.2 kg (4.85 lb)
Certification CE, UL
Installation Guide
