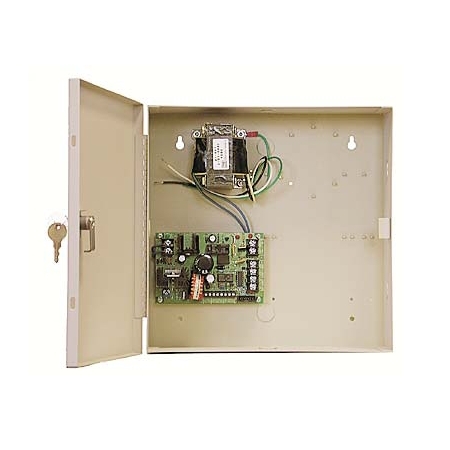

CPS400C-UL/CSA 12/24V Field Selectable,4 Amps, Key Lockable Cabinet
12/24 VDC, 4 amp switching power supply is agency listed for access control (UL 294 and CSA Certified). Features include field selectable voltage, power limited output, Form “C” relay fault reporting, visual fault indication and an additional output for Fire Alarm Interface (FAI). Systems integration applications include system power, door strikes, mag locks, card readers and fire alarm interface for emergency exit.
Features
Specifications
12/24 VDC, 4 amp switching power supply is agency listed for access control (UL 294 and CSA Certified). Features include field selectable voltage, power limited output, Form “C” relay fault reporting, visual fault indication and an additional output for Fire Alarm Interface (FAI). Systems integration applications include system power, door strikes, mag locks, card readers and fire alarm interface for emergency exit.
Features
- Visual fault indication
- Relay Fault Output
- Class 2, power limited
- Switching technology
- Controlled current battery charging
- Additional output for Fire Alarm Interface (FAI)
- Short circuit protection
- Thermal protection
- Reverse polarity protection (PTC)
- UL-294
- CSA
- Limited Lifetime warranty
Specifications
- Input voltage: 120 VAC
- Input current: 1.7 Amp
- Output voltage: 12/24 VDC, Field selectable
- Output current rating: 4 amps continuous
- 1 Standard uncontrolled output
- 1 Fire Alarm Interface controlled output
- Ripple: < 0.240VAC p-p
- Operating Temperature : 0 °C to 50 °C
- Humidity : 85% @ 30 °C
- Maximum Battery Capacity : 14 AH
- Electronically regulated and filtered output
- Visual fault indicators :
- AC presence: Green LED
- DC presence: Red LED
- Fault Reporting:
- AC Loss
- Low Battery
- High/Low DC
- Board Dimensions 4.25” W x 5.75”L
- Cabinet Dimensions CPS400C-UL/CSA - 12”W x 12” x 4”H
