CH-1 CVS Empty Single Card Chassis
        • CH-1 CVS Empty Single Card Chassis
        • CH-1 CVS Empty Single Card Chassis

        CH-1 CVS Empty Single Card Chassis

        SKU: WECCH-1
        CVS
        SKU: WECCH-1

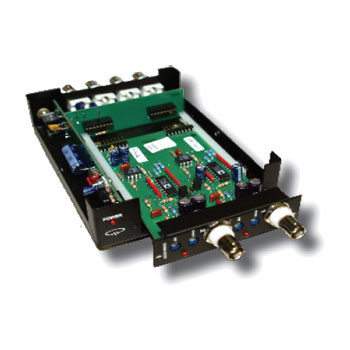

        This Product Compu-Video System’s CH-1 is a 1 card, space saving card frame chassis. It is compatible with all CH-16 and CH-32 Cards. The unit can be table top or wall mounted and includes a 12VDC @ 500mA UL listed power supply. For 1x2 operation use only the outputs needed and simply leave the unused ones unterminated. A UL listed power supply is included with the CDA-43 . it has Inputs - Composite Video & Input Level - 1vpp Into 75 Ohms with Input Connectors - Terminal Strip it has Input Connectors - 2pos. Terminal Strip it has Frequency Response - 30mHz +/- 0.7dB it is Gain - Unity +/-3% and Differential Gain - <0.5% it is Differential Phase Error - <0.5 degrees with Max H Tilt - <1% and Max V Tilt - <1% it has Switches - Momentary NO Push Button Switch& DC Operation - 12 to 18VDC Isolated Source It has Indicators - LED lamp for each input, power it is Remote Control - External NO contacts it has Auto Select - NO alarm Inputs and Power Connector - 3.5mm
          • 25% less
          Market price:$150.00 save $37.50
        • $112.50

        OR
        This Product Compu-Video System’s CH-1 is a 1 card, space saving card frame chassis. It is compatible with all CH-16 and CH-32 Cards. The unit can be table top or wall mounted and includes a 12VDC @ 500mA UL listed power supply. For 1x2 operation use only the outputs needed and simply leave the unused ones unterminated. A UL listed power supply is included with the CDA-43 . it has Inputs - Composite Video & Input Level - 1vpp Into 75 Ohms with Input Connectors - Terminal Strip it has Input Connectors - 2pos. Terminal Strip it has Frequency Response - 30mHz +/- 0.7dB it is Gain - Unity +/-3% and Differential Gain - <0.5% it is Differential Phase Error - <0.5 degrees with Max H Tilt - <1% and Max V Tilt - <1% it has Switches - Momentary NO Push Button Switch& DC Operation - 12 to 18VDC Isolated Source It has Indicators - LED lamp for each input, power it is Remote Control - External NO contacts it has Auto Select - NO alarm Inputs and Power Connector - 3.5mm it is High Freq. Boost - Type 0+/- 10dB And it is Power / Supply Hum - <63dB it has H Tilt - <1% with V Tilt - <1% it has High Freq. Boost - Typ. 0 - +10d it has Weight - 1.0lbs it has Size - 5.50”W, 6.25”D, 1.6”H and it has High Freq. Boost - Type 0+/- 10dB it has Crosstalk Between CH - >60dB @ 3.58mHz it has AC Operation - Use CVT-1250 Adapter Supplied With Unit and it is Power Connector - 3.5mm Phono Plug
