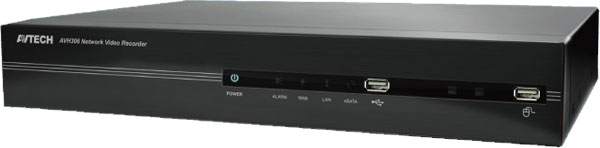

        AVH306 - Network Video Recorder - Auto Detects IP Cameras!

        SKU: AVH306
        AVTECH
        SKU: AVH306
        Auto IP Configuration: Discovers IP cameras in about 90 seconds! 6 to 12 Channel support. 1080P High Definition Output Dual recording - Records QVGA on timer/manual record, when an event is detected the recording switches to Megapixel resolution for the best quality. Full D1 or Megapixel resolution. Supports local storage to a hard drive or remote NAS backup. Full mobile compatibility - Supports iOS (iPhone, iPad) and Android devices.
          • 85% less
          Market price:$3200.00 save $2731.00
        • $469.00

        OR
        Features
        • Auto IP Configuration: Discovers IP cameras in about 90 seconds!
        • 6 channel support.
        • 1080P High Definition Output
        • Dual recording - Records QVGA on timer/manual record, when an event is detected the recording switches to Megapixel resolution for the best quality.
        • Full D1 or Megapixel resolution.
        • Supports local storage to a hard drive or remote NAS backup.
        • Full mobile compatibility - Supports iOS (iPhone, iPad) and Android devices.
        >> Key Features <<
        1. High Resolution Recordings
        AVTECH NVR and Megapixel IP camera solution enables you to upgrade your surveillance system easily, which brings you clear images for video recording and playback.

        2. Easy Upgrade to IP Surveillance System
        To help users to upgrade analog signals to digital signals, we have adopted Plug-and-Play technology to simplify the complicated network configurations in three steps. As a result, it is easy to set up as CCTV products.

        3. HDMI TV Video Out
        We support 1920*1080 REAL HDMI service, giving the best image quality on LCD / LED monitors.

        4. Multi-platform Remote Access
        To access a single IP device, you may use iPhone or Android Mobile devices with “EagleEyes”;
        To access 4, 9, 16 IP devices all at a time, you may use iPad with “EagleEyes HD-Plus”.

        5. Smart Recording
        AVTECH NVR adjusts the video resolution to optimize the recording efficiency of HDD. At normal time, NVR supports QVGA, while an event occurs, it will perform megapixel recording to get the best with picture quality as evidence.

        6. High Compatibility and Offsite Backup
        AVTECH NVR is going to support nearly every mainstream IP camera in the market in the near future to enhance users’ demands for our NVR. It also serves as a NAS for all kinds of IP cameras and AVTECH NVR on the Internet for offsite backup.

        Specifications:

        Hardware
        Video InputOne LAN port Up to 6 Channels with a 6-port hub
        Video OutputHDMI
        Video Output Resolution1920 x 1080
        Audio InputYES
        Audio OutputYES (Line Out / HDMI)
        HDD StorageUp to two 3TB HDDs
        USB PortsTwo on the front panel:
        one for video backup to USB flash drive, andanother for NVR control via a USB mouse
        IR Remote ControlYES
        EthernetLAN port : 1000Mbps
        Internet port : 10Mbps / 100Mbps
        Software
        Video Compression FormatH.264 / MPEG4 / MJPEG
        Recording ModeManual / Event / Alarm / Schedule
        Pre-alarm RecordingYES
        Quick SearchTime / Motion / Alarm
        SecurityMultiple user access levels with password
        Remote Access(1) Internet Explorer on Windows operation system
        (2) EagleEyes on iPhone, iPad & Android mobile devices
        General
        Power Source (±10%)DC 19V / 2.1A
        Operating Temperature10 ~ 40 (50 ~104 )
        Dimensions (mm)375(W) × 55(H) × 264(D)
        Minimum PC Browsing Requirements'Pentium 4 CPU 1.3 GHz or higher, or equivalent AMD
        '256 MB RAM
        'AGP graphics card, Direct Draw, 32MB RAM
        'Windows 7, Vista & XP, DirectX 9.0 or later
        'Internet Explorer 7.x or later
        Supported Peripherals(1) AVX912 EoC converter
        (2) AVX913 HDMI Extender
        (3) AVX931 Video Server

        Get Event Video Call in 5 Seconds. It’s just like having a Private Guard!

        Why do you needPush Video?

        Ï Because I am NOT a security guard to monitor my property all the time. I want to get NOTIFIED when something happens!
        Ï Because I want to PLAYBACK to see who triggered the alarm, not the Live video without intruder in the picture!
        Ï Because JEPG picture is never taken at a right target and I prefer VIDEO to know more detail!
        Ï Because what I truly need is instant video notifications, instead of notification messages or emails.


        Application Scenarios

        Home

        Office / Factory

        Store / Warehouse

        Garage / Garden

        Do you have iPhone, iPad or Android Mobile devices?Push Video Series IP camera, could be your tireless housekeeper who renders a great service, including sending instant notifications and play event video clips on your Mobile Devices, and you will never miss the important moment.


        Impressive Features

        Push Video

        Memory
        Record

        Human Detection Sensor (AVN805)

        Alarm I/O
        Interface

        Easy
        Setup

        Multi-Platform

        H.264
        Compressive

        Digital PTZ

        IR Shifter
        (AVN807)

        IR LED


        1. PUSH VIDEO

        When an event happens and is detected by our Push Video IP camera, the camera will immediately send an event notification to your mobile phone which will then activate our mobile app, EagleEyes, automatically for remote video playback within 5 seconds.


        2. Multi-platform Support for Mobile Surveillance

        iPad & Android is supported to fulfill various users' demands. Our self-developed mobile app, "EagleEyes", can be installed on your mobile phone for remote surveillance at anytime, from anywhere.

        World’s 1st iPad monitoring app EagleEyesHD to support real 1280x1024 resolution!


        3. Digital PTZ:
        To see more details, Digital PTZ allows users to move up / down and left / right after zoom in on an object.


        4. External Alarm I/O Accessories

        Push Video IP cameras support all kinds of N.O. / N.C. type alarm sensors; for example, active infrared sensor, smoke detector, magnetic contacts and so forth to extend the flexibility of IP surveillance.


        5. Powerful Storage & Offsite Backup

        This series of products supports not only basic recording but also powerful storage and offsite backup functionality with NVR+NAS Hybrid system.


        6. AVTECH DDNS Server:
        AVTECH DDNS service is rendered free of charge, so user can get DDNS service by quick signup, ridding of filling in personal information.


        7. Image Comparison

        Day View (AVN807)

        Night View

        During day time surveillance, the image quality of Push Video IP camera series is relatively better than other brand’s IP camera because this camera series is equipped with a IR Shifter, Live MOS image sensor and Uniphier DSP (manufactured from a famous Japanese component supplier). At night, the surveillance area could be illuminated with IR LEDs to provide sharp and clear images.
