Louroe ASK-4 #122 Audio Monitoring Kit

        Louroe ASK-4 #122 Audio Monitoring Kit

        SKU: LE-393
        Louroe Electronics
        SKU: LE-393
        AP-2:
        Line level audio output (RCA) to DVR
        Base station with 3” speaker for monitoring live audio and playback from a DVR
        Durable, high impact ABS housing
        3.5 mm headphone jack for private listening
        Verifact® A:
        Omni-directional, within 30′ diameter circle
        High impact anti static ABS microphone housing
        Can be placed up to 1000′ away from the base station and is connected with 22/2 shielded cable
          • 33% less
          Market price:$813.29 save $265.95
        • $547.34

        OR
        • Audio output (RCA) to DVR, VCR
        • Omni-directional microphone can pick up normal sounds 15' away if wall mounted, or within a 30' diameter circle if ceiling mounted
        • 3" speaker for monitoring live audio and playback from a DVR or VCR
        • 3.5 mm headphone jack for private listening
        • Microphone may be mounted up to 1000’ from the AP-2 Base Station
        AP-2:
        Line level audio output (RCA) to DVR
        Base station with 3” speaker for monitoring live audio and playback from a DVR
        Durable, high impact ABS housing
        3.5 mm headphone jack for private listening
        Verifact® A:
        Omni-directional, within 30′ diameter circle
        High impact anti static ABS microphone housing
        Can be placed up to 1000′ away from the base station and is connected with 22/2 shielded cable

        The ASK-4®#122 is a two zones audio monitoring kit compatible with most recorders. The kit is designed for audio monitoring and for interfacing with a DVR. It is ideal for Live Monitoring Systems. The AP-2 desktop base unit has a speaker for monitoring live audio and playback. It contains a mute switch to mute both live and playback audio. The two Verifact® A microphones are designed for ceiling mount applications.

        The ASK-4 #122 is a two-zone audio monitoring system. It is designed for audio monitoring and interfacing with DVR’s, VCR’s or other audio devices that accept line level input. The microphone can be ceiling or wall mounted and provides a 30 foot diameter circle coverage. The desk top audio base station (AP-2) contains a 3" speaker for monitoring live audio and playback from a DVR or VCR. AP-2 will accommodate 2 microphones and zone selection is by pushbutton. Contains Mute/Playback switch that mutes audio from remote microphones. Microphone is pre-amplified and produces line level output.

        Dimensions:
        Microphone- 4″ Diag. x 1.5″ H
        Base Station- 6.750” W x 8.625” L x 2.125” H”

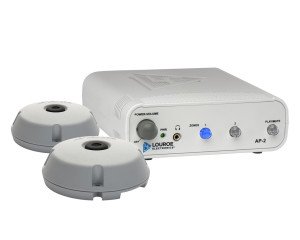

        KIT CONTENTS
        • 2 Verifact Model A Electret Condenser Microphone for surface mounting to ceiling
        • Model AP-2 Audio Base Station
        • Model AD-1 12Vdc power supply
        • Dual RCA cables for connection to DVR/VCR

        APPLICATION
        The ASK-4 #122 is designed for numerous applications such as:
        • Convenience Stores
        • Fast Food Restaurants
        • Booking Rooms
        • Interrogation Rooms
        • Car dealership sales contract rooms
        • Child Abuse Interviews
        • Sleep Disorder Centers
        • Speech Therapy Labs
        • Cashier Booths
        • Day Care Centers

        SPECIFICATIONS (AP-2)
        Monitor power output1W @ 8W
        Audio output impedance1KW
        Audio input impedance10kW
        Freq. response100 Hz to 10kHz
        Headphone impedance8 to 600W
        Current Drain200mA
        Power input12 Vdc, 500mA
        Dimensions6 5/8"W x 8 5/8"L x 2 1/8"H
        Weight1lb 5oz

        SPECIFICATIONS - Verifact A
        TypeElectret Condenser
        Frequency response40 Hz to 15 kHz ± 1 dB
        OutputLine Level (0dBV, 600?@ 1kHz)
        Current drain10 mA
        Supply voltage12 Vdc
        Microphone housingHigh impact anti-static ABS
        Dimensions4” dia x 1 ½ H
        Weight3.5 oz
        Weight (Shipping) of kit3 lbs

        ask4_122_inst_1_15.pdf

        ask-4-kit_122_spec_1_15.pdf
