Louroe ASK-4 #102 Audio Monitoring Kit
        • Louroe ASK-4 #102 Audio Monitoring Kit
        • Louroe ASK-4 #102 Audio Monitoring Kit

        Louroe ASK-4 #102 Audio Monitoring Kit

        SKU: LE-016
        SKU: LE-016
        APR-1: Line level audio output (RCA) to DVR Base station with 3” speaker for monitoring live audio and playback from a DVR Durable, high impact ABS housing 3.5 mm headphone jack for private listening Verifact® D: Omni-directional, within 30′ diameter circle Stainless steel, single gang faceplate Can be placed up to 1000′ away from the base station
          • 33% less
          Market price:$449.90 save $147.11
        • $302.79

        OR
        • Audio output (RCA) to DVR, VCR
        • Omni-directional microphone can pick up normal sounds 15' away if wall mounted, or within a 30' diameter circle if ceiling mounted
        • 3" speaker for monitoring live audio and playback from a DVR or VCR
        • 3.5 mm headphone jack for private listening
        • Microphone may be mounted up to 1000’ from the APR- 1 Base Station
        APR-1:
        Line level audio output (RCA) to DVR
        Base station with 3” speaker for monitoring live audio and playback from a DVR
        Durable, high impact ABS housing
        3.5 mm headphone jack for private listening
        Verifact® D:
        Omni-directional, within 30′ diameter circle
        Stainless steel, single gang faceplate
        Can be placed up to 1000′ away from the base station

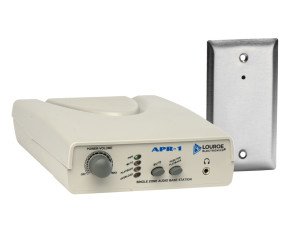

        The ASK-4® #102 is a single zone audio monitoring kit is compatible with most recorders. The kit is designed for audio monitoring and for interfacing with a DVR. It is ideal for Live Monitoring Systems. The APR-1 desktop base unit has a speaker for monitoring live audio and playback. It contains a mute switch to mute both live and playback audio. The Verifact® D microphone is is designed for wall mount.

        The ASK-4 102 is a single zone audio monitoring system designed to interface with a DVR, VCR or other recording devices that accept line level input. The APR-1 Audio Base Station contains a built-in 3” speaker and volume control for producing live audio and audio playback. The Verifact D is an omnidirectional pre-amplified microphone that produces line level output.

        Dimensions:
        Microphone- 2.75″ W x 4.5″ H
        Base Station- 8.25” L x 5.75” W x 1.375” H

        CONTENTS
        • APR-1 Audio Base Station.
        • Verifact D Microphone
        • AD-1 Listed AC ADAPTER.
        • Dual RCA Cable
        • RM-1935-APR Rack mount assembly (19”W x 3 ½ ‘H)

        APPLICATION
        The ASK-4 #102 is designed for numerous applications such as:
        • Convenience Stores
        • Fast Food Restaurants
        • Booking Rooms
        • Interrogation Rooms
        • Car dealership sales contract rooms
        • Child Abuse Interviews
        • Sleep Disorder Centers
        • Speech Therapy Labs
        • Cashier Booths
        • Casino use in:
        - soft count rooms
        - detention centers
        - medical treatment rooms
        - cash cages

        SPECIFICATIONS (Microphone - Model D)
        TypeElectret Condenser
        OutputLine Level (0 dBV, 600W @ 1 kHz)
        Frequency response40 Hz to 15 kHz ± 1 dB
        Current drain10 mA
        Supply voltage12Vdc
        Dimensions (face plate)2¾”W x 4½”H

        SPECIFICATIONS (Base Station - APR-1)
        Input sensitivity (mic)0.78V
        Monitor output power1W@8W
        Audio line output impedance600W or higher
        Audio input impedance10KW
        Freq. response100 Hz to 10 kHz
        Headphone impedance8 to 600W
        Power supply12 Vdc, 500 mA
        Dimensions8 ¼"L x 5 ¾”W x 1 3/8" H
        Weight1 lb 6 oz
        Shipping Weight of kit3 lbs

        ask4_102_inst_1_15.pdf

        ask-4_102_spec_1_15.pdf
