Louroe ASK-4 #101-B Audio Monitoring Kit
SKU: LE-361
APR-1:
Line level audio output (RCA) to DVR
Base station with 3” speaker for monitoring live audio and playback from a DVR
Durable, high impact ABS housing
3.5 mm headphone jack for private listening
Verifact® B:
Omni-directional, within 30′ diameter circle
3′ drop down microphone cable
High impact anti static ABS microphone housing
Can be placed up to 1000′ away from the base station
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- Audio output (RCA) to DVR, VCR
- Omni-directional microphone can pick up normal sounds 15' away if wall mounted, or within a 30' diameter circle if ceiling mounted
- 3" speaker for monitoring live audio and playback from a DVR or VCR
- 3.5 mm headphone jack for private listening
- Microphone may be mounted up to 1000’ from the APR-1Base Station
Line level audio output (RCA) to DVR
Base station with 3” speaker for monitoring live audio and playback from a DVR
Durable, high impact ABS housing
3.5 mm headphone jack for private listening
Verifact® B:
Omni-directional, within 30′ diameter circle
3′ drop down microphone cable
High impact anti static ABS microphone housing
Can be placed up to 1000′ away from the base station

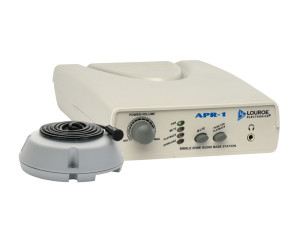

The ASK-4® #101B is a single zone audio monitoring kit compatible with most recorders. The kit is designed for audio monitoring and for interfacing with a DVR. It is ideal for Live Monitoring Systems. The APR-1 desktop base unit has a speaker for monitoring live audio and playback. It contains a mute switch to mute both live and playback audio. The Verifact® B microphone is designed for high ceiling mount applications. The ASK-4 #101B is a single zone audio monitoring system. It is designed for audio monitoring and interfacing with DVR’s, VCR’s or other audio devices that accept line level input. The microphone can be ceiling or wall mounted and provides a 30 foot diameter circle coverage. The mic element is exteded 3’ for high ceiling application. The desk top audio base station (APR-1) contains a 3" speaker for monitoring live audio and playback from a DVR or VCR. Microphone is preamplified and produces line level output. Dimensions:
Microphone- 4″ Diag. x 1.5″ H
Base Station- 8.25” L x 5.75” W x 1.625” H KIT CONTENTS
- VERIFACT Model B Electret Condenser Microphone for surface mounting to ceiling
- Model APR-1 Audio Base Station
- Model AD-1 12Vdc power supply
- Dual RCA cables for connection to DVR/VCR
The ASK-4 #101-B is designed for numerous applications such as:
- Convenience Stores
- Fast Food Restaurants
- Booking Rooms
- Interrogation Rooms
- Car dealership sales contract rooms
- Child Abuse Interviews
- Sleep Disorder Centers
- Speech Therapy Labs
- Cashier Booths
- Casino use in:
- detention centers
- medical treatment rooms
- cash cages
SPECIFICATIONS (Microphone - Model B)
| Type | Electret Condenser |
| Output | Line Level (0 dBV, 600Ω @ 1 kHz) |
| Frequency response | 50 Hz to 15 kHz |
| Current drain | 10 mA |
| Supply voltage | 12Vdc |
| Dimensions | 4"Dia x 1 ½"H |
| Weight | 3.5 oz |
| Monitor output power | 1W@8W |
| Audio output impedance | 600W @ 1kHz |
| Audio input impedance | 10KW |
| Freq. response | 100 Hz to 10 kHz |
| Headphone impedance | 8 to 600W |
| Power supply | 12 Vdc, 500 mA |
| Dimensions | 8 ¼"L x 5 ¾”W x 1 3/8" H |
| Weight | 1 lb 6 oz |
| Shipping Weight of kit | 3 lbs |
