> Stainless steel panel, IP54,IK07
> Night vision &Voice indication
> Video & Audio messaging

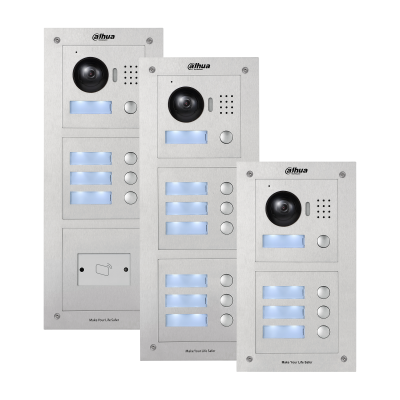

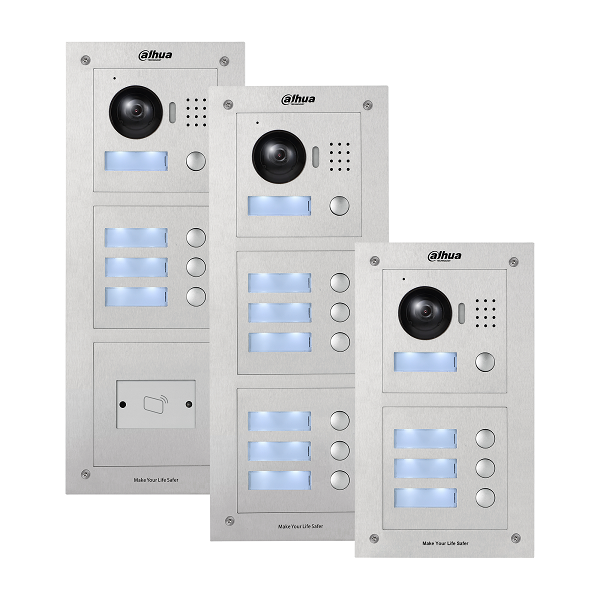

> Modular design( Max 9 modules, VTO2000A-C needed)
> Surface mounted & Flush mounted
Technical Specification | |
Mode | VTO2000A-C |
System | |
Main Processor | Embedded Micro Processor |
Operation System | Embedded LINUX OS |
Video | |
Video Compression | H.264 |
Image Sensor | 1/3” 1.3MP CMOS |
Lens | 2.8mm |
Angle of View | D:120° H:90° |
Day/Night | Color Image |
Audio | |
Audio Compression | G.711 |
Audio Input | Omnidirectional Mic |
Audio Output | Built-in Speaker |
Bidirectional Talk | Support Dual-way Bidirectional talk |
Operation Mode | |
Keypad | Mechanical Button |
Interface | |
Door Control | 2(1 relay out for main lock, 1 extended by access control module) |
Alarm In | 2(1ch unlock button, 1ch feedback) |
RS485 | 1 |
Network | |
Ethernet | 10M/100Mbps Self-adaptive |
Network Protocol | TCP/IP |
General | |
Ingress Protection | IP54, IK07 |
Tamper Switch | 1 |
Installation | Surface & Flush |
Material | Stainless Steel |
Power | DC 12V |
Power Consumption | Standby ≤1W, Work ≤10W |
Working Temperature | ﹣40°C~+60°C |
Relative Humidity | 10%~90%RH |
Dimensions | 110.7mm×118.1mm×42.3mm |
Weight | 0.36Kg |
Model | VTO2000A-B | VTO2000A-R |
Proximity Sensor | - | Support |
General | ||
Material | Stainless Steel | |
Power | Supply by VTO2000A-C | |
Power Consumption | Standby ≤0.1W, Work ≤0.45W | Standby ≤0.3W, Work ≤0.3W |
Working Temperature | ﹣40°C~+60°C | |
Relative Humidity | 10%~90%RH | |
Dimensions | 110mm×120mm×24.9mm | |
Weight | 0.27Kg |
Model | VTO2000A-K |
Proximity Sensor | - |
General | |
Material | Stainless Steel |
Power | Supply by VTO2000A-C |
Power Consumption | Standby ≤0.1W, Work ≤0.45W |
Working Temperature | ﹣40°C~+60°C |
Relative Humidity | 10%~90%RH |
Dimensions | 110mm×120mm×29.0mm |
Weight | 0.32Kg |
Model | VTO2000A-F |
Proximity Sensor | - |
General | |
Material | Stainless Steel |
Power | Supply by VTO2000A-C |
Power Consumption | Standby ≤0.1W, Work ≤0.45W |
Working Temperature | ﹣40°C~+60°C |
Relative Humidity | 10%~90%RH |
Dimensions | 110mm×120mm×24.9mm |
Weight | 0.27Kg |
VTO2000A-X_Series_Datasheet.pdf
