Uniview - 4CH Wifi NVR & (4) 2MP Wifi IP67 Outdoor 98ft SmartIR Mini Bullet Cameras

Uniview
SKU: KIT/301-04LB-W/4*122ER3-F40W-DD

The latest in wifi solutions from Uniview. The 4ch wifi NVR and mini bullet camera kit can reach up to 500+Ft (160m) in an open environment and supports full HD resolution at 20FPS for all four channels. This NVR supports 8TB surveillance hard drives for increased storage and efficiency. All cameras are equipped with the latest Ultra 265 Video codec for reduced storage needs without losing any video quality. Please note that the cameras will still need a 12v power supply and cannot operate without power.

    • 45% less
    Market price:$1499.00 save $670.00
  • $829.00
Qty:
OR




How to Program Your Uniview WiFi W-Fi camera system









The latest in wifi solutions from Uniview. The 4ch wifi NVR and mini bullet camera kit can reach up to 500+Ft (160m) in an open environment and supports full HD resolution at 20FPS for all four channels. This NVR supports 8TB surveillance hard drives for increased storage and efficiency. All cameras are equipped with the latest Ultra 265 Video codec for reduced storage needs without losing any video quality. Please note that the cameras will still need a 12v power supply and cannot operate without power.

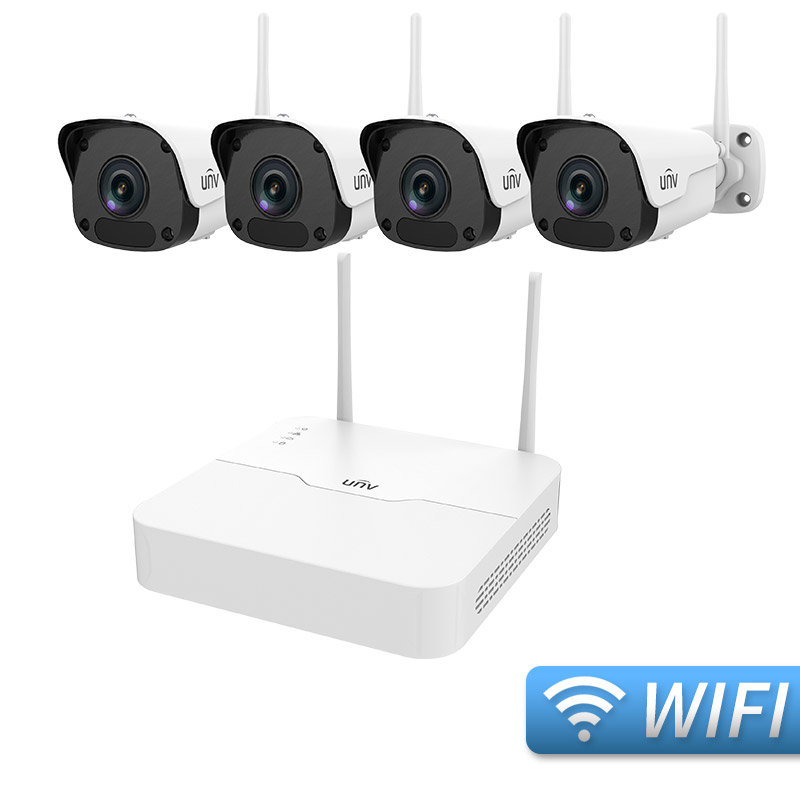

This kit includes four Wifi Bullet Security Cameras with SmartIR night vision. It records high definition footage in Full HD resolution and is both outdoor rated and vandal proof.  All footage is recorded onto the included NVR and can be monitored remotely via mobile device or computer.





What’s Included:

· (1) 4 Channel Wifi NVR Recorder
· (4) Uniview 2 Megapixel Wifi Mini-Bullet IP Camera
· Free mobile apps and monitoring software
· Free lifetime technical support
· Free 3 Year Warranty

·HDMI & VGA Ports: Take full advantage of high definition video by using either HDMI or VGA cables.

·Remote Monitoring through our Free Apps: Download our free apps and view live footage and recordings right on your compatible smartphone or tablet.

·PC and Mac Compatible: Take advantage of the flexibility that our systems offer and review your recordings from any Mac or PC.

·Easy Backup Options: Save footage directly to a USB flash drive or to your PC in seconds flat. Options are also available to backup footage simultaneously to external SATA drives or FTP servers on your network, in the case that your main HDD should fail.



Highlighted Features






U.265 Compression


By combining U-Code and H.265, Ultra 265 can squeeze up to 95% bandwidth and storage space.

Unlike conventional video compression technologies which tries to reduce storage costs by sacrificing resolution and frame rate indiscriminately, U-Code chooses to use "IRP" (Intelligent Region Perception) to detect motion in each frame. Hence, scenes containing interesting information could be preserved while the other relatively static area such as lawns, white walls could be squeezed to save storage.




Cloud Upgrade


If your NVR is connected to a network with Internet access, you may utilize the Internet cloud update feature to check online to see if a new version is available and to perform the update.

Bring up the main menu by right-clicking with the mouse or left-clicking on the Home icon on the menu bar (if available). Using the mouse, left-click on Maintain and then Upgrade and then select the tab entitled Upgrade by Cloud. You will be shown the current version of firmware installed on the NVR and can click on the Check button at the bottom to see if a more recent version is available. If a new version is available, you need only to click on the Upgrade button at the bottom and the download and upgrade process will begin. After updating, the NVR will automatically reboot.




Smart Playback

In normal search, you had to take hours to search the whole playback bar to find the desired video clip.
In smart search, specify an interesting area and do smart search, it only takes seconds to find the desired video clip






Mobile App Push Notifications


Push Alerts & Automatic E-mails: Setup your Universal DVR/NVR to automatically send you an e-mail alert or a Push Notification, with video clip, every time there is a motion triggered or alarm event. This enables you to quickly take action when an incident has occurred




E-Map Function


The E-map feature provides a camera icon that represents the location of cameras on a map of a building or area, helping you to strategically place your cameras in the spots where surveillance is most needed. The detail this function provides is essential in saving time and the hassle of re positioning your cameras to achieve the desired viewing space.

**There are NO contracts or monthly fees with any WorldEyeCam purchase**


Model
NVR301-04LB-W
Video/Audio Input
IP Video Input4-ch
Network
Incoming Bandwidth40Mbps
Outgoing Bandwidth40Mbps
Remote Users128
ProtocolsP2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA OutputHDMI:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz

VGA:

1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
Recording Resolution1080p/960p/720p/D1/2CIF/CIF
Audio Output1-ch, RCA
Synchronous Playback4-ch
Corridor Mode Screen3/4
Decoding
Decoding formatUltra 265/H.265/H.264
Live view/ Playback1080p/960p/720p/D1/2CIF/CIF
Capability4 x 1080P@20, 4 x 720P@30
Hard Disk
SATA1 SATA interface
CapacityUp to 8TB for each HDD
External Interface
Network Interface1 RJ45 10M/100M self-adaptive Ethernet Interface
USB InterfaceRear panel:2 x USB2.0
Wi-Fi
Frequency2.4GHz
Transmission Rate150Mbps
Wireless StandardsIEEE 802.11b/g/n
Wireless Range160m(open environment)
General
Power Supply12V DC

Power Consumption: ≤ 9 W( without HDD )
Working Environment-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W×D×H)205mm ×228mm ×47mm (8.1" × 9.0"×1.9")
Weight ( without HDD )
≤ 0.98Kg(2.16lb)
ModelIPC322SR3-VSF28W-D
Camera
Sensor1/2.7", progressive scan , 2.0 megapixel, CMOS
Lens4.0 mm@F2.8
DORI DistanceLens:
4.8mm: Detect (90m), Observe (36m), Recognize (18m), Identify (9M)
Angle of View (H)86.5°
Angle of View (V)44.1°
Angle of View (O)106.4°
Adjustment anglePan: 0°~360°; Tilt: 0°~90°; Rotate: 0°~360°
ShutterAuto/Manual, 1/6~1/100000 s
Min. IlluminationColour: 0.01 Lux (F1.8, AGC ON)

0 Lux with IR
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N
>52dB
IR RangeUp to 30m (98 ft) IR range
DefogDigital Defog
WDRDWDR
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream:2MP (1920×1080): Max. 20 fps;

Sub Stream: 2MP (1920×1080): Max. 20 fps;

Third Stream:D1 (720×576): Max. 20 fps
9:16 Corridor ModeSupported
HLCSupported
BLCSupported
OSDUp to 4 OSDs
Privacy MaskUp to 4 areas
ROIUp to 8 areas
Motion DetectionUp to 4 areas
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication,
Storage
Edge StorageMicro SD, up to 128 GB
Network StorageANR
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP,
Compatible IntegrationONVIF(Profile S, Profile G), API
Wi-Fi
Wireless StandardsIEEE802.11b/g/n
Frequency Range2.4 GHz ~ 2.4835 GHz
Channel Bandwidth20/40MHz Support
Modulation Mode802.11b: CCK, QPSK, BPSK

802.11g/n: OFDM
Security64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmit Power802.11b: 17±1.5dBm @11Mbps

802.11g: 14±1.5dBm @ 54Mbps

802.11n: 12.5±1.5dBm
Receive Sensitivity802.11b: -90dBm @ 11Mbps (Typical)

802.11g: -75dBm @ 54Mpbs (Typical)

802.11n: -74dBm (Typical)
Transmission Rate802.11b: 11Mbps

802.11g: 54Mbps

802.11n: up to 150Mbps
Interface
Network1 RJ45 10M/100M Base-TX Ethernet
General
Power12 V DC(+/-25%)
Power consumption: Max 5.5W
Dimensions (Ø x H)157.3 x 63 x 62.4 mm (Ø4.28” x 3.2”)
Weight0.45 kg (0.99 lb)
Working Environment-30°C ~ +60°C (-22°F ~ 140°F), Humidity:10%~90% RH(non-condensing)
Ingress ProtectionIP67
Vandal ResistantIK10
    • SKU
      KIT/301-04LB-W/4*122ER3-F40W-DD
    • Weight
      10 lbs
  • Manufacturer
    Uniview
  • Camera Type
    Bullet
