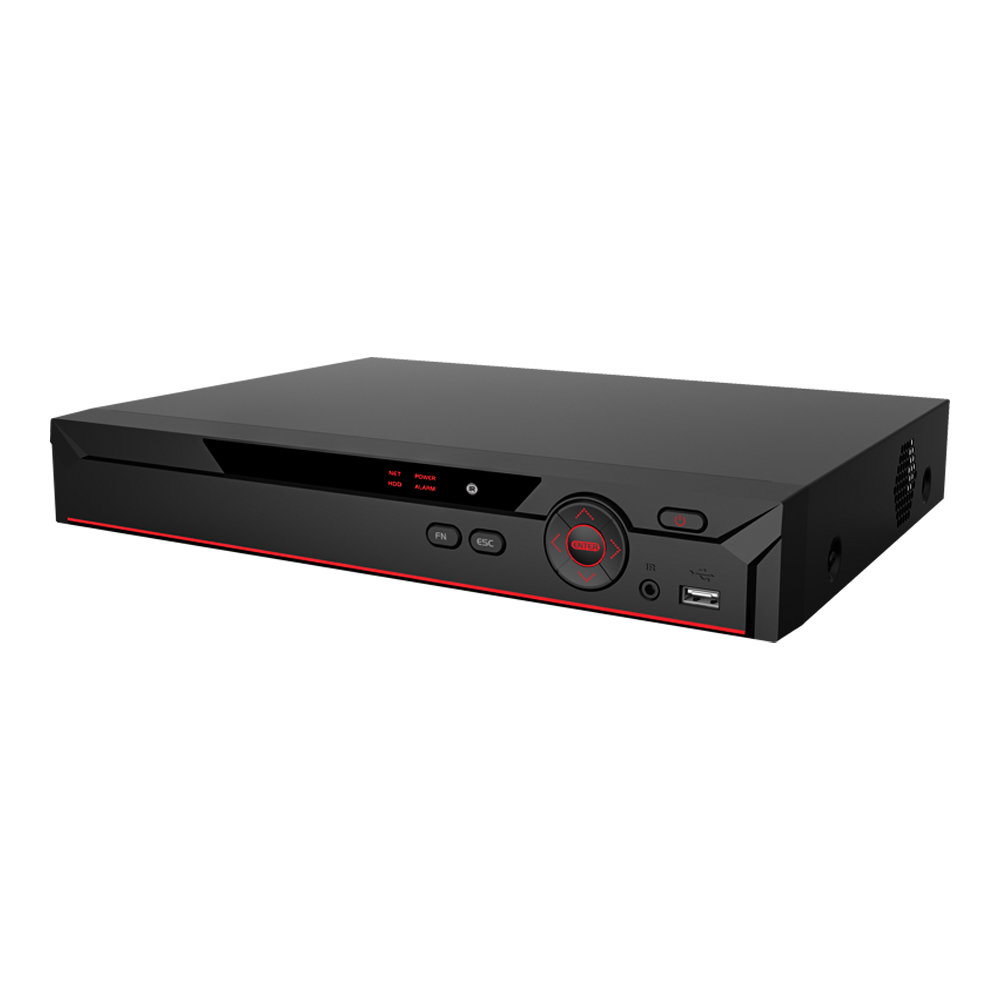

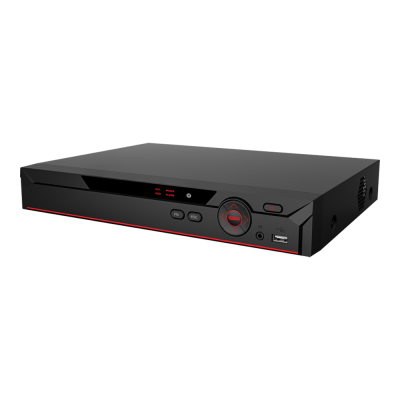

IMAXCAMPRO XVR501H-08-I2 | 8 CH Penta-brid 5M-N/1080P Mini 1U DVR

iMaxCamPro
SKU: WECIXVR501H-08-I2

8CH Digital Video Recorder (DVR), Max. 12CH(Upto 8CH BNC/12CH IP),5M-N@10FPS/2MP@15FPS,2ch Face Detection (FD) ,2ch Perimeter Protection (PP), 8ch SMD+,AI coding,HDMI/VGA;Audio,1 SATA. UL Listed professional surveillance products.

Features

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 12 channels IP camera inputs, each channel up to 6MP; Max
  • 64 Mbps incoming bandwidth
  • Perimeter Protection and SMD Plus
  • Up to 2 channels video stream (analog channel ) human face recognition
  • IoT & POS functionalities
More Information
System CompressionH.264+/H.264
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux

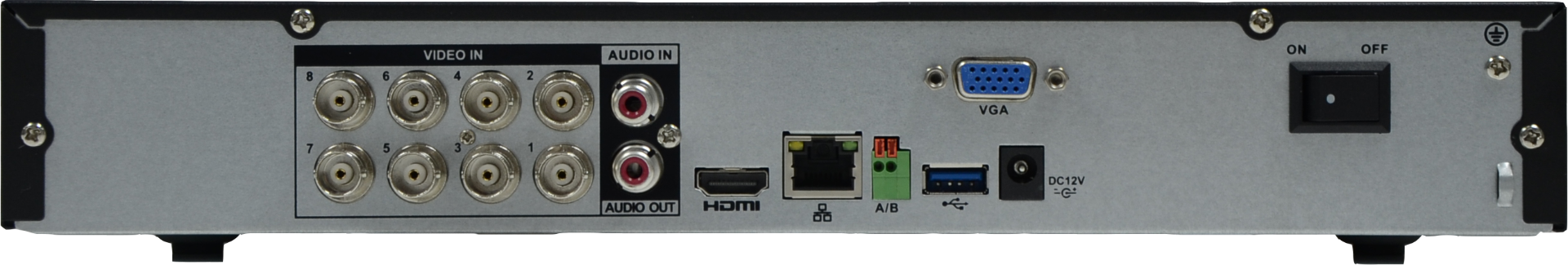

Video Interface1 HDMI, 1 VGA
Video Resolution2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768
Multi-Screen Display1/4 (IP extension mode: disabled), 1/4/6 (IP extension mode: enabled)
HDCVI Camera Input4MP/1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IP Camera Input4+2 Channel, each channel up to 5MP
OSDYes
Recording Resolution4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
Recording Frame Rate

Mainstream: 4MP/3MP (1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps)
Substream: 960H (1~12fps); D1/CIF/!CIF (1~25/30fps)

Bit Rate1Kbps ~ 6144Kbps Per Channel
Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 1~300 sec
Playback Channels1/4
Playback SearchTime/Calendar Search, Event (motion)
Playback FunctionPlay, Pause, FF, FB; Digital zoom
Backup ModeUSB Device/Network
Audio In1CH
Audio Out1CH
2 Way AudioReuse audio in/out, RCA
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm InN/A
Alarm Relay OutputN/A
Network Interface1 RJ-45 Port (100M)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Network Max. Users128
InteroperabilityONVIF 2.42, CGI Conformant
MobileiPhone, Android
RS4851 Port, for PTZ Control
USB2 USB Ports (2 USB 2.0)
RS232N/A
RS422N/A
Power SupplyDC12V/2A
Power Consumption<10W (Without HDD)
Internal HDD1 SATA Port, up to 8TB capacity
e-SATAN/A
Operating Conditions-10°C ~ +55°C (+14°F ~ 131°F), 0~90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH
DimensionsMini 1U, 325mm x 255mm x 55mm (12.8" x 10" x 2.2")
Weight1.5kg (3.3lb) (Without HDD)
    • 16% less
    Market price:$285.00 save $47.00
  • $238.00
Qty:
OR

8CH Digital Video Recorder (DVR), Max. 12CH(Upto 8CH BNC/12CH IP),5M-N@10FPS/2MP@15FPS,2ch Face Detection (FD) ,2ch Perimeter Protection (PP), 8ch SMD+,AI coding,HDMI/VGA;Audio,1 SATA. UL Listed professional surveillance products.

Features

  • H.265+/H.265 dual-stream video compression
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 12 channels IP camera inputs, each channel up to 6MP; Max
  • 64 Mbps incoming bandwidth
  • Perimeter Protection and SMD Plus
  • Up to 2 channels video stream (analog channel ) human face recognition
  • IoT & POS functionalities
More Information
System CompressionH.264+/H.264
Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
Video Interface1 HDMI, 1 VGA
Video Resolution2560x1440, 1920x1080, 1280x1024, 1280x720, 1024x768
Multi-Screen Display1/4 (IP extension mode: disabled), 1/4/6 (IP extension mode: enabled)
HDCVI Camera Input4MP/1080P@25/30fps, 720P@50/60fps, 720P@25/30fps
IP Camera Input4+2 Channel, each channel up to 5MP
OSDYes
Recording Resolution4MP, 3MP, 1080P, 720P, 960H, D1, CIF, QCIF
Recording Frame Rate

Mainstream: 4MP/3MP (1~15fps); 1080P/720P/960H/D1/CIF/QCIF (1~25/30fps)
Substream: 960H (1~12fps); D1/CIF/!CIF (1~25/30fps)

Bit Rate1Kbps ~ 6144Kbps Per Channel
Recording ModeManual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), alarm, stop
Record Interval1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 1~300 sec
Playback Channels1/4
Playback SearchTime/Calendar Search, Event (motion)
Playback FunctionPlay, Pause, FF, FB; Digital zoom
Backup ModeUSB Device/Network
Audio In1CH
Audio Out1CH
2 Way AudioReuse audio in/out, RCA
Trigger EventsRecording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis
Alarm InN/A
Alarm Relay OutputN/A
Network Interface1 RJ-45 Port (100M)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Support Dahua IP camera, DVR, NVS, etc.)
Network Max. Users128
InteroperabilityONVIF 2.42, CGI Conformant
MobileiPhone, Android
RS4851 Port, for PTZ Control
USB2 USB Ports (2 USB 2.0)
RS232N/A
RS422N/A
Power SupplyDC12V/2A
Power Consumption<10W (Without HDD)
Internal HDD1 SATA Port, up to 8TB capacity
e-SATAN/A
Operating Conditions-10°C ~ +55°C (+14°F ~ 131°F), 0~90% RH
Storage Conditions-20°C ~ +70°C (-4°F ~ 158°F), 0~90% RH
DimensionsMini 1U, 325mm x 255mm x 55mm (12.8" x 10" x 2.2")
Weight1.5kg (3.3lb) (Without HDD)
    • SKU
      WECIXVR501H-08-I2
    • Weight
      4.4 lbs
  • Manufacturer
    iMaxCamPro
  • Hard Drive #2
    I will install my own hard drive, 500GB HDD, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD
  • Hard Drive #1
    I will install my own hard drive, 1TB HDD, 2TB HDD, 3TB HDD, 4TB HDD, 6TB HDD
  • Remote Login Support
    No Login Support Needed, FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
