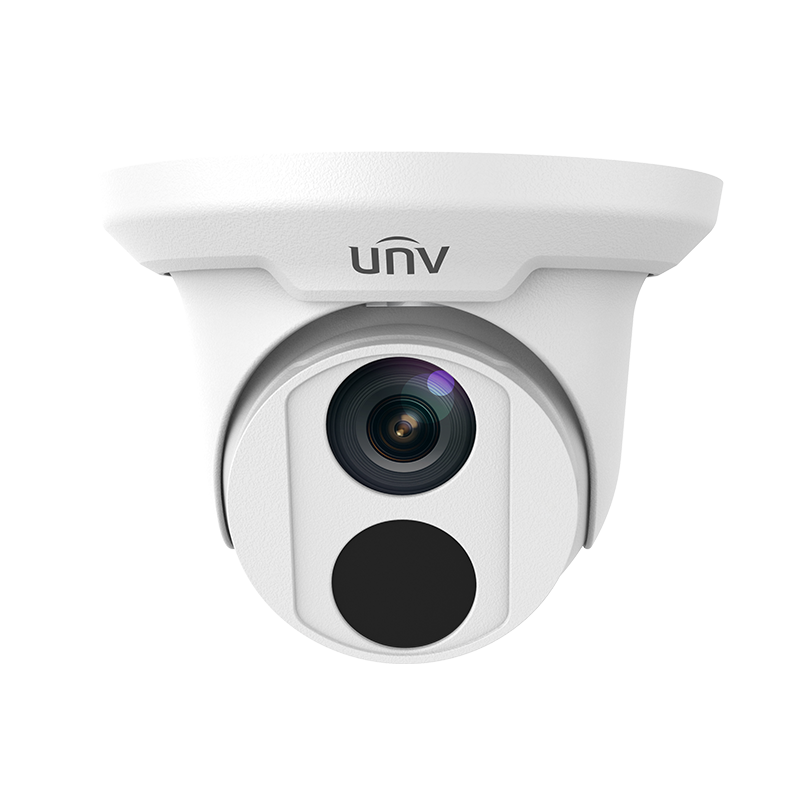

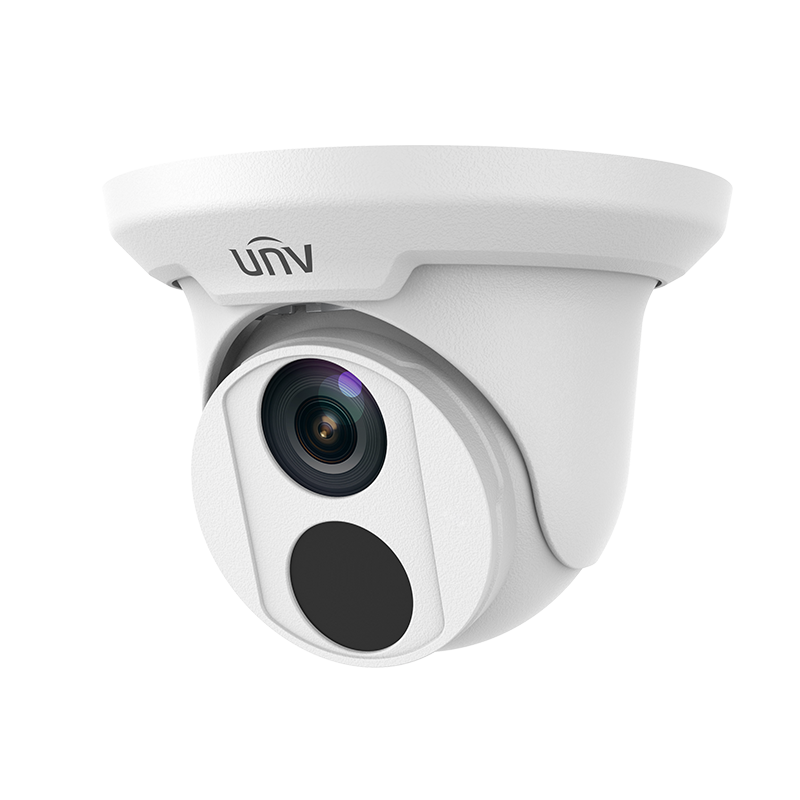

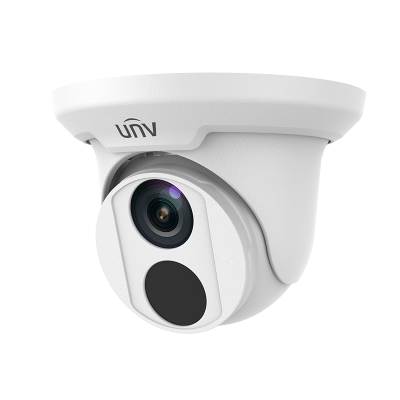

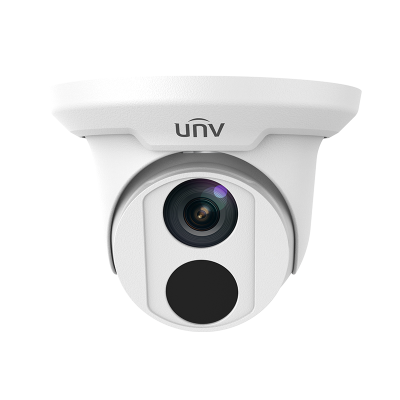

IPC3614SR3-DPF - UNV Uniview - 4 MP IP Dome Camera True 120dB Wide Dynamic Range Fixed Lens
Loading...
Loading...

        IPC3614SR3-DPF - UNV Uniview - 4 MP IP Dome Camera True 120dB Wide Dynamic Range Fixed Lens

        SKU: IPC3614SR3-DPF
        Uniview
        SKU: IPC3614SR3-DPF

        This is a 4 megapixel resolution IP dome camera. It has an optional lens size of 3.6mm or 6mm. Infrared night vision allows the security camera to see up to 98 feet in total darkness. The surveillance camera also comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant.

        This Uniview 4MP WDR Network IR Mini Bullet Camera is a smart functioning security camera. It has a 4 megapixel resolution and is fixed with optional lens size of 2.8mm, 3.6mm or 6mm. With infrared night vision, the camera allows you to maintain perfect vision in total darkness in an area as wide and big as 98 feet. This mini bullet security camera comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It’s durable with IP66 rating. It also has a "Smart IR" feature which will adjust based on the location to give you an optimal image.

        The H.264 compression greatly reduces the size of your digital video files without compromising the image quality and saving your hard drive storage space. The camera comes also with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet like 1to 2Mbs. The camera is wide dynamic range and very efficient for monitoring.

          • 56% less
          Market price:$349.00 save $196.00
        • $153.00

        OR


        This Uniview 4MP WDR Network IR Mini Bullet Camera is a smart functioning security camera. It has a 4 megapixel resolution and is fixed with optional lens size of 2.8mm, 3.6mm or 6mm. With infrared night vision, the camera allows you to maintain perfect vision in total darkness in an area as wide and big as 98 feet. This mini bullet security camera comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It’s durable with IP66 rating. It also has a "Smart IR" feature which will adjust based on the location to give you an optimal image.

        The H.264 compression greatly reduces the size of your digital video files without compromising the image quality and saving your hard drive storage space. The camera comes also with a H.265 which enables you to watch 2K and 4K videos even if you have slow internet like 1to 2Mbs. The camera is wide dynamic range and very efficient for monitoring.



        The UNV (Uniview) 4MP Network IR Fixed Dome. This is a 4 megapixel resolution IP dome camera. It has an optional lens size of 2.8mm, 3.6mm, or 6mm. Infrared night vision allows the security camera to see up to 98 feet in total darkness. The surveillance camera also comes equipped with True 120dB Wide Dynamic Range and is ONVIF compliant. It is small and discreet but durable, with an IP66 rating.

        Product Features

        Optics

        • Day/night functionality
        • Smart IR , up to 30 m (98 ft) IR distance
        • Up to 120 dB WDR (Wide Dynamic Range)

        Compression

        • H.265, H.264, MJPEG
        • Embedded smart algorithm
        • Triple streams
        • 9:16 corridor format

        Network

        • ONVIF Conformance

        Structure

        • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
        • Wide voltage range of ±25%
        • 4 KV surge protection designed for network interface
        • IP66






        Digital Defog


        Uniview puts forward digital defog technology, which applies IR for imaging. All lost details in fog weather can be recognized perfectly.





        Long-Range POE - 928 ft.


        Even though the camera’s location is hundreds of feet away from NVR, you can still easily connect cameras directly to NVR for both power supply and video streaming because UNV NVR supports up to 928 Ft long rang PoE. It helps to make your store under protection 24/7 with only a few steps during installation.









        Cloud Upgrade



        If your camera is connected to a network with Internet access, you may utilize the Internet cloud update feature to check online to see if a new version is available and to perform the update.

        Bring up the main menu on your Uniview NVR by right-clicking with the mouse or left-clicking on the Home icon on the menu bar (if available). Using the mouse, left-click on Maintain and then Upgrade and then select the tab entitled Upgrade by Cloud. You will be shown the current version of firmware installed on the camera and can click on the Check button at the bottom to see if a more recent version is available. If a new version is available, you need only to click on the Upgrade button at the bottom and the download and upgrade process will begin. After updating, the camera will automatically reboot.







        Wide Temperature Range


        Uniview' s cameras can function well under -40 ℃ ~ 70 ℃ , adapting to all harsh environment condition.











        Trip Wire

        Create a Virtual Tripwire similar to those you see in Hollywood films. However, these criminals cannot dodge the power of Uniview!

        You can also set the direction of which the Trip Wire will be activated
        For example, if people are only supposed to be leaving one direction and someone decides to go back you will be notified since they are going the wrong direction.



        UNV Customer System Kit Builder

        Designing a unique surveillance system for your home or business is as easy as clicking your mouse with our new Custom Kit Builder. With intuitive prompts that guide you along the way, you are in control of your camera styles, NVR or DVR size, power accessories and hard drive space. Still have questions, give us a call, our expert technicians are here to help. Your brand new system is only a few clicks away.

        UNV IP System Builder
        Click Here




        SPECIFICATIONS
        ModelIPC3614SR3-DPF
        Camera:
        Sensor1/3” progressive scan, 4 megapixel, CMOS
        Lens2.8mm@F1.8(Angle of view(H): 112.5°)
        3.6mm@F1.8(Angle of view(H): 77.6°)
        6mm@F1.8(Angle of view(H): 49.4°)
        AWB(Auto white balance)Auto/manual
        ShutterAuto/Manual, shutter time: 1/6 s ~1/8000 s
        Minimum IlluminationColour: 0.02 Lux (F1.8, AGC ON)
        0 Lux with IR on
        Noise Reduction2D/3D
        Day / NightIR-cut filter with auto switch (ICR)
        Gain ControlAuto/manual
        IRUp to 30m (98 ft) IR range
        Video
        Max. Resolution1920 x 1080
        CompressionH.265/H.264/MJPEG
        Frame Rate4MP (2592×1520): Max. 20 fps; 4MP (2560×1440): Max. 25 fps
        Video StreamingTriple
        9:16 Corridor ModeSupported
        OSDUp to 8 OSDs
        Privacy MaskUp to 4 areas
        Motion DetectionUp to 2 areas
        Smart
        Behavior DetectionIntrusion, crossing line, motion detection
        Intelligent IdentificationFace detection
        Statistical AnalysisPeople counting
        Network
        ProtocolsL2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SIP, 802.1x
        Compatible IntegrationONVIF, API
        Interface
        Network10M/100M Base-TX Ethernet
        General
        Power12 V DC, or PoE (IEEE802.3 af)
        Dimensions (Ø x H)
        Power consumption: Max 5.5 W
        Φ126 x 94mm (Φ5.0” x 3.7”)
        Weight0.33kg (0.73lb)
        Working Environment-35℃~60℃ (-31℉ ~ 140℉), Humidity ≤ 95% RH (non-condensing)
        Ingress ProtectionIP66

          Camera Installation Guide-V1.00

          Network Cameras User Manual-V2.03
