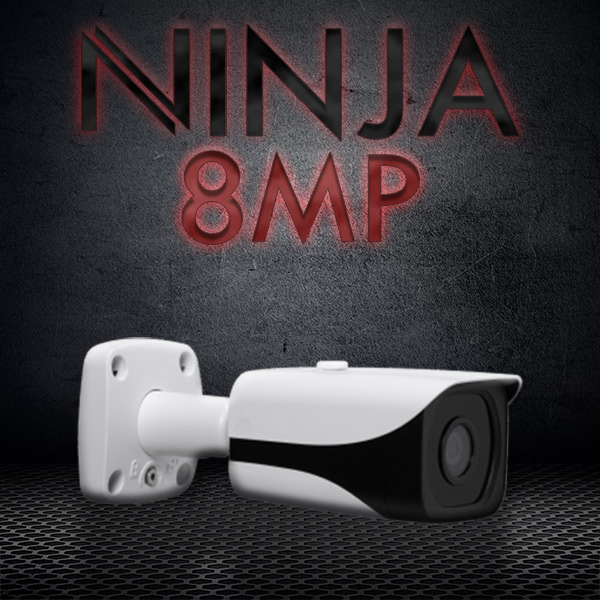

8MP NINJA IR Mini Bullet IP Network Camera


$258.00


Availability: In Stock
List Price: $420.00
SKU: 8MP-NINJA-MINIBULLET
Product #: 112615
Manufacturer:
Camera Type: Bullet
Camera Resolution: 8 Megapixel
Camera Signal: IP
Lens Size: 4mm
Optical Zoom: Fixed Lens

Remote Login Support:
Quantity

> 1/2.5” 8Megapixel progressive scan CMOS
> H.265&H.264 dual-stream encoding
> 15fps@4K(3840×2160),25/30fps@3Mp(2304×1296)
> Smart Detection supported
> DWDR, Day/Night(ICR), 3DNR,AWB,AGC,BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 4mm fixed lens
> Max. IR LEDs Length 40m
> Micro SD memory,IP67, PoE

System Overview
Eco-savvy products by upgrading H.265 encoding technology, bringing high efficient video compression. It saves bandwidth and storage , energy-saving design to enhance the monitoring system . Meanwhile, the series offers features such as starlight , Smart IR technology , intelligent image analysis techniques. It provides excellent image quality and intelligent and efficient event reminders . This series provides IP67 weatherproof and IK10 vandal-proof protection feature. Give customers more value.

Functions

true day and night

4K technology

4K technology as a revolutionary breakthrough in image, which enhance the expressive image of essence, allowing users to experience the best picture quality brought about by the visual feast . For the purposes of 4K surveillance with four times the 1080P resolution, presented to the user with more details . Under the same scenario by raising the pixels , reduce the camera cost.



true day and night

True Day/Night

a day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens.

regions of interest
Regions Of interest Regions of interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene, while still maintaining overall situational awareness of less important areas.

smart IR
Smart IR With IR illumination, detailed images can be captured in low light or total darkness. The camera's Smart IR technology adjusts to the intensity of the camera's infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDs from Whiting out images as they come closer to the camera. The camera's integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98 ft.)

wide dynamic range
Wide Dynamic Range Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly. True WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.

image flip
Image flip Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera's image to be rotated in 90 increments for better video optimization.

protection
Protection Supporting += 10% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. its 6KV lightning rating provides protection against the camera and its structure from the effects of lightning.

interoperability
Interoperability The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.

h.265
HEVC (H.265) H.265 ITU-T VCEG is a new video coding standard. H.265 is the successor to the existing video coding standard H.264. H.265 allows for compression of data without compromising video quality, so you can stream significantly more video at much faster speeds. It also means you can stream much higher video qualities, such as 8mp and 12mp video, without experiencing delays or buffering. This higher compression codec also produces significantly smaller file sizes, so you can save space (and money) on HDDs.



Camera

Image Sensor

1/2.5” 8Megapixel progressive scan CMOS

Effective Pixels

3840(H)x2160(V)

RAM/ROM

512MB/32MB

Scanning System

Progressive

Minimum Illumination

0.05Lux/F1.6 (Color), 0Lux/F1.6(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 40m (131.2ft)

IR On/Off Control

Auto/ Manual

IR LEDs

2

Lens

Lens Type

Fixed

Mount Type

Board-in

Focal Length

4mm

Max. Aperture

F1.6

Angle of View

H:87° , V:48°

Optical Zoom

N/A

Focus Control

Fixed

Close Focus Distance

N/A

Pan/Tilt/Rotation

Pan/Tilt/Rotation Range

Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚

Intelligence

IVS (optional)

Tripwire, Intrusion, Object Abandoned/Missing

Advanced Intelligent Functions

Face Detection

Video

Compression

H.265+/H.265/H.264+/H.264

Streaming Capability

3 Streams

Resolution

4K(3840×2160)/6M(3072×2048)/5M(2560×1920)/

3M(2048x1536)/3M(2304×1296)/

1080P(1920×1080)/1.3M(1280x960)/

720P(1280×720)/D1(704×576/704×480) /VGA(640×480)/CIF(352×288/352×240)

Frame Rate

Main Stream: 4K(1~15fps)/3M(1~25/30fps)

Sub Stream: D1(1~25/30fps)

Third Stream: 720P(1~25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image Stabilization (EIS)

N/A

Smart IR

Support

Defog

N/A

Digital Zoom

16x

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

Off / On (4 Area, Rectangle)

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP;

FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS;

UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP;

IGMP; SNMP

Interoperability

ONVIF, PSIA, CGI

Streaming Method

Unicast / Multicast

Max. User Access

10 Users /20 Users

Edge Storage

NAS

Local PC for instant recording

Mirco SD card 128GB

Web Viewer

IE, Chrome, Firefox, Safari

Management Software

Smart PSS, DSS, Easy4ip

Smart Phone

IOS, Android

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V, PoE (802.3af)(Class 0)

Power Consumption

< 7W

Environmental

Operating Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Strorage Conditions

-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

Ingress Protection

IP67

Vandal Resistance

N/A

Construction

Casing

Metal

Dimensions

180mm×70mm×70mm (7.09×2.76×2.76)

Net Weight

0.41kg (0.91lb)

Gross Weight

0.53 kg (1.17lb)

8MP NINJA MINI BULLET Datasheet.pdf

8MP NINJA MINI BULLET QuickStartGuide.pdf

8MP NINJA MINI BULLET Operation_Manual.pdf

8MP NINJA MINI BULLET Installation.pdf

8MP NINJA MINI BULLET_Dimension.pdf

8MP NINJA MINI BULLET Rhea_Eng_P_Stream3_V2.460.0000.5.R.pdf

*}
