5MP LightHunter Intelligent Bullet Network Camera

SKU: IPC2A25SA-DZK
UNV
SKU: IPC2A25SA-DZK
    • 20% less
    Market price:$660.00 save $132.00
  • $528.00

OR

Optics

1/2.7’’, Powered by lighthunter

Smart IR, up to 50m (164 ft) IR distance

Up to 120 dB Optical WDR (Wide Dynamic Range)

Smart

People Counting, support tripwire people counting and area people counting

Perimeter Protection, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

Exception Detection and Statistics, include Object Removed, Object Left Behind, Defocus, Scene Change

Compression

Ultra 265, H.265, H.264, MJPEG

Five streams

2592*1944@20fps in the main stream

ROI (Region of Interest)

Network

ONVIF Conformance

Structure

DC12V or PoE power supply

Wide voltage range of ±25% in DC

Micro SD, up to 256 GB

Alarm 1 in and 1 out, Audio 1 in and 1 out

IP67 ingress protection

IK10 vandal resistant


 IPC2A25SA-DZK
Camera
Sensor1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens2.7~13.5mm@F1.2, AF automatic focusing and motorized zoom lens
IrisAuto aperture
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)Identify (m)
2.770.9(232.5ft)28.4(93.0ft)14.2(46.5ft)7.1(23.3ft)
13.5247.5(812.0ft)99.0(324.8ft)49.5(162.4ft)24.8(81.2ft)
Field of View (H)26.8°~93.1°
Field of View (V)20.7°~66.0°
Field of View (D)31.6°~121.0°
ShutterAuto/Manual, 1 ~ 1/100000s
Min. IlluminationColour:0.002ux (F1.2, AGC ON)
0 lux with IR
WDR120dB
Day/NightIR-cut filter with auto switch (ICR)
S/N>56dB
IR RangeUp to 50m (164 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
Video
Video CompressionUltra 265,H.265,H.264,MJPEG
Frame RateMain Stream: 5MP(2592*1944),Max 20fps; 4MP(2560*1440),Max 30fps; 3MP(2304*1296),Max 30fps; 2MP(1920*1080),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Forth Stream: D1 (720*576), Max 30fps;
Fifth Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
ROISupported
Video streamFive streams
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas(8 blacks/4 mosaics+4 blacks)
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLCSupport
BLCSupport
Smart
Smart intrusion PreventionSupport false alarm filtering, Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection ;
Motion detection ;
Exception Detection And StatisticsObject Removed, Object Left Behind, Defocus, Scene Change
Statistical AnalysisPeople counting, support tripwire people counting and area people counting
General FunctionWatermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711U,G.711A
Two way audioSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
Ezview
EZLive
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/OAudio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Network1 x RJ45 10M/100M Base-TX Ethernet
Certifications
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General

Power

DC12V±25%, PoE(IEEE802.3af)
Power consumption: Max 10W
Support overcurrent protection and input short circuit protection

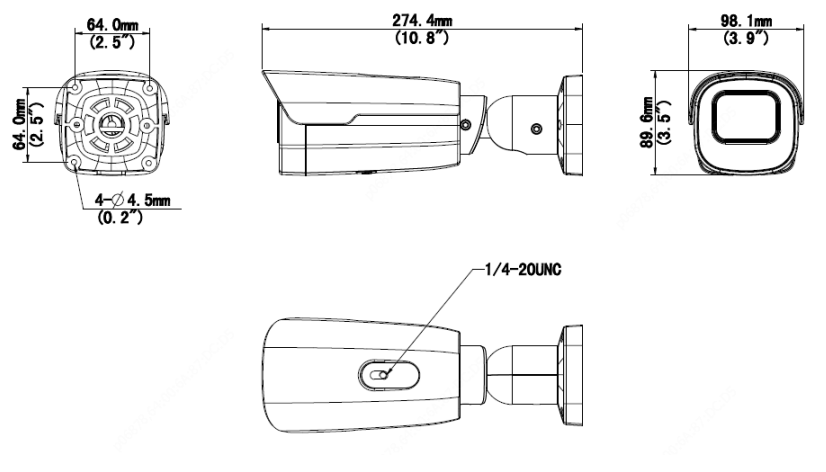

Dimensions (Ø x H)Φ274.4x98.1x89.6mm(Φ10.8’’x3.9’’x3.5’’)
Net Weight1.12kg(2.46lb)
MaterialMetal
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection6KV


Datasheet of IPC2A25SA-DZK

Camera Installation Guide-V1.00

Network Cameras User Manual-V3.00
