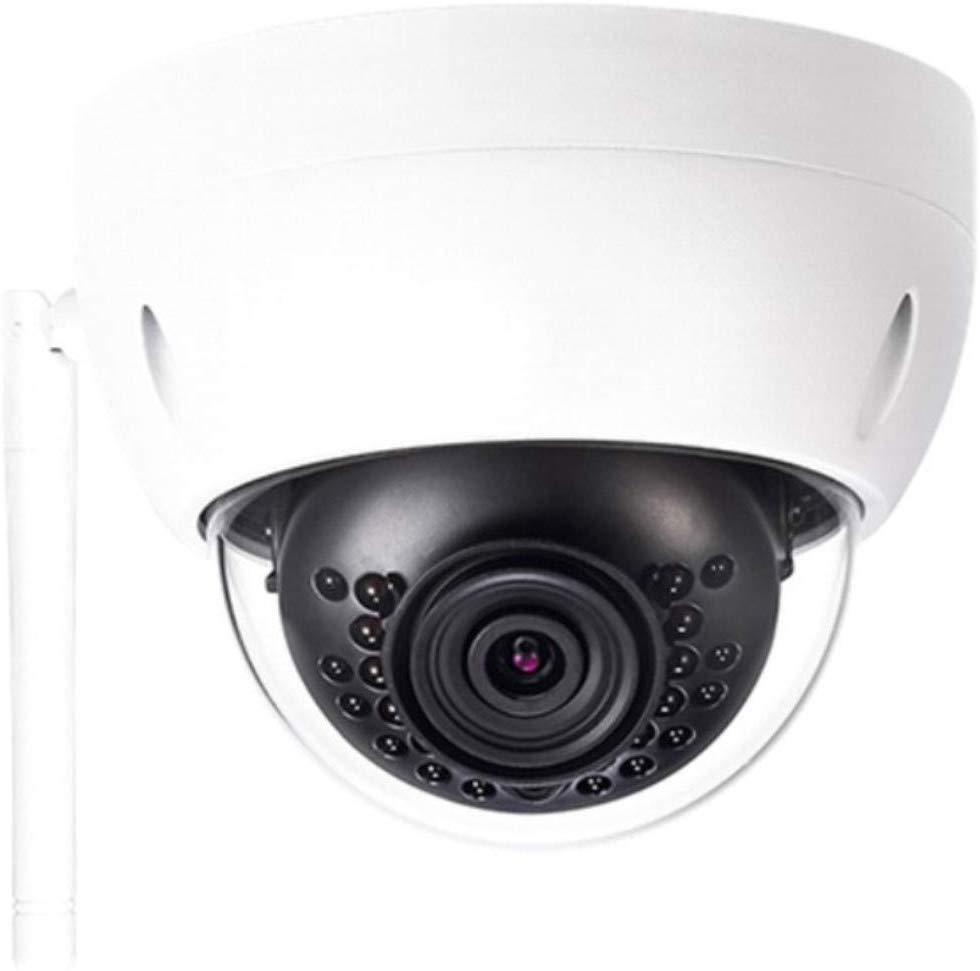

4MP WDR IR Mini-Dome WiFi Network Camera | HNC3V241E-IR/28-W


$180.00


Availability: In Stock
Ships Same Day
List Price: $350.00
SKU: WECICP-IPC4MPDM030
Product #: 116652
Manufacturer:
Camera Type: Dome
Camera Resolution: 4 Megapixel
Camera Signal: IP
Shipping Lead Time: Ships Same Day
Lens Size: 2.8mm
Optical Zoom: Fixed Lens

Quantity

4MP WDR 2.8mm Fixed Lens IR Mini-Dome Network Camera | HNC3V241E-IR/28-W

Fixed VPD, 1/3", 4MP@20FPS, 2.8mm, IR(98ft),True WDR, WIFI, VCA


PRODUCT FEATURES

  • 1/3 "4 megapixel progressive scan CMOS
  • H.265 and H.264 dual stream coding.
  • 25 fps at 13.1 ft (2688 x 1520), 25/30 fps at 9.8 ft (2304 x 1296)
  • WDR (120 dB), day / night (ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS (DSS / PSS) and DMSS



More Information
Image Sensor 1/3” 3Megapixel progresive CMOS
Image Size 2688(H)x1520(V)
RAM/ROM 512MB/32MB
Electronic Shutter Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination
  • 0.08Lux/F2.0( Color,1/3s,30IRE)
  • 0.3Lux/F2.0( Color,1/30s,30IRE)
  • 0Lux/F2.0(IR on)
S/N Ratio More than 45dB
IR LEDs 24
Smart IR Support
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
Focal Length 2.8mm
Angle of View H:104°/87°, V:57°/48°
Max. Aperture F2.0/F2.0
Optical Zoom N/A
Close Focus Distance N/A
DORI Distance
Lens

Detect

Observe

Recognize

Identify

2.8 mm

63(207ft)

25(82ft)

13(43ft)

6(20ft)

Pan / Tilt / Rotation Pan:0° ~355° ;Tilt:0° ~64° ;Rotation:0° ~355°
Video Compression H.265+/H.265/H.264+/H.264
Streaming Capability 2 Streams
Video Resolution

4M(2688x1520/2560x1440)/3M(2304×1296)/ 1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/ CIF(352×288/352×240)

Video Frame Rate
  • 4M(1 ~ 20fps)/3M (1 ~ 25/30fps)
  • D1/CIF(1 ~ 25/30fps)
Video Bitrate
  • H.265: 12K ~ 8448Kbps
  • H.264: 32K ~ 10240Kbps
Day / Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / WDR(120dB)
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Digital Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) Support
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio Compression N/A
IPC Alarm N/A
Alarm In N/A
Alarm Out N/A
General Function Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
AI Perimeter Protection N/A
Advanced AI Functions N/A
Ethernet RJ-45 (10/100Base-T)
Network Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP
Network Interoperability ONVIF, PSIA, CGI
Streaming Method Unicast / Multicast
Network Max. Users 20 Users
Storage NAS Local PC for instant recording
Storage Card N/A
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS,Easy4ip
Mobile iPhone, Android
Video Output N/A
Certifications CE (EN 60950:2000), UL:UL60950-1, FCC: FCC Part 15 Subpart B
Audio Interface N/A
RS485 N/A
Power Supply DC12V PoE(802.3af)(Class 0)
Power Consumption <4.58W
Operating Temperature -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Temperature -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67
Dimensions 109.9mm × 81mm (4.33" x 3.19")
Weight 0.47Kg (1.04lb)
