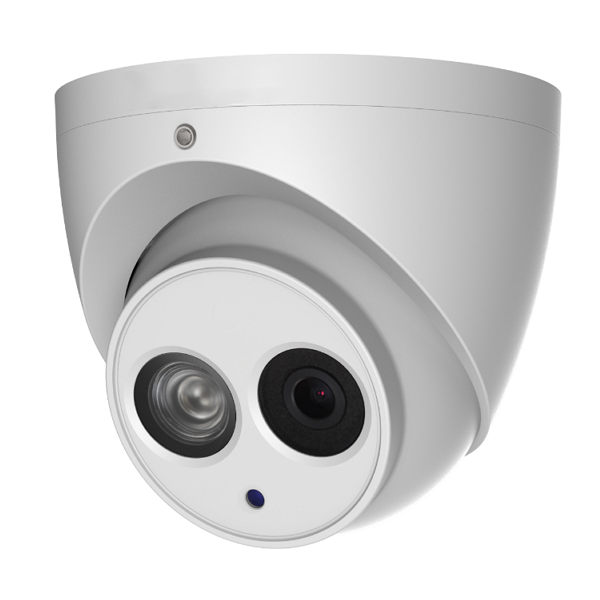

4MP HD WDR 2.8 mm Fixed Lens Matrix Network Small IR Dome Camera (Optional Built-In Mic)


$265.00


Availability: In Stock
List Price: $465.00
SKU: WEC-IP5341EM-IR28
Product #: 86937
Manufacturer:
Camera Type: Dome
Camera Signal: IP
Lens Size: 8mm
Optical Zoom: Fixed Lens

Built-in Mic:
Remote Login Support:
Quantity

4 Megapixel HD WDR 2.8mm Fixed Lens Matrix Network Small IR Dome Camera (Optional Built-In Mic)


This small but effective IP dome surveillance camera is ideal for both day and night recording. It can record up to 168 feet in darkness and is resistant to water and dust. The steel casing can also withstand high impact which means it is resistant to tampering. The security camera has a 2.8mm fixed lens and can record either 20 fps at 4 megapixels or 30 frames per second at 1080p. Footage can be monitored remotely by up to 20 users.

Features

  • 1/3” 4Megapixel progressive scan CMOS
  • Support H.264&MJPEG dual codec
  • Max 20fps@4M(2688×1520) & 25/30fps@3M(2304×1296)
  • Smart Detection supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens
  • Built-in Mic (optional)
  • IR LEDs Length 50m
  • Micro SD memory (only for -AS), IP67, PoE


  • (CLICK HERE) To View a full 3 Megapixel image

    (CLICK HERE) To View a full 3 Megapixel image

    Specifications
    Model WEC-IP5341EM-IR28
    Image Sensor 1/3” 4Megapixel progressive scan CMOS
    Effective Pixels 2688(H)x1520(V)
    Scanning System Progressive
    Electronic Shutter Speed Auto / Manual; 1/3(4) - 10,000s
    Min. Illumination 0. 1Lux/F1.8 (Color), 0.01Lux/F1.8(B/W)
    S/N Ratio > 50dB
    Video Output N/A
    Camera Features
    Max IR LED Distance 168 ft. / 60m
    Day/Night Auto(ICR) / Color / B/W
    Backlight Compensation BLC / HLC / DWDR
    White Balance Auto / Manual
    Gain Control Auto / Manual
    Noise Reduction 3D
    Privacy Masking Up to 4 areas
    Lens
    Focal Length 2.8mm
    Max Aperture F1.8
    Focus Control Manual
    Angle of View Horizontal: 72.5°
    Lens Type Fixed Lens
    Mount Type Board-in Type
    Video
    Compression H.264 / MJPEG
    Image Resolution 3M (2048 × 1536) / 1080P (1920 × 1080) / 720P (1280 × 720) / D1(704 × 576) / CIF(352 × 288)
    Frame Rate Main Stream 3MP @ 20fps; 1080p / 1.3MP / 720p @ 30fps
    Extra Stream D1/CIF (1 ~ 25/30fps)
    Bit Rate H.264: 32Kbps ~ 8192Kbps
    Audio
    Compression G.711a/ G.711u/ AAC(optional)
    Interface Built-in Mic(optional)
    Network
    Network Interface RJ-45 (10/100M)
    Wi-Fi N/A
    Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
    ONVIF Compliance ONVIF,PSIA,CGI
    Max. User Access 20 users
    Smart Phone iPhone, iPad, Android, Windows Phone
    Auxiliary Interface
    Memory Slot Micro SD, Max 128GB
    RS485 N/A
    Alarm N/A
    PIR Sensor Range N/A
    General
    Power Supply DC12V, PoE (802.3af)
    Power Consumption Max 3.7W
    Working Environment -30°C~+60°C, Less than 95% RH
    Ingress Protection IP67
    Vandal Resistance N/A
    Dimensions Φ4.33"(110mm) x 3.19" (81mm)
    Weight 0.86 lbs

    Average Customer Rating:


    1 Most useful customer reviews
    Shankar
    Feb 3, 2015
    This customer purchased the item at our site.
    I must admit when I looked at this product at first I was like “it is not worth $270”. But I took the plunge and it worked out great for me. Not only is the appearance terrifically adorable and cute but is also can be bought with a built in mic. I would have thought that buying an extra internal mic would cost a bunch like buying extra lens but nope it costs barely 40 bucks. And since I'm already spending $270 on the camera why not just get the best one out there with the best specs and in total it costs around $300. I'm thoroughly satisfied with the excellence of this product and quality of data. Don’t regret buying it one bit! Also I didn’t mention that I can insert a micro SD card. I bought a 64 GB one specifically for this camera. Every now and again I switch on my phone and check in on the footage because everything about this camera is AWESOME!!
    Loading...Was the above review useful to you? Yes (0) / No (0)
