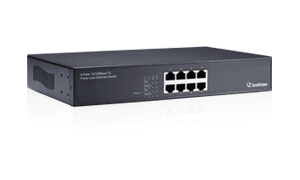

GV-POE0800 8 port 130W 802.3at 140-POE0800-000


$133.00


Availability: In Stock
List Price: $173.00
SKU: 84-POE0800-001U
Product #: 90074
Manufacturer:
Recorder Type: NVR (with POE Ports)

Remote Login Support:
Quantity

Camera packaging contents:

  • 8-port 10/100BaseTX, PSE/Power over Ethernet Ports
  • IEEE 802.3at Compliant (8 Ports at Full 15.4 W)
  • Max. 130 W power consumption
  • Auto-MDI/MDI-X
  • Auto-Negotiation
  • Non-Blocking
  • 11" Metal Case
  • Up to 7 GV-IP Cameras support
  1. GV-POE0800 x 1
  2. Screw x 8
  3. Rack Mount Kit x 1
  4. AC Power Cord x 1
  5. GV-POE0800 Quick Start Guide x 1
Introduction
The GV-POE0800 is an 8-port 10/100BaseTX, PSE Desktop PoE Fast Ethernet Switch. The switch supports IEEE 802.3at Power over Ethernet standard with up to 30 W per port and maximum 130 W power consumption per system. No special network cable is required for connecting your powered devices (PD), such as IP cameras. The switch is designed for small or medium network environment to strengthen its network connection and efficiency. It also gives you the option of installing it in an 11" cabinet with a rack mount kit or underneath a desk.



Firmware

Version History

POE_Comparison.pdf

Datasheet_POE0800.pdf

Item No. (Sales Part No.) Description
140-POE0800-000 GV-POE0800 8-Port 130W 802.3at

Ethernet
Layer Supported L2
Ports
Number of Ports 8 ports (Fast Ethernet 10/100BaseTX, IEEE 802.3at PSE)
Performance
MAC Address 4 K
Buffer Memory 1.625 M bits
Transmission Method Store and Forward
Transmission Media 10BaseT Cat. 5 UTP/STP 100BaseTX Cat. 5 UTP/STP
Filtering/Forwarding Rates 100 Mbps port - 148,800 pps 10 Mbps port - 14,880 pps
Backplane Capacity 1.6 Gbps
Mechanical Characteristics
LED Indicators Per Port: Link/Act PoE Act/Status Power
Electrical Characteristics
PoE Power Input 100 ~ 240 V/AC, 50 ~ 60 Hz
Output IEEE 802.3at Compliant Voltage, Per Port Max. 30 watts (8 Ports at Full 15.4 W / 4 Ports at Full 30 W)
PoE Power Supply Type End-Span
Max. Power Consumption 130 W
General
Dimensions (H x W x D) 44 x 266 x 160 mm (1.73" x 10.47" x 6.3")
Weight 1.6 kg (3.53 lb)
Operating Temperature 0°C ~ 45°C (32°F ~ 113°F)
Storage Temperature -20°C ~ 90°C (-4°F ~ 194°F)
Humidity 10 to 90% RH (non-condensing)
Standards and Regulatory
Standards IEEE-802.3at PoE+ / PSE IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3x Flow Control
Regulatory CE, FCC Class A
