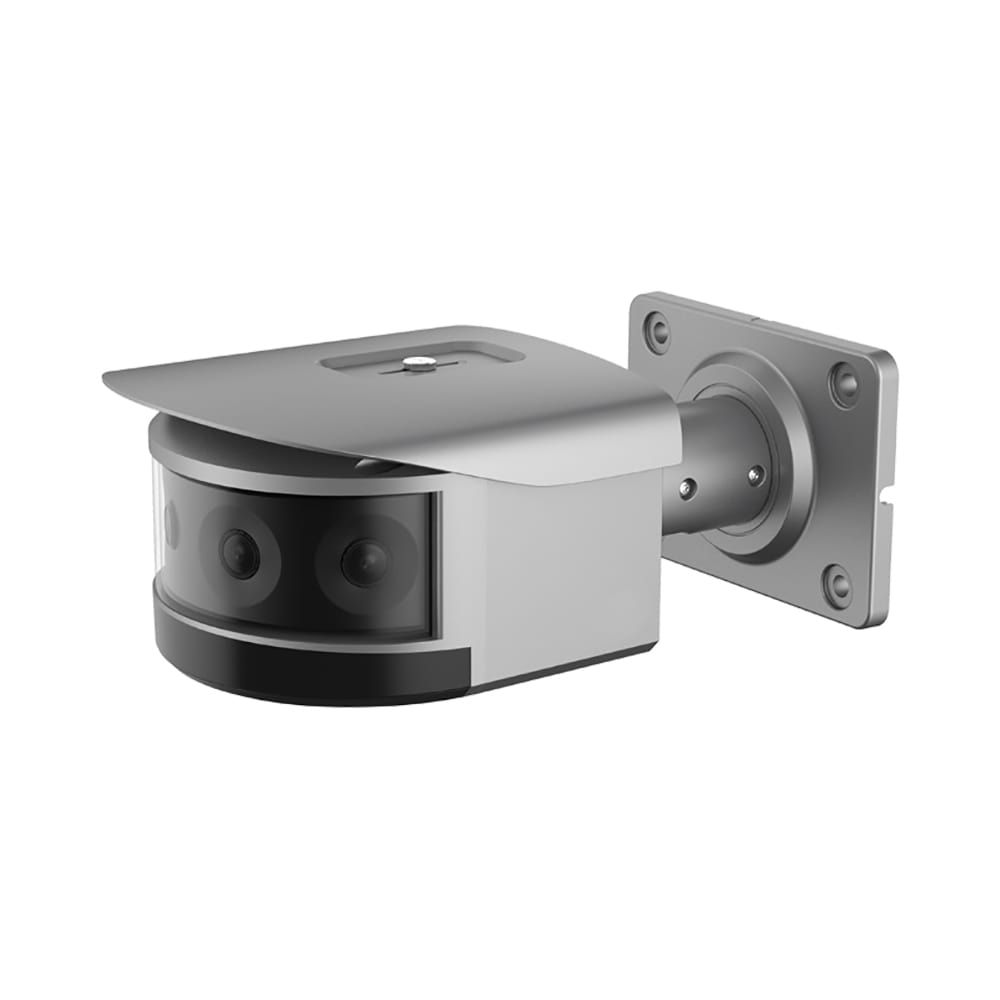

4 x 2 Megapixel Outdoor Network IR Bullet Camera, 2.8mm Lens (Panoramic Security Camera)
- ·Four 2MP 1/2.8" CMOS image sensor, low illuminance, high image definition
- · Outputs max. 8MP (4096 × 1800) @30 fps
- · H.265 codec, high compression rate, ultra-low bit rate
- · Built-in IR LED, max. IR distance: 30 m (98ft)
- · ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- · DWDR, 3D NR, HLC, BLC, digital watermarking
- · Intelligent functions: Crowd distribution map, Vehicle Density situation
- · Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- · Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G SD card
- · 12V DC/24V AC/PoE power supply; easy for installation
- · Supports object tracking
- · IP67, IK10 protection
- Panoramic Splicing
- With advanced splicing algorithm, Panoramic Splicing technology deletes overlapped area and splices multiple images to be a complete panorama. The field of view of the spliced image can be up to 360°, which largely improves surveillance efficiency and user experience. Generally, after splicing, the field of view of four-sensor Security camera can be 180°, and the field of view of eight-sensor camera can be 360°.
- Crowd Density
- With deep learning algorithm, Crowd Density technology can detect the crowd density on the image, and display it on heat map; it can detect people quantity and density in selected area and set threshold. When the number or density is larger or smaller than the threshold, it triggers linkage.
- Vehicle Density
- With deep learning algorithm, Vehicle Density technology analyses the vehicle situation in the image, such as vehicle number in selected area. You can set threshold, and when the number is larger or smaller than the threshold, it triggers linkage.
| Image Sensor | 1/2.8”4 × 2Megapixel progressive CMOS | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| RAM/ROM | 4GB/2GB | ||||||||
| Electronic Shutter | Auto/Manual 1/3 s–1/100,000 s | ||||||||
| Minimum Illumination | 0.002 Lux @F1.6 | ||||||||
| S/N Ratio | More than 50dB | ||||||||
| IR LEDs | 8 | ||||||||
| Smart IR | Support | ||||||||
| IR Distance | 30m (98ft) | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Focal Length | 2.8mm | ||||||||
| Angle of View | Horizontal: 180°; Vertical: 90° | ||||||||
| Max. Aperture | F1.6 | ||||||||
| Close Focus Distance | 0.6 m (2.0 ft) | ||||||||
| DORI Distance |
| ||||||||
| Pan / Tilt / Rotation | Pan: 0°–355° Tilt: 0°–90° Rotation:0°–360° | ||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | ||||||||
| Streaming Capability | 3 streams | ||||||||
| Video Resolution | 4096 × 1800; 3840 × 1680; 2880 × 1264; 1024 × 452; 1920 × 832; 1280 × 560 | ||||||||
| Video Frame Rate | Main stream: 4096 × 1800 (1–25/30 fps) Sub stream: 1024 × 452 (1–25/30 fps) Third stream: 1920 × 832 (1–25/30 fps) | ||||||||
| Video Bitrate | H.264: 9 kbps–17664 kbps H.265: 9 kbps–17664 kbps | ||||||||
| Day / Night | Auto (ICR)/Color/B/W | ||||||||
| Wide Dynamic Range | DWDR | ||||||||
| BLC Mode | Yes | ||||||||
| HLC | Yes | ||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||
| Gain Control | Auto/Manual | ||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||
| Region of Interest | Yes (4 areas) | ||||||||
| Defog | Yes | ||||||||
| Privacy Masking | 4 areas | ||||||||
| Audio Compression | G.711A; G.711Mu; G.726; AAC; G.723 | ||||||||
| Audio In | 1 channel (RCA port) | ||||||||
| Audio Out | 1 channel (RCA port) | ||||||||
| Alarm In | 2 channels in: 5mA 3V–5V DC | ||||||||
| Alarm Out | 2 channels out: 1,000mA 30V DC/500mA 50V DC | ||||||||
| Intelligent Identification | Vehicle density; parking upper limit; vehicle congestion alarm | ||||||||
| AI Perimeter Protection | Tripwire; intrusion | ||||||||
| Advanced AI Functions | Crowd map, global people counting; people counting in area | ||||||||
| Ethernet | RJ-45 (10/100/1000 Base-T) | ||||||||
| Network Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP | ||||||||
| Network Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec | ||||||||
| Network Max. Users | 20 | ||||||||
| Storage | Cloud (only supported by the manufacturer's vesion); FTP; SFTP; Micro SD card (support max. 256 G); NAS | ||||||||
| Storage Card | Micro SD, up to 256GB | ||||||||
| Web Viewer | IE: IE9 and later Chrome: 50 and later Firefox: 48 and later | ||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||
| Mobile | iPhone, Android |
- Shipping info
We deliver worldwide
- Payment methods
- Return Policy
We accept returns
- Customer Reviews
Check out our customer Reviews
- ·Four 2MP 1/2.8" CMOS image sensor, low illuminance, high image definition
- · Outputs max. 8MP (4096 × 1800) @30 fps
- · H.265 codec, high compression rate, ultra-low bit rate
- · Built-in IR LED, max. IR distance: 30 m (98ft)
- · ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- · DWDR, 3D NR, HLC, BLC, digital watermarking
- · Intelligent functions: Crowd distribution map, Vehicle Density situation
- · Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- · Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G SD card
- · 12V DC/24V AC/PoE power supply; easy for installation
- · Supports object tracking
- · IP67, IK10 protection
- Panoramic Splicing
- With advanced splicing algorithm, Panoramic Splicing technology deletes overlapped area and splices multiple images to be a complete panorama. The field of view of the spliced image can be up to 360°, which largely improves surveillance efficiency and user experience. Generally, after splicing, the field of view of four-sensor Security camera can be 180°, and the field of view of eight-sensor camera can be 360°.
- Crowd Density
- With deep learning algorithm, Crowd Density technology can detect the crowd density on the image, and display it on heat map; it can detect people quantity and density in selected area and set threshold. When the number or density is larger or smaller than the threshold, it triggers linkage.
- Vehicle Density
- With deep learning algorithm, Vehicle Density technology analyses the vehicle situation in the image, such as vehicle number in selected area. You can set threshold, and when the number is larger or smaller than the threshold, it triggers linkage.
| Image Sensor | 1/2.8”4 × 2Megapixel progressive CMOS | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| RAM/ROM | 4GB/2GB | ||||||||
| Electronic Shutter | Auto/Manual 1/3 s–1/100,000 s | ||||||||
| Minimum Illumination | 0.002 Lux @F1.6 | ||||||||
| S/N Ratio | More than 50dB | ||||||||
| IR LEDs | 8 | ||||||||
| Smart IR | Support | ||||||||
| IR Distance | 30m (98ft) | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Focal Length | 2.8mm | ||||||||
| Angle of View | Horizontal: 180°; Vertical: 90° | ||||||||
| Max. Aperture | F1.6 | ||||||||
| Close Focus Distance | 0.6 m (2.0 ft) | ||||||||
| DORI Distance |
| ||||||||
| Pan / Tilt / Rotation | Pan: 0°–355° Tilt: 0°–90° Rotation:0°–360° | ||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) | ||||||||
| Streaming Capability | 3 streams | ||||||||
| Video Resolution | 4096 × 1800; 3840 × 1680; 2880 × 1264; 1024 × 452; 1920 × 832; 1280 × 560 | ||||||||
| Video Frame Rate | Main stream: 4096 × 1800 (1–25/30 fps) Sub stream: 1024 × 452 (1–25/30 fps) Third stream: 1920 × 832 (1–25/30 fps) | ||||||||
| Video Bitrate | H.264: 9 kbps–17664 kbps H.265: 9 kbps–17664 kbps | ||||||||
| Day / Night | Auto (ICR)/Color/B/W | ||||||||
| Wide Dynamic Range | DWDR | ||||||||
| BLC Mode | Yes | ||||||||
| HLC | Yes | ||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||
| Gain Control | Auto/Manual | ||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||
| Region of Interest | Yes (4 areas) | ||||||||
| Defog | Yes | ||||||||
| Privacy Masking | 4 areas | ||||||||
| Audio Compression | G.711A; G.711Mu; G.726; AAC; G.723 | ||||||||
| Audio In | 1 channel (RCA port) | ||||||||
| Audio Out | 1 channel (RCA port) | ||||||||
| Alarm In | 2 channels in: 5mA 3V–5V DC | ||||||||
| Alarm Out | 2 channels out: 1,000mA 30V DC/500mA 50V DC | ||||||||
| Intelligent Identification | Vehicle density; parking upper limit; vehicle congestion alarm | ||||||||
| AI Perimeter Protection | Tripwire; intrusion | ||||||||
| Advanced AI Functions | Crowd map, global people counting; people counting in area | ||||||||
| Ethernet | RJ-45 (10/100/1000 Base-T) | ||||||||
| Network Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP | ||||||||
| Network Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec | ||||||||
| Network Max. Users | 20 | ||||||||
| Storage | Cloud (only supported by the manufacturer's vesion); FTP; SFTP; Micro SD card (support max. 256 G); NAS | ||||||||
| Storage Card | Micro SD, up to 256GB | ||||||||
| Web Viewer | IE: IE9 and later Chrome: 50 and later Firefox: 48 and later | ||||||||
| Management Software | Smart PSS; DSS; DMSS | ||||||||
| Mobile | iPhone, Android |
- ManufacturerUniview
- Camera TypeBullet
- Camera SignalIP
- Lens Size2.8mm
- Warranty3 Year warranty
- Remote Login SupportNo Login Support Needed, 1 Time FREE Setup: Remote Access Mobile App Configuration - Motion Detection Setup
