  • *EASY SETUP* Complete Outdoor 4 Camera Infrared Color Sony Super HAD CCD with DVR and Remote Internet Viewing Security Camera System

*EASY SETUP* Complete Outdoor 4 Camera Infrared Color Sony Super HAD CCD with DVR and Remote Inte...
        • *EASY SETUP* Complete Outdoor 4 Camera Infrared Color Sony Super HAD CCD with DVR and Remote Inte...
        • WG4-760 DVR / WEC-480 Video Surveillance System
        • WEC WEC-480 Color Infrared Day/Night Security Camera

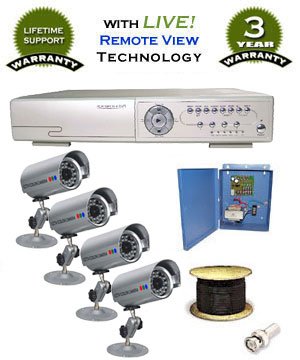

        *EASY SETUP* Complete Outdoor 4 Camera Infrared Color Sony Super HAD CCD with DVR and Remote Internet Viewing Security Camera System

        SKU: WG4-760-4-WEC-480-KIT
        H264
        SKU: WG4-760-4-WEC-480-KIT
        • The Company offers a complete line of Safety and Security, CCTV, access products. The Model is *EASY SETUP* Complete Outdoor 4 Camera Infrared Color Sony Super HAD CCD with DVR and Remote Internet Viewing Security Camera System. This camera will bring you a high resolution color 480 TVL crystal clear image during the day, then automatically go into black and white/infrared mode in order to allow you to identify objects in total darkness, (0 Lux). This camera is only 4 inches in length and is a favorite for both indoor and outdoor installations where lighting is dull and quality is needed. You do not need a housing for this camera as it is weatherproof and waterproof. If you are looking for the best bang for the buck, we recommend this one for almost any application.
        • (1) WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder (DVR)
        • (4) WEC-480 Color Infrared Day/Night Security Bullet Cameras
        • (1) 4 Camera 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
        • (4) 100' Video/Power Cables & Cable Connectors
          • 33% less
          Market price:$1559.00 save $509.01
        • $1049.99

        OR
         The Company offers a complete line of Safety and Security, CCTV, access products. The Model is *EASY SETUP* Complete Outdoor 4 Camera Infrared Color Sony Super HAD CCD with DVR and Remote Internet Viewing Security Camera System. This camera will bring you a high resolution color 480 TVL crystal clear image during the day, then automatically go into black and white/infrared mode in order to allow you to identify objects in total darkness, (0 Lux). This camera is only 4 inches in length and is a favorite for both indoor and outdoor installations where lighting is dull and quality is needed. You do not need a housing for this camera as it is weatherproof and waterproof. If you are looking for the best bang for the buck, we recommend this one for almost any application. The DVR is featured by MPEG-4 Compression. 4 Video Inputs, 1 Audio Input. Triplex, 120 Frames per Second. Internet Explorer Remote Access. Remote Setup. DDNS Support. RS485 PTZ Support. Video Loop Out. Intuitive On-Screen Menu Programming. Digital Motion Detection. The WG4-760 also features advanced remote network options including true DDNS for dynamic IPs and email alerts. A 160GB hard drive generally allows continuous recording of up to 2 weeks under the most common recording conditions.  However, recording time will vary depending on quality and recording rate.  When all available hard drive space is consumed, the WG4-760 automatically begins recording over the oldest video. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.
        This 4 Channel Video Package         Includes:
        • (1) WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder
        • (4) WEC-480 Color Infrared Day/Night Security Bullet Cameras
        • (1) 4 Camera 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
        • (4) 100' Video/Power Cables & Cable Connectors





        CAMERA DETAILS:

        This is our most popular bullet camera and with just cause. Crisp color image during normal lighting and see an amazing 60 ft. in complete darkness. This camera is completely waterproof and incorporates a Sony 1/3" SuperHAD CCD.
        • SONY 1/3" super HAD CCD
        • 23 High Powered LEDs
        • Waterproof Housing
        • Powerful function : AGC control: Auto
        • Lens: 1x (3.6mm or 6.0mm)
        This camera will bring you a high resolution color 480 TVL crystal clear image during the day, then automatically go into black and white/infrared mode in order to allow you to identify objects in total darkness, (0 Lux). This camera is only 4 inches in length and is a favorite for both indoor and outdoor installations where lighting is dull and quality is needed. You do not need a housing for this camera as it is weatherproof and waterproof. If you are looking for the best bang for the buck, we recommend this one for almost any application.

        Specifications:

        • Image Pick-up Device: 1/3" SONY Super HAD CCD
        • Video System: NTSC
        • Pixel:NTSC:512(H)*492(V)
        • Horizontal Resolution: 480TV Lines
        • S/N Ratio(AGC Off): =48dB
        • Video output frequency: 1.0Vp-p/75 Ohm
        • Lens Image Function: Standard / Lens Image
        • Electronic shutter time: 1/60-1/100,000second
        • Minimum illumination(F1.2): 0.8 Lux (AGC ON)
        • AGC Control: Auto
        • Backlighting compensation: Auto
        • IR Light Distance: 15-20M
        • Power Supply: DC 12V <150mA
        • Power Consumption: DC 12V,120mA
        • Operation Temperature:-20c~+50c?
        • Color waterproof Day&Night Camera
        [Click here to view our Lens Chart]
        DVR DETAILS:
        4 Camera Inputs, 1 Channel Audio, MPEG-4, Triplex, 120 FPS

        The WG4-760 digital video recorder is a versatile and intuitive entry level recorder featuring simple setup and MPEG-4 compression.

        The WG4-760 can record video from as many as 4 cameras, in addition to 1 channel of audio.  The triplex feature allows simultaneous record, playback, and network functions, ensuring constant surveillance.  Built-in digital motion detection eliminates the need for external motion hardware and sensitivity levels, along with masking areas are fully customizable.  The simple OSD ensures a quick setup and easy user operation.

        Complete video backup can be performed via the network client software.  In addition to video backup, the client software provides off-site PC recording.

        Remote viewing, setup, and playback on the WG4-760 are available via Internet Explorer or the client software included with the unit.  Video can easily be converted to the standard .AVI format for backup and review in standard media players.

        The WG4-760 also features advanced remote network options including true DDNS for dynamic IPs and email alerts.

        A 160GB hard drive generally allows continuous recording of up to 2 weeks under the most common recording conditions.  However, recording time will vary depending on quality and recording rate.  When all available hard drive space is consumed, the WG4-760 automatically begins recording over the oldest video.

        The WG4-760 provides for more than a simple VCR replacement.  It features above standard specifications with simple setup, simple operation and reliability.
        PRODUCT FEATURES
        • MPEG-4 Compression
        • 4 Video Inputs, 1 Audio Input
        • Triplex
        • 120 Frames per Second
        • Internet Explorer Remote Access
        • Remote Setup
        • DDNS Support
        • RS485 PTZ Support
        • Video Loop Out
        • Intuitive On-Screen Menu Programming
        • Digital Motion Detection

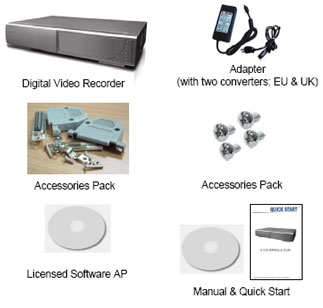

        WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder

        Demo Site:

        Username: admin
         Password: admin

        DVR SPECIFICATIONS
        GENERALENVIRONMENTAL
        Video Inputs4 inputs, 1.0Vp-p, 75 ohm unbalancedOperating Temperature50 to 104 degrees F (10 to 40 degrees C)
        Video Outputs4 Video Loop OutsPHYSICAL
        1 Main MonitorDimensions343(W) x 59(H) x 223(D) mm
        1 Call MonitorMECHANICAL
        Audio Inputs1 audio inputCamera InputsBNC female
        Audio Outputs1 audio outputCamera OutputsBNC female
        Horizontal Resolution720 x 480 (NTSC)Monitor OutputBNC female
        Display1, 4Audio InputRCA female
        ZoomLive 2x ZoomAudio OutputRCA female
        SequenceAvailableAlarm InputsDB-25 female
        Screen QualityFull: 720 x 480 Active Pixels (NTSC)Alarm OutputsDB-25 female
        1/4 Screen: 360 x 240 Active Pixels (NTSC)RS232/RS48515PIN DSUB
        Record QualityCIF





        Display Rate120 frame/second (4x30)
        Recording Rate (Max)120, 60, 30, 15
        Record QualityBest, High, Normal, Low
        Compression TypeMPEG-4
        Record ModeNormal, Schedule, Motion Detect, Alarm
        Playback ModeDate/Time Search or Event Search
        Operation ModeTriplex
        Motion DetectArea Division: 16 x 12, on/off selectable
        Motion Detect and Relay On Simultaneous
        Motion Sensitivity4 adjustable variables
        Pre-Alarm RecordingYes (8MB)
        WatermarkYes
        Key LockYes
        Network SupportTCP/IP, PPPoE, DHCP, DDNS
        Network FunctionInternet Explorer, Remote Client Software
        Web CompressionMJPEG
        Remote NotificationEmail images
        Alarm4 Alarm Inputs / 1 Relay Output
        Back-upNetwork
        RS485PTZ (Pelco D)
        StorageInternal 1 HDD (no size limitation)

        Worldeyecam[Click here for detailed Specification PDF]

        Worldeyecam[Click here for PDF Product Manual]
