2018 Security Products 1069

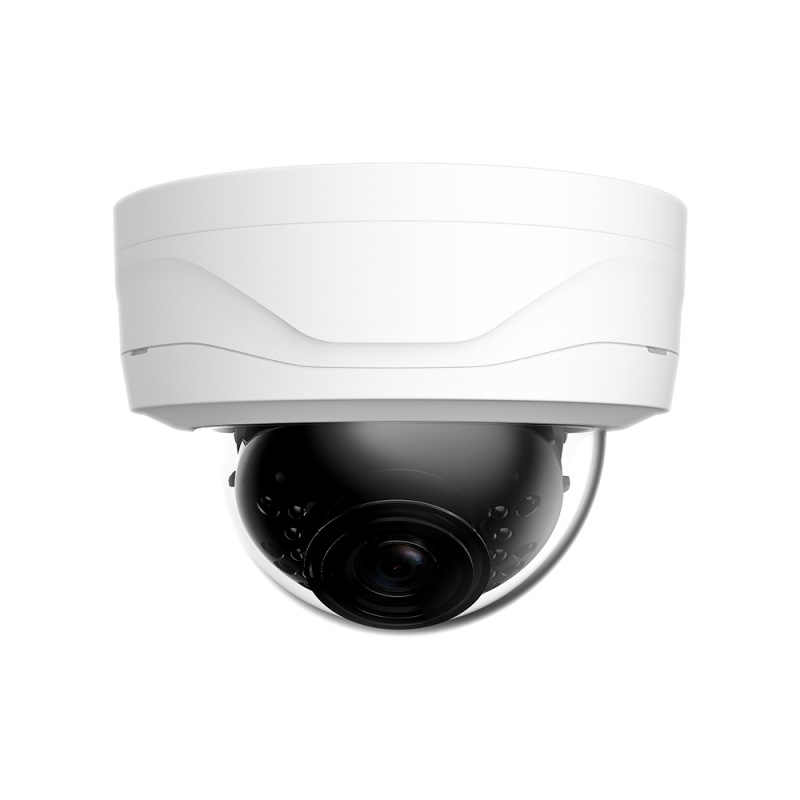

2MP WDR NIGHTCOLOR Starlight Dome Network Camera


$259.00


Availability: In Stock
List Price: $410.00
SKU: WECHNC5V229R-IRASE/36
Product #: 112762
Manufacturer:
Camera Type: Dome
Camera Resolution: 2 Megapixel
Camera Signal: IP
Lens Size: 3.6mm

Quantity

Features

  • 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
  • H.265&H.264 triple-stream encoding
  • 50/60fps@1080(1920x1080)
  • Smart Detection Supported
  • WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC
  • Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
  • 2.8mm fixed lens
  • 1/1 Alarm in/out, 1/1 audio in/out
  • Micro SD card memory, IP67, IK10, PoE
Image Sensor 1/2.8” 2Megapixel progressive scan CMOS
Image Size 1920(H) x 1080(V)
RAM/ROM 256MB/32MB
Electronic Shutter Auto/Manual, 1/3~1/100000s
Minimum Illumination

0.001Lux/F1.0 (Color,1/3s,30IRE)
0.006Lux/F1.0 (Color,1/30s,30IRE)


S/N Ratio > 50dB
IR LEDs N/A
Smart IR N/A
IR Distance N/A
IR On/Off Control N/A
Focal Length 3.6mm
Angle of View H:87°~54° , V:47°~20°
Max. Aperture F1.0
Optical Zoom Fixed
Close Focus Distance 1.6m(5.3ft)
DORI Distance

Lens

Detect

Observe

Recognize

Identify

3.6mm

53m(174ft)

21m(69ft)

11m(36ft)

5m(16ft)

Pan / Tilt / Rotation Pan:0˚~360˚; Tilt:0˚~80˚; Rotation:0˚~360˚
IVS Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions Face Detection
Video Compression H.265/H.264/H.264B/H.264H
Streaming Capability 3 Streams
Video Resolution

1080P(1920x1080)/1.3M(1280x960)/ 720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)

Video Frame Rate

Main Stream: 1080P(1~50/60fps)
Sub Stream: D1 (1 ~ 50/60fps)
Third Stream: 1080P(1~25/30fps)

Video Bitrate

H.264: 24K ~ 10240Kbps
H.265: 14K ~ 9984Kbps

Day / Night Auto / Color / B/W
BLC Mode BLC / HLC / WDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Digital Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Stabilization (EIS) N/A
Defog N/A
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Audio Compression G.711a/ G.711Mu/ AAC/ G.726
IPC Alarm Yes
Ethernet RJ-45 (10/100Base-T)
Network Protocol HTTP;HTTPS;TCP;ARP;RTSP;RTP;RTCP;UDP;PPPOE;IEEE802.1X;SMTP;SNMP;FTP;DHCP;DNS;DDNS;PPPoE;IPV4/V6;QoS;UPnP;NTP;Bonjour;IEEE 802.1X;Multicast;ICMP;IGMP;TLS;SSH;NFS
Network Interoperability ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Network Max. Users 10 Users/20 Users
Storage NAS Local PC for instant recording
Storage Card Mirco SD card 128GB
Web Viewer IE, Chrome, Firefox, Safari
Management Software Smart PSS, DSS, DMSS
Mobile iPhone, Android
Video Output N/A
Certifications CE (EN 60950:2000)
UL:UL60950-1
FCC: FCC Part 15 Subpart B

Audio Interface 1/1 channel In/Out
RS485 N/A
Alarm In 1 channel In: 5mA 5VDC
Alarm Out 1 channel Out: 300mA 12VDC
Power Supply DC12V, PoE(802.3af)(Class 10)
Power Consumption <3.7W
Operating Temperature -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Storage Temperature -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection IP67,IK10
Dimensions 122mm×88.9mm (4.8”×3.5”)
Weight Net Weight 0.44kg (0.97lb) Gross Weight 0.58kg (1.29lb)
*}
