2MP LightHunter WDR Network Box Camera

SKU: IPC542SE-HDK-I0
UNV
SKU: IPC542SE-HDK-I0
    • 5% less
    Market price:$1310.00 save $61.00
  • $1249.00

OR

    High quality image with 2MP,1/2.8’’ CMOS sensor

1687004907315.png1920*1080@60fps in the main stream

1687004907410.pngUltra 265, H.265, H.264, MJPEG

1687004907195.pngTriple streams

1687004907696.pngSmart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection

1687004907109.pngPeople Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios

1687004907548.pngLightHunter technology ensures ultra-high image quality in low illumination environment

1687004907629.pngUp to 120 dB Optical WDR (Wide Dynamic Range)

1687004907019.pngDC12V or AC24V or PoE (IEEE 802.3af) power supply

1687004906921.pngWide voltage range of ±25%

1687004907768.pngAudio 1 in and 1 out, Alarm 2 in and 1 out

 IPC542SE-HDK-I0
Camera
Sensor1/2.8", 2.0 megapixel, progressive scan, CMOS
Min. IlluminationColour:0.0005lux (F1.2, AGC ON)
B/W: 0.0001Lux(F1.2, AGC ON)
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
WDR120dB
S/N>52dB
ABFN/A
Lens
Lens MountC/CS
IrisDC-Iris/P-Iris, DC 5V (4 Pins)
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 2MP (1920*1080),Max 60fps;
Sub Stream: 720P (1280*720), Max 60fps;
Third Stream: D1 (720*576), Max 60fps
Video Bit Rate128 Kbps~16 Mbps
U-codeSupport
ROIUp to 8 areas
Video streamTriple streams
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas per scene
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
FlipNormal/Flip Vertical/Flip Horizontal/180°/90° Clockwise/90° Anti-clockwise
HLCSupport
BLCSupport
DefogDigital Defog
Intelligent
Smart intrusion preventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
People countingSupport people flow counting and crowd density monitoring
Events
Basic DetectionMotion detection, Audio detection, Tampering alarm
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API,SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and common user
SecurityPassword protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation
EZLive
Ezview
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O1/1
Alarm I/O2/1
Serial Port1 RS485
Built-in MicN/A
Built-in SpeakerN/A
Network1 * RJ45 10M/100M Base-TX Ethernet
Video Output1 BNC
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionN/A
General
PowerDC12V(±25%), AC24V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 7W
Power InterfaceTwo-core terminal block

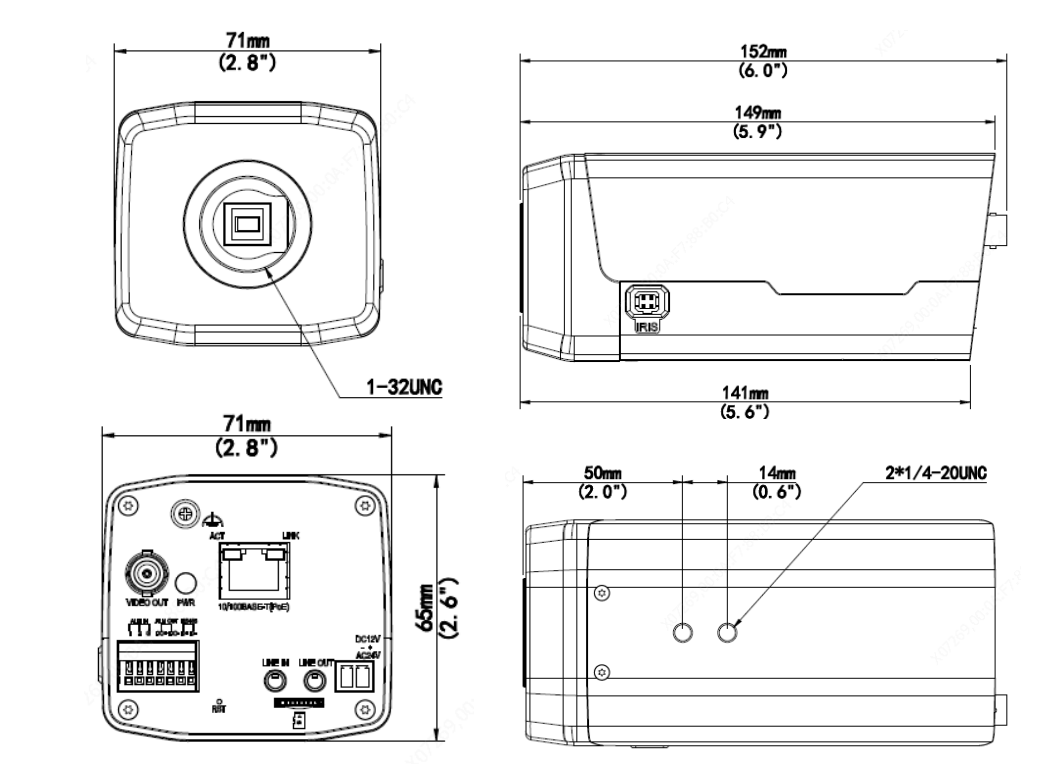

Dimensions (L x W x H)152 x 71 x 65mm (6.0“ x 2.8“ x 2.6”) (excluding the lens)
Weight0.38kg (0.84lb)
Working Environment-20°C ~ 50°C (-4°F ~ 122°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-40℃~70℃(-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge Protection6KV
Reset buttonSupport


Datasheet of IPC542SE-HDK-I0

IPC540_IPC560 Series-Network Box Cameras Quick Guide-V1.01

Camera Installation Guide-V1.00

Network Cameras User Manual-V3.00
