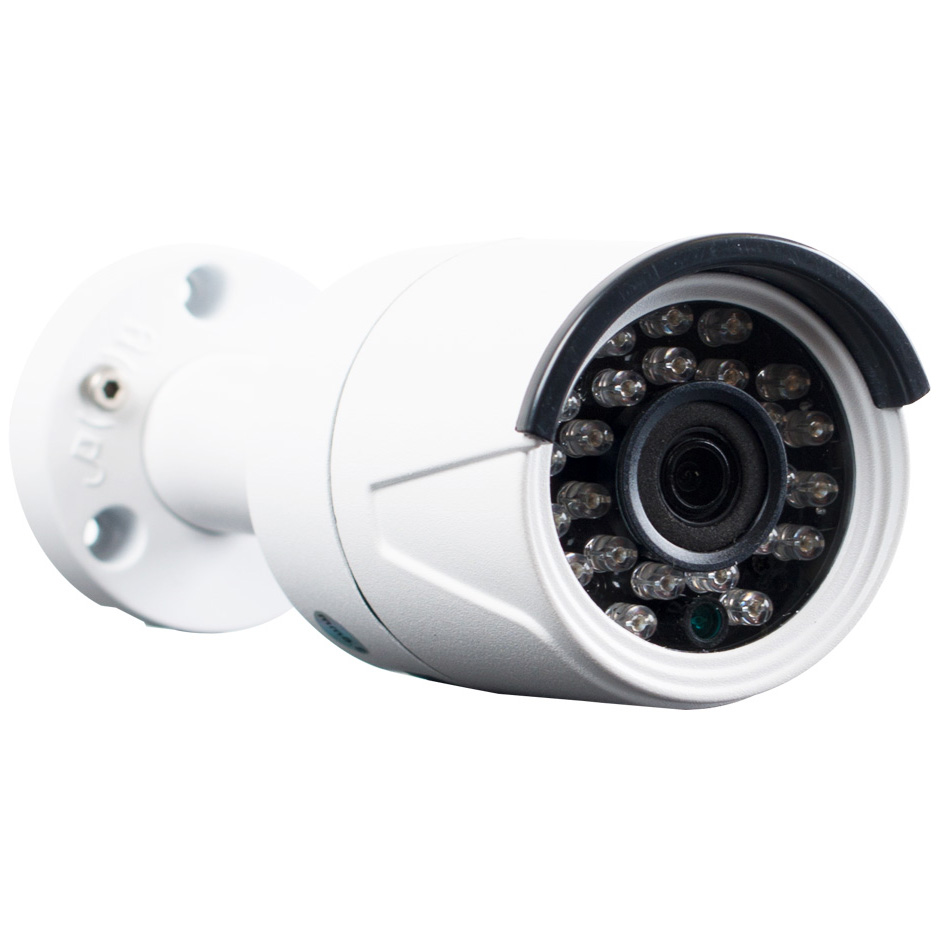

2 Megapixel, 3.6mm Fixed Lens, Waterproof, Infrared, 4-in-1 Mini-Cylinder Camera


Availability: In Stock
Product #: 90819
Camera Resolution: 1080p
Camera Signal: 4 in 1
Lens Size: 3.6mm
Optical Zoom: Fixed Lens
Sensor: 2 MP Image Sensor



  • 1/2.7” 2 Megapixel CMOS Image Sensor
  • 4 Selectable Video Types: TVI, AHD, CVI and CVBS
  • 1080p Image Resolution
  • 3.6mm Fixed Lens
  • Maximum IR LED Distance 20~30m
  • Day/Night (ICR), AWB, AGC, 2DNR
  • IP66 Ingress Protection Rating

  • Technical Specifications

    WEC-CXJ1 1080p 4-in-1 3.6mm Mini-Cylinder Camera
    Camera Feautures
    Image Sensor 1/2.7” 2 Megapixel CMOS Image Sensor
    Digital Signal Processor V320
    Effective Pixels 1920 (H) x 1080 (V)
    Electronic Shutter Speed Auto
    Video Frame Rate CVI, TVI, AHD: 1080p / CVBS: 1280 x 480
    Synchronization Internal
    Minimum Illumination 0.01 Lux/F1.2 (AGC on); 0 Lux (IR on)
    Synchronization Internal
    Video Output 1 Channel BNC HDCVI/HDTVI/AHD/CVBS Video Output (dip switch selectable)
    Video Output 1 Channel BNC AHD/TVI/CVI Video Output (toggle switch selectable) 1 Channel BNC CVBS Output
    Maximum IR LED Distance 20m~30m
    Day/Night Auto (ICR) / Color / B&W
    Noise Reduction 2DNR
    Lens Size 3.6mm
    Field of View Horizontal: 80.6°
    Lens Type Fixed
    Mount Type M12
    Power Requirement DC12V
    Power Consumption less than 6W
    Operating Environment -10°C - +60°C, < 90% Relative Humidity
    Ingress Protection Rating IP66
    Dimensions 188mm x 66mm
    Weight ~1lbs
    Shipping Weight 2lbs
