Outdoor 1/3" Sony Super HAD color CCD 600 TVL color / 700 TVL B/W 0.0002lux 2.8mm~12mm AVF 3D DNR ICR-IR CUT / OSD, Dual Power


Availability: In Stock
List Price: $399.00
Product #: 24253
Camera Resolution: 700+ TVL
Camera Signal: Analog
Lens Size: 2.8-12mm
Optical Zoom: Varifocal

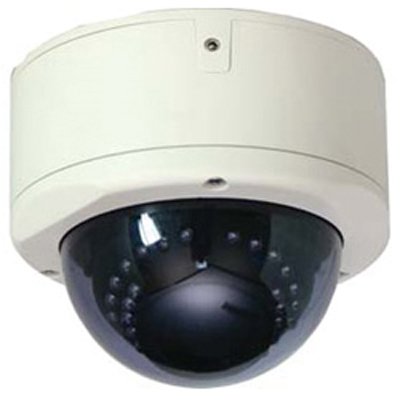

This surveillance camera is durable and approved for outdoor use. It has a 2.8-12mm varifocal lens with 10x digital zoom. The security camera has a 700TVL resolution and infrared technology for recording color images even in very low light. It also comes equipped with digital noise reduction, privacy masking and dual power supply.


1/3" Sony Super HAD CCD 600 TV Lines 2.8mm~12mm Aspherical AI Lens 12V DC/24V AC Dual Power

- UP-Most High Resolution : Color - 600TV Lines / B/W - 700 TV Lines
- Built - In Next Generation 3D DNR with 3D Filter
- Max. Sens-Up (×256), 0.0002 Lux of Min. illumination
- Convenient OSD control function
- 2:1 Interlace Scanning
- ×10 Digital Zoom
- 52 Different Camera IDs
- Free Area Selectable function of BLC and MD
- Privacy Color Masking for 8 Area selection
- Day & Night Function
- Adjustable Sharpness levels
- ICR-IR Infrared Cut Filter Removable(Option)
- Max 70% of Disk Saving Effect with Super DNR
- Negative Image Function
- Vertical and Horizontal Image Flip available


Image Pick-up Device 1/3" Sony Super HAD CCD
Effective Pixels 768 (H) x 494 (V)
Scanning Frequency 15.734 KHz (H) / 60 Hz (V)
Scanning System 2:1 Interlace
Synchronization Internal
OSD Available
Backlight On / Off (Level Selectable)
Resolution 600 TV Lines (Color), 700 TV Lines (B&W)
S/N 52 dB (AGC Off, Weight On)
Min. Illumination 0.1Lux @F1.2(Normal mode) / 0.0002Lux(Sens-up x256)
White Balance ATW / AWB / Manual / AWC --> Set
Electronic Shutter Speed Auto (1/60 ~ 1/120,000sec)
Sens-Up Off / Auto (Selectable Limi *2 ~ *258)
Automatic Gain Control High, Middle, Low, Off Selectable
DNR Off / On (Level setting)
Sharpness On / Off (Level adjustable)
Motion Detection On/Off
Privacy On/Off (8 Zones)
Mirror Off / Mirror / V-Rev / Rotate
Freeze On / Off
Sharpness 0~31' (Level Adjustable)
D&N Selection Color / BW / Auto
Digital Zoom On (x10) / Off
Blemish Compensation 256 Point (Even 128 Point, ODD 128 Point)
Power DC12V(±10%) / AC24V(±10%) Dual Power regulated
Power Consumption 120mA Max
Lens DC Auto Iris Varifocal Lens (2.8mm-12mm)
Operating Temperature -10c ~ +50c, RH 90% Max
Operating Humidity 30% ~ 90% RH
Dimension 136 mm (Dia) x 111 mm (H)
Weight 875g
