WG4-760 DVR & WACD-25S Video Security Cameras Kit

Sony
SKU: WG4-760-WACD-25S-KIT

The Company offers a complete line of Safety and Security, CCTV, access products. The Model is WG4-760 DVR & WACD-25S Video Security Cameras Kit. The WG4-760 digital video recorder is a versatile and intuitive entry level recorder featuring simple setup and MPEG-4 compression. The WG4-760 can record video from as many as 4 cameras, in addition to 1 channel of audio. The triplex feature allows simultaneous record, playback, and network functions, ensuring constant surveillance. Built-in digital motion detection eliminates the need for external motion hardware and sensitivity levels, along with masking areas are fully customizable. The simple OSD ensures a quick setup and easy user operation. Complete video backup can be performed via the network client software. In addition to video backup, the client software provides off-site PC recording.This WorldEYECAM kit includes:
(1) WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder
(2) AccuDome WACD-25S Digital CCD Color Dome Security Cameras

    • 47% less
    Market price:$999.00 save $470.00
  • $529.00
Qty:
OR

The Company offers a complete line of Safety and Security, CCTV, access products. The Model is WG4-760 DVR & WACD-25S Video Security Cameras Kit. The WG4-760 digital video recorder is a versatile and intuitive entry level recorder featuring simple setup and MPEG-4 compression. The WG4-760 can record video from as many as 4 cameras, in addition to 1 channel of audio. The triplex feature allows simultaneous record, playback, and network functions, ensuring constant surveillance. Built-in digital motion detection eliminates the need for external motion hardware and sensitivity levels, along with masking areas are fully customizable. The simple OSD ensures a quick setup and easy user operation. Complete video backup can be performed via the network client software. In addition to video backup, the client software provides off-site PC recording. The WACD-25S is an entry level, professional, indoor, color dome camera providing a very clean surveillance installation. The WACD-25S features a Sony Super HAD™ 420 line CCD sensor with an electronic iris, allowing automatic compensation for varying light levels. Excellent picture quality is assured with 420 TV lines resolution and 1.0 lux sensitivity. With 2 plane mounting options, the WACD-25S can be mounted on the wall, ceiling, or angled surfaces. The WACD-25S can accommodate a variety of fixed lens sizes ranging from 2.1mm wide angle to 25mm telephoto. The camera can easily be positioned by rotating the base for horizontal positioning, while easily removing the cover to access the simple tilt mechanism. The non-intrusive, discreet housing is ideal for retail or public installs. Compact and simple design allows for a quick installation. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.

This WorldEYECAM kit includes:
(1) WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder
(2) AccuDome WACD-25S Digital CCD Color Dome Security Cameras

4 Camera Inputs, 1 Channel Audio, MPEG-4, Triplex, 120 FPS Compatible with Macintosh: MAC PCs

The WG4-760 digital video recorder is a versatile and intuitive entry level recorder featuring simple setup and MPEG-4 compression.

The WG4-760 can record video from as many as 4 cameras, in addition to 1 channel of audio. The triplex feature allows simultaneous record, playback, and network functions, ensuring constant surveillance. Built-in digital motion detection eliminates the need for external motion hardware and sensitivity levels, along with masking areas are fully customizable. The simple OSD ensures a quick setup and easy user operation.

Complete video backup can be performed via the network client software. In addition to video backup, the client software provides off-site PC recording.

Remote viewing, setup, and playback on the WG4-760 are available via Internet Explorer and Apple Firefox for Mac Apple computers or the client software included with the unit. Video can easily be converted to the standard .AVI format for backup and review in standard media players.

The WG4-760 also features advanced remote network options including true DDNS for dynamic IPs and email alerts.

A 160GB hard drive generally allows continuous recording of up to 2 weeks under the most common recording conditions. However, recording time will vary depending on quality and recording rate. When all available hard drive space is consumed, the WG4-760 automatically begins recording over the oldest video.

The WG4-760 provides for more than a simple VCR replacement. It features above standard specifications with simple setup, simple operation and reliability.
PRODUCT FEATURES
  • MPEG-4 Compression
  • 4 Video Inputs, 1 Audio Input
  • Triplex
  • 120 Frames per Second
  • Internet Explorer Remote Access
  • Remote Setup
  • DDNS Support
  • RS485 PTZ Support
  • Video Loop Out
  • Intuitive On-Screen Menu Programming
  • Digital Motion Detection

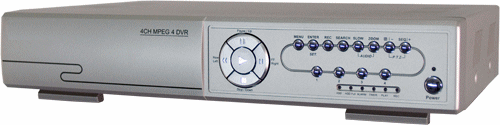

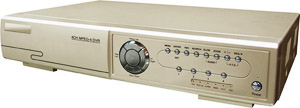

WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder

Demo Site:

Username: admin
Password: admin

DVR SPECIFICATIONS
GENERALENVIRONMENTAL
Video Inputs4 inputs, 1.0Vp-p, 75 ohm unbalancedOperating Temperature50 to 104 degrees F (10 to 40 degrees C)
Video Outputs4 Video Loop OutsPHYSICAL
1 Main MonitorDimensions343(W) x 59(H) x 223(D) mm
1 Call MonitorMECHANICAL
Audio Inputs1 audio inputCamera InputsBNC female
Audio Outputs1 audio outputCamera OutputsBNC female
Horizontal Resolution720 x 480 (NTSC)Monitor OutputBNC female
Display1, 4Audio InputRCA female
ZoomLive 2x ZoomAudio OutputRCA female
SequenceAvailableAlarm InputsDB-25 female
Screen QualityFull: 720 x 480 Active Pixels (NTSC)Alarm OutputsDB-25 female
1/4 Screen: 360 x 240 Active Pixels (NTSC)RS232/RS48515PIN DSUB
Record QualityCIF





Display Rate120 frame/second (4x30)
Recording Rate (Max)120, 60, 30, 15
Record QualityBest, High, Normal, Low
Compression TypeMPEG-4
Record ModeNormal, Schedule, Motion Detect, Alarm
Playback ModeDate/Time Search or Event Search
Operation ModeTriplex
Motion DetectArea Division: 16 x 12, on/off selectable
Motion Detect and Relay On Simultaneous
Motion Sensitivity4 adjustable variables
Pre-Alarm RecordingYes (8MB)
WatermarkYes
Key LockYes
Network SupportTCP/IP, PPPoE, DHCP, DDNS
Network FunctionInternet Explorer, Remote Client Software
Web CompressionMJPEG
Remote NotificationEmail images
Alarm4 Alarm Inputs / 1 Relay Output
Back-upNetwork
RS485PTZ (Pelco D)
StorageInternal 1 HDD (no size limitation)

[Click here for detailed Specification PDF]

[Click here for PDF Product Manual]

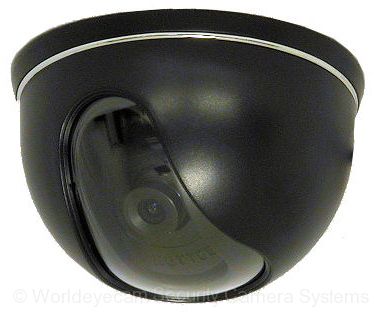

The WACD-25S is an entry level, professional, indoor, color dome camera providing a very clean surveillance installation.

The WACD-25S features a Sony Super HAD™ 420 line CCD sensor with an electronic iris, allowing automatic compensation for varying light levels. Excellent picture quality is assured with 420 TV lines resolution and 1.0 lux sensitivity.

With 2 plane mounting options, the WACD-25S can be mounted on the wall, ceiling, or angled surfaces. The WACD-25S can accommodate a variety of fixed lens sizes ranging from 2.1mm wide angle to 25mm telephoto. The camera can easily be positioned by rotating the base for horizontal positioning, while easily removing the cover to access the simple tilt mechanism. The non-intrusive, discreet housing is ideal for retail or public installs. Compact and simple design allows for a quick installation.

This professional Sony CCD dome camera provides stunning color surveillance with a very sharp picture. Proven performance, reliability, and discreet design makes the WACD-25S an excellent choice for any low profile install.

[Click here for Detailed Specifications]
    • SKU
      WG4-760-WACD-25S-KIT
    • Weight
      20 lbs
  • Manufacturer
    Sony, Ruijie
  • RUIJIE
    Yes
  • Keywords
    WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder, WG4-760, DVR, MPEG-4, Digital Video Recorder, Triplex
  • Description
    The WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder features MPEG-4 Compression, 4 Video Inputs, 1 Audio Input, Triplex, 120 Frames per Second, Internet Explorer Remote Access, Remote Setup, DDNS Support and more.
  • Monitor Output
    TV Video Output, VGA Output for Computer Monitor
  • Upgrade to WSTA-CDRW
    NO CDRW, Upgrade to WSTA-CDRW
  • Storage Space
    250GB (Included), 500GB
  • Cables
    2x100 feet, 2x25 feet, 2x50 feet, 2x75 feet, 2x150 feet, Bulk 500 feet spool, Bulk 1000 feet spool
