WG4-760 DVR / WACD-2500 Video Surveillance System
        • WG4-760 DVR / WACD-2500 Video Surveillance System
        • WG4-760 DVR / WACD-2500 Video Surveillance System

        WG4-760 DVR / WACD-2500 Video Surveillance System

        Sony
        SKU: WG4-760-4-WACD-2500-KIT

        The Company offers a complete line of Safety and Security, CCTV, access products. The Model is WG4-760 DVR / WACD-2500 Video Surveillance System. This camera features a high quality Sony 480 line CCD camera, 23x optical, 10x digital zoom module. Other features include a high speed 300°/sec pan, 120/sec tilt. This camera is also IP66 weatherproof rated, with an integrated heater/blower. The camera is featured by 128 User-Defined Presets. 6 Tour (auto cruise) Modes. Advanced OSD (On Screen Display). Auto/Manual Backlight Compensation. Color Day - B/W Night auto switching. Programmable White Balance. Auto Flip. 4 Alarm Inputs (Alarm Triggers Preset). Auto Home function (Preset or Tour Mode). Preset and Tour mode Naming. NTSC / PAL Switchable. 8" Compact Size. Aluminum Cast Structure IP66 Weatherproof rating. High Quality Sony 23X Optical Zoom, 10x Digital. High speed digital processing and SMEAR effect suppression.

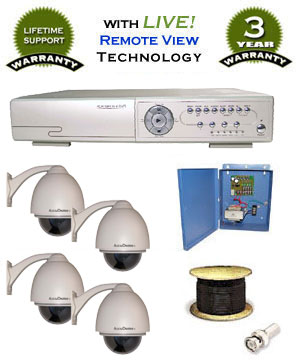

        This 4 Channel Video Package Includes:

        • (1) WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder (DVR)
        • (4) Sony WACD-2500 Pan Tilt Zoom Security Cameras
        • (1) 4 Camera 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
        • (4) 100' Video/Power Cables & Cable Connectors
          • 21% less
          Market price:$5999.00 save $1248.20
        • $4750.80

        OR



        The Company offers a complete line of Safety and Security, CCTV, access products. The Model is WG4-760 DVR / WACD-2500 Video Surveillance System. This camera features a high quality Sony 480 line CCD camera, 23x optical, 10x digital zoom module. Other features include a high speed 300°/sec pan, 120/sec tilt. This camera is also IP66 weatherproof rated, with an integrated heater/blower. The camera is featured by 128 User-Defined Presets. 6 Tour (auto cruise) Modes. Advanced OSD (On Screen Display). Auto/Manual Backlight Compensation. Color Day - B/W Night auto switching. Programmable White Balance. Auto Flip. 4 Alarm Inputs (Alarm Triggers Preset). Auto Home function (Preset or Tour Mode). Preset and Tour mode Naming. NTSC / PAL Switchable. 8" Compact Size. Aluminum Cast Structure IP66 Weatherproof rating. High Quality Sony 23X Optical Zoom, 10x Digital. High speed digital processing and SMEAR effect suppression. Compatible with our DVMR's and Geovision DVR Cards and Systems. Built-in heater/blower assembly facilitates harsh winter environments. Modular Design makes installations and repairs more efficient. Multi-protocol support. Smooth, quiet operation. High resolution, clear image, even at 23x zoom. 24V AC power supply included. The DVR is featured by MPEG-4 Compression. 4 Video Inputs, 1 Audio Input. Triplex. 120 Frames per Second. Internet Explorer Remote Access. Remote Setup. DDNS Support. RS485 PTZ Support. Video Loop Out. Intuitive On-Screen Menu Programming. Digital Motion Detection. Must be a reseller of this product as the company is a leading global provider of power and transmission technologies for professional security system applications.

        This 4 Channel Video Package Includes:

        • (1) WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder
        • (4) Sony WACD-2500 Pan Tilt Zoom Security Cameras
        • (1) 4 Camera 12VDC Fully-Regulated, Distributed, Power Supply UL APPROVED
        • (4) 100' Video/Power Cables & Cable Connectors





        CAMERA DETAILS:

        This camera features a high quality Sony 480 line CCD camera, 23x optical, 10x digital zoom module. Other features include a high speed 300°/sec pan, 120/sec tilt. This camera is also IP66 weatherproof rated, with an integrated heater/blower.

        *Wall and pendant mount included

        [Click here for PDF Brochure]

        Features:

        • 128 User-Defined Presets
        • 6 Tour (auto cruise) Modes
        • Advanced OSD (On Screen Display)
        • Auto/Manual Backlight Compensation
        • Color Day - B/W Night auto switching
        • Programmable White Balance
        • Auto Flip
        • 4 Alarm Inputs (Alarm Triggers Preset)
        • Auto Home function (Preset or Tour Mode)
        • Preset and Tour mode Naming
        • NTSC / PAL Switchable
        • 8" Compact Size
        • Aluminum Cast Structure IP66 Weatherproof rating
        • High Quality Sony 23X Optical Zoom, 10x Digital
        • High speed digital processing and SMEAR effect suppression
        • Compatible with our DVMR's and Geovision DVR Cards and Systems
        • Built-in heater/blower assembly facilitates harsh winter environments
        • Modular Design makes installations and repairs more efficient
        • Multi-protocol support
        • Smooth, quiet operation
        • High resolution, clear image, even at 23x zoom
        • 24V AC power supply included
        [Click here for PDF Brochure]
        DVR DETAILS:
        4 Camera Inputs, 1 Channel Audio, MPEG-4, Triplex, 120 FPS

        The WG4-760 digital video recorder is a versatile and intuitive entry level recorder featuring simple setup and MPEG-4 compression.

        The WG4-760 can record video from as many as 4 cameras, in addition to 1 channel of audio.  The triplex feature allows simultaneous record, playback, and network functions, ensuring constant surveillance.  Built-in digital motion detection eliminates the need for external motion hardware and sensitivity levels, along with masking areas are fully customizable.  The simple OSD ensures a quick setup and easy user operation.

        Complete video backup can be performed via the network client software.  In addition to video backup, the client software provides off-site PC recording.

        Remote viewing, setup, and playback on the WG4-760 are available via Internet Explorer or the client software included with the unit.  Video can easily be converted to the standard .AVI format for backup and review in standard media players.

        The WG4-760 also features advanced remote network options including true DDNS for dynamic IPs and email alerts.

        A 160GB hard drive generally allows continuous recording of up to 2 weeks under the most common recording conditions.  However, recording time will vary depending on quality and recording rate.  When all available hard drive space is consumed, the WG4-760 automatically begins recording over the oldest video.

        The WG4-760 provides for more than a simple VCR replacement.  It features above standard specifications with simple setup, simple operation and reliability.
        PRODUCT FEATURES
        • MPEG-4 Compression
        • 4 Video Inputs, 1 Audio Input
        • Triplex
        • 120 Frames per Second
        • Internet Explorer Remote Access
        • Remote Setup
        • DDNS Support
        • RS485 PTZ Support
        • Video Loop Out
        • Intuitive On-Screen Menu Programming
        • Digital Motion Detection

        WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder

        Demo Site: <click here>

        Username: admin
        Password: admin

        DVR SPECIFICATIONS
        GENERALENVIRONMENTAL
        Video Inputs4 inputs, 1.0Vp-p, 75 ohm unbalancedOperating Temperature50 to 104 degrees F (10 to 40 degrees C)
        Video Outputs4 Video Loop OutsPHYSICAL
        1 Main MonitorDimensions343(W) x 59(H) x 223(D) mm
        1 Call MonitorMECHANICAL
        Audio Inputs1 audio inputCamera InputsBNC female
        Audio Outputs1 audio outputCamera OutputsBNC female
        Horizontal Resolution720 x 480 (NTSC)Monitor OutputBNC female
        Display1, 4Audio InputRCA female
        ZoomLive 2x ZoomAudio OutputRCA female
        SequenceAvailableAlarm InputsDB-25 female
        Screen QualityFull: 720 x 480 Active Pixels (NTSC)Alarm OutputsDB-25 female
        1/4 Screen: 360 x 240 Active Pixels (NTSC)RS232/RS48515PIN DSUB
        Record QualityCIF





        Display Rate120 frame/second (4x30)
        Recording Rate (Max)120, 60, 30, 15
        Record QualityBest, High, Normal, Low
        Compression TypeMPEG-4
        Record ModeNormal, Schedule, Motion Detect, Alarm
        Playback ModeDate/Time Search or Event Search
        Operation ModeTriplex
        Motion DetectArea Division: 16 x 12, on/off selectable
        Motion Detect and Relay On Simultaneous
        Motion Sensitivity4 adjustable variables
        Pre-Alarm RecordingYes (8MB)
        WatermarkYes
        Key LockYes
        Network SupportTCP/IP, PPPoE, DHCP, DDNS
        Network FunctionInternet Explorer, Remote Client Software
        Web CompressionMJPEG
        Remote NotificationEmail images
        Alarm4 Alarm Inputs / 1 Relay Output
        Back-upNetwork
        RS485PTZ (Pelco D)
        StorageInternal 1 HDD (no size limitation)

        [Click here for detailed Specification PDF]

        [Click here for PDF Product Manual]
          • SKU
            WG4-760-4-WACD-2500-KIT
          • Weight
            45 lbs
        • Manufacturer
          Sony, Ruijie
        • RUIJIE
          Yes
        • Keywords
          WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder, SA-DVR-WG4-760-4-WACD-2500-KIT, surveillance system, video surveillance software, nanny cam, dome camera, pc surveillance, security surveillance, lcd cctv monitor, audio surveillance equipment,
        • Description
          The WG4-760 DVR / WACD-2500 Video Surveillance System includes a WG4-760 4 Channel MPEG-4 Value Series Digital Video Recorder, 4 Sony WACD-2500 Pan Tilt Zoom Security Cameras and video & power cables.
        • Monitor Output
          Standard Video Output, VGA Output for Monitor
        • Upgrade to WSTA-CDRW
          NO CDRW, Upgrade to WSTA-CDRW
        • Optional Monitor
          I will use my own Monitor, 17 inch LCD Viewsonic Monitor
        • Power Supply Connection
          EASY Plug/Play Power Adapters, Distributed Power Box
        • Storage Space
          250GB (Included), 500GB
        • Cables
          4x100 feet, 4x25 feet, 4x50 feet, 4x75 feet, 4x150 feet, Bulk 500 feet spool, Bulk 1000 feet spool
        • Extended Warranty
          1 Year Warranty Included, 2 Year Extended Warranty, 3 Year Extended Warranty
