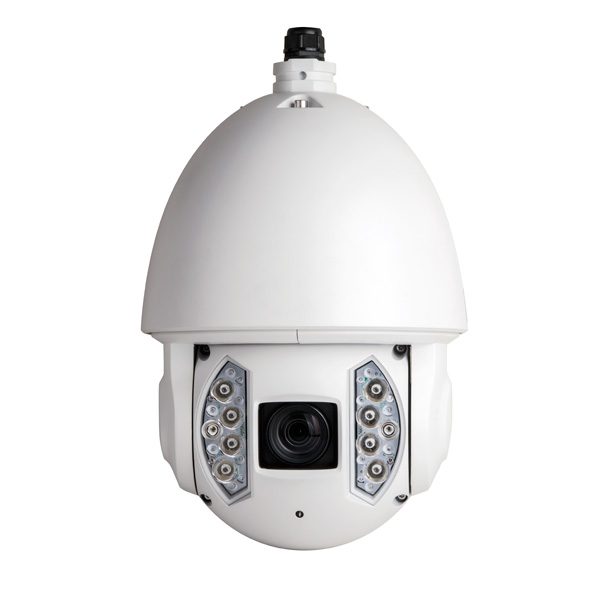

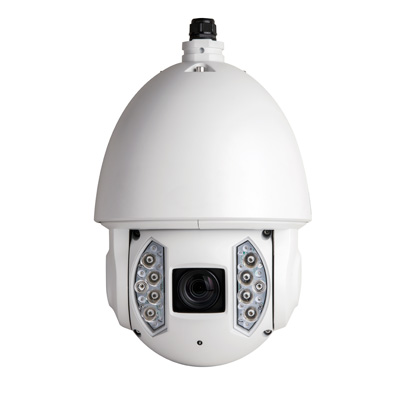

WECIPTZ-STLTSD 2Mp Full HD 30x WDR Star Light Network IR PTZ Dome Camera


$2,800.00


Availability: In Stock
Ships Same Day
List Price: $3,200.00
SKU: WECIPTZ-STLTSD
Product #: 86151
Manufacturer: iMaxCamPro
Camera Resolution: 1920 x 1080

Camera Mount:
Remote Login Support:
Quantity

\

Product Features

  • Powerful 30x optical zoom
  • Ultra-low light star-light camera
  • H.264 & MJPEG triple-stream encoding
  • Max 30fps@1080P & 60fps@720P
  • Defog, WDR, EIS, ROI, Day/Night(ICR), DNR (2D & 3D), Auto iris, Auto focus, AWB, AGC,BLC
  • Auto-tracking and IVS
  • Multiple network monitoring: Web viewer, CMS(PSS) & iMaxCam
  • Max 240°/s pan speed, 360° endless pan rotation
  • Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
  • Built-in 7/2 alarm in/out
  • Support intelligent 3D positioning with DH-SD protocol
  • Micro SD memory, IP67, IK10, Hi-PoE
  • IR Distance up to 656ft

SPECIFICATIONS
Model WECIPTZ-STLTSD
Image Sensor 1/1.9"CMOS
Effective Pixels 1920(H) x 1080(V) (2 Megapixels)
Scanning System Progressive
Electronic Shutter Speed 1/1~1/30,000s
Min. Illumination Color: 0.005Lux/F1.6, B/W: 0.0005Lux/F1.6
S/N Ratio More than 56dB
Video Output BNC(1.0Vp-p/75Ω), PAL / NTSC
Camera Features
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC / HLC / DWDR
White Balance Auto, ATW, Indoor, Outdoor, Manual
Gain Control Auto/Manual
Noise Reduction Ultra DNR (2D/3D)
Privacy Masking Up to 24 areas
Digital Zoom 16x
EIS Support
Defog Support
Lens
Focal Length 6mm~180mm (30x Optical zoom)
Max. Aperture F1.6 ~ F4.8
Focus Control Auto/Manual
Angle of View Horizontal: 61.2° ~ 2.32°
Close Focus Distance 100mm ~ 1000mm
PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~240° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Preset 300
PTZ Mode 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal length/ speed adaptation
Power Up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period
Time Task Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time
Protocol DH-SD, Pelco-P/D (Auto recognition)
Video
Compression H.264 / MJPEG
Resolution 1080P(1920×1080) / 720P(1280×720) / D1(704×576/704×480) / CIF (352×288/352×240)
Frame Rate Main Stream 1080P (1 ~ 25/30fps) / 720P(1 ~ 50/60fps)
Frame Rate Sub Stream 1 D1/CIF(1 ~ 25/30fps)
Frame Rate Sub Stream 2 720P/D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 10240Kbps
Audio
Compression G.711a / G.711u(32kbps)/ PCM(128kbps)
Interface 1/1 channel In/Out
Intelligent Function
Auto Tracking Single-scene, multiple-scene, panorama-scene
IVS (Optional) Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving and etc.
Tracking Trigger Mode Manual / Auto (alarm triggered)
Tracking Trigger Event Targeting, Zoom, Tracking, Recording, Snapshot, Alarm and etc.
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Compatibility ONVIF, PSIA, CGI
Max. User Access 20 users
Smart Phone iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot Micro SD, Max 64GB
RS485 1
Alarm 2/1 channel In/Out
General
Power Supply AC24V/3A(±25%), Hi-POE
Power Consumption 20W, 43W (IR on, Heater on)
Working Environment -40°F ~ +158°F (-40°C ~ +70°C), Less than 90%RH
Ingress Protection IP67/IK10

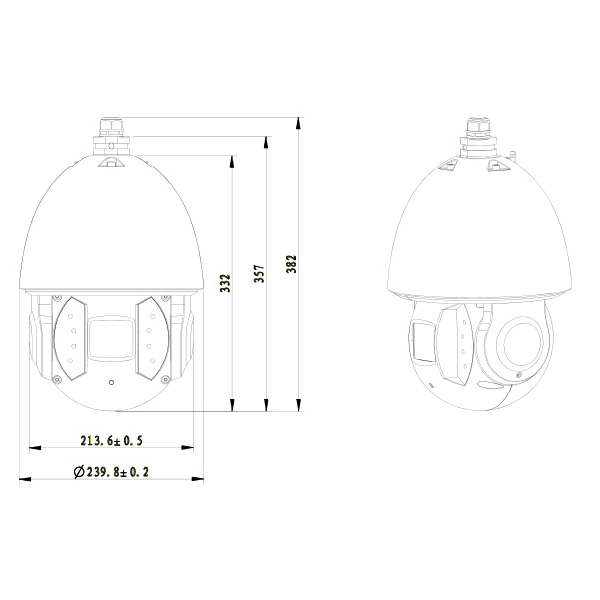

Dimensions Φ9.45"(240mm) x 15.04" (382mm)
Weight 14.89 lbs

Average Customer Rating:


1 Most useful customer reviews
Paul Evans
Jun 18, 2015
This customer purchased the item at our site.
The display of this security camera is what struck me as really modern and hi-tech. Even the shape of the camera is unique. I bought this camera when it cost around $3000 and after a week of using it, I came to write the review there was a huge 34% discount. *Face palm*!

Anyway, the optical and digital zooms contribute a lot to the camera’s high 5 star ratings. I have not seen the smartphone feature in all the other security cameras I bought so it really came as a surprise to me. I make a habit of always checking the intelligent function feature in the security cameras I buy and the many list of functions on this one triggered me to impulsively purchase it without thinking twice. Furthermore the angel of view is amazing and it tapes everything from the farther corner of my yard till my front gate. Awesome security camera; I wish I could give it 10 stars but for not it deserves 5/5 stars.
Loading...Was the above review useful to you? Yes (0) / No (0)

Mobile APPs


QR Code Scan P2P iPhone Android iOS instructions

How to enable remote viewing without Port-Forwarding

We offer our own WorldEyeCam mobile apps for iPhone, iPad, Android phones and tablets. Our mobile apps allow you to remotely view your DVR and cameras from anywhere on the world. In this guide we will show you how to setup P2P or QR Code Scanning setup. No Port-Forwarding Needed.


Easy remote Viewing
P2P/QR Code Easy Setup


To access the P2P or QR code screen, you must first power on your recorder. Right click and select Main Menu->Setup->Network->P2P and the P2P/QR code will display.


You must check the box to enable P2P function and then click Apply to save at bottom of screen.




Make sure that your NVR/DVR is connected to your modem/router with a CAT5/Ethernet cable. Once P2P has been enabled please go to TCP/IP section inside of the network screen. Enable “DHCP” inside of the Network settings and save. Once DHCP has been enabled you will need to reboot the system.



Upon rebooting navigate back to the P2P setting to the system and scan the code with your mobile iMaxCam app and from this point you should be able to see the cameras.





How to setup the iPhone app with the P2P/QR Code

Step 1: Open the iMaxCam app and tap on Camera.

Step 2: Tap the menu icon on the top left corner to access the menu as shown in the picture.

Step 3: Tap the DEVICE MANAGER option to enter your DVR/NVR login information

Step 4: Once in device manager tap the plus sign button (+), in the top right corner to advance to the next screen.

Step 5: In the add device screen, select P2P

Step 6: In this Screen you need to tap the QR code icon on the right where the S/N field is.

Once you tap on QR Code icon the camera of your phone will start, go ahead and scan the code.

Name: DVR

S/N: Tap on the icon to scan the QR Code

User Name: admin (default)

Password: admin (default)

Step 7: Press the “Start Live Preview” button to start watching the cameras.

Viewing the live camera feed from your Integrator Series Network Video Recorder, or NVR, through a mobile device is simple, and can be done in less than five minutes. If you have used our G4MX App you will find it’s very similar, but if you haven’t, that’s okay too. As in the tutorial for iMaxCam, In this short tutorial we’ll be showing you how to setup your live security camera feed on your mobile device via the peer-to-peer, or P2P method, using a QR Code Scanning setup. Think of it as allowing your camera server and your mobile device to meet up and communicate together in the cloud, just by using a bar code your device can read. No Port-Forwarding or IT specialists needed. On your NVR, rick click to login to the main menu. Then select “System”, then “Network”, then click the box marked “Enable DHCP”. This should allow all the forms to be automatic when you connect your device. If you would rather set your IP address manually, you can do that as well. Just leave the “Enable DHCP” box unchecked and you will be given an opportunity to set your IP address yourself. In the setting page you’ll see the QR code. Leave that up on your screen, because you will need to scan it with your mobile momentarily. On your mobile device, download the “EZView” App from your preferred app store. Once downloaded, go ahead and open “EZView”. Select the main menu icon in the top left hand corner. Then select “Devices”. This is where you can add new devices and manage existing ones. Now that you have your device page open, you will need to add a new device. To do this, select the “+“ in the top right corner. Select “Add By P2P” to change the registration mode. Be sure to name your device (any name that works for you), then tap on the QR code icon to scan the QR code displayed on your monitor. Once you’ve done this, all of the information for your NVR should appear on your mobile, with exception of your user name and password. Go ahead and enter your login details there if prompted. After Inputting the information above select “Start Live View” at the bottom of the page to complete the setup and begin viewing your camera’s live feed! If you have any other issues or need further assistance, don’t hesitate to contact us via phone, email, or live chat. We’re here to help you. Because at World Eye Cam, we’re not just about security cameras. We want you to feel secure.
*}
